Chicken Manure Compost Turner Machine , WF-FD2000-30 Ground Turning Machines

Chicken Manure Compost Turner Machine , WF-FD2000-30 Ground Turning Machines photo-1
Chicken Manure Compost Turner Machine , WF-FD2000-30 Ground Turning Machines photo-2
Chicken Manure Compost Turner Machine , WF-FD2000-30 Ground Turning Machines photo-3
US$ 9,600 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Application:
Compost Turner
Production Capacity:
250-300m³/h
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Application Compost Turner
Production Capacity 250-300m³/h
Place of Origin Henan, China
Brand Name WANFENG
Model Number WFFD2000-30, FD2000-30
Voltage 220V/380V
Power(W) 44kw
Weight 4500kg
Dimension(L*W*H) 2350*3250*2200mm
Features 4 Wheel Driving, self-propelled
Condition New
Certification ISO9001:2008
Warranty 12 Months
After-sales Service Provided Overseas third-party support available
Product Description

.

WF-FD2000-30 floor-turning machines, based on animal manure, sludge, vinasse, furfural residue and other viscous materials, the use of windrow composting fermentation process, the production of organic fertilizer were turning specialized machinery. The machine not only for the material evenly turning, rope heap, but also on the group in the post-fermentation fertilizer caking effectively loose plate, it is harmless disposal and composting operations manure and other essential equipment.

The ground self-turning machines we designed according to the principles of aerobic fermentation, the fermentation bacteria have a fully functional space. Its machinery and equipment with less investment, low energy consumption, as fertilizer, large output of obvious advantages, saving civil engineering and a lot of manpower and resources.

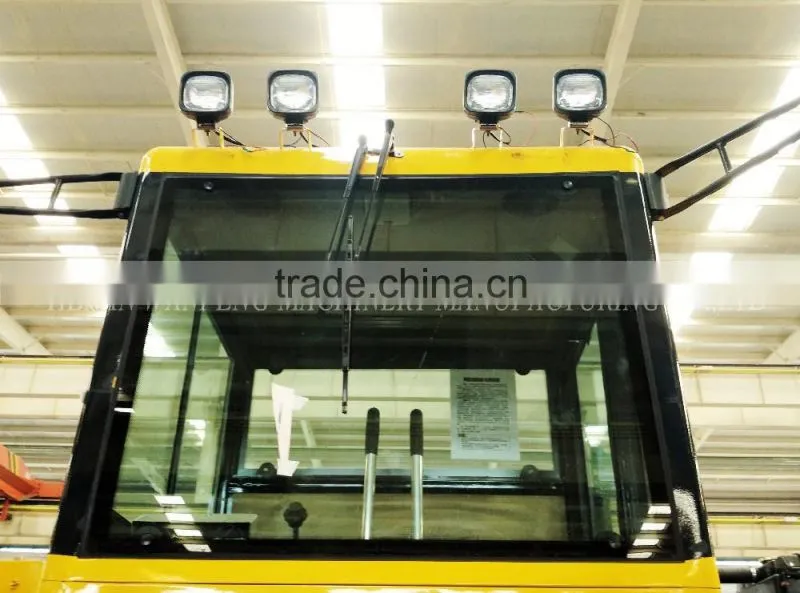

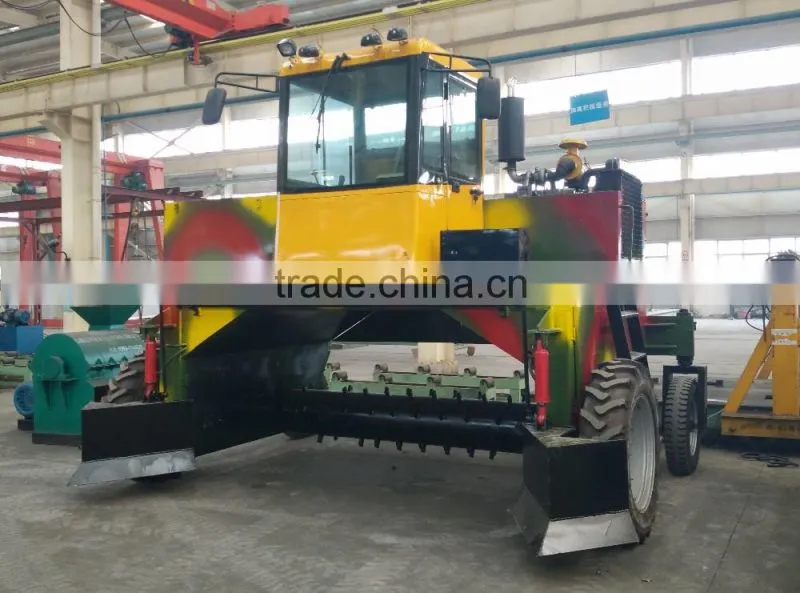

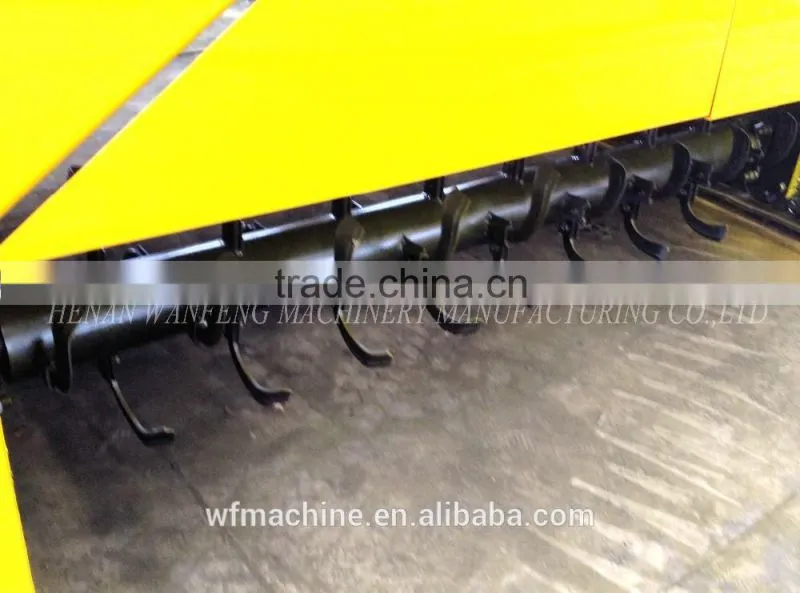

The aircraft take-wheel walking design, forward, backward, moving the vehicle rides on a pre-stacked elongated fertilizer group, by the auger mixing blade chassis base for fertilizer raw implement turner, fluffy, shift heap, after the car had to compile a new strip stack heap. The machine can be in the open outdoor open space, can also be implemented in the workshop shed jobs. WF-FD2000-30 floor-turning machine affordable, generally configured with canopy, can also be customized according to customer demand configuration cab.

Main Technique Data
Turning width
2000mm
Maximum speed
2200r/min
Turning height
0.6-0.8m
Working speed
7.58m/min
Deposits spacing
0.5-0.8m
Driving speed
50m/min Three forward gears and one reverse gear
Power (electric start)
30 horsepower, water-cooled
Maximum processing capacity
330 m3 / h
Processing Capacity Calculation
7.58m (speed) × 60 (time) × 2.0m (width) × 0.7m (high) ÷ 2 = 318 square / time
Specific

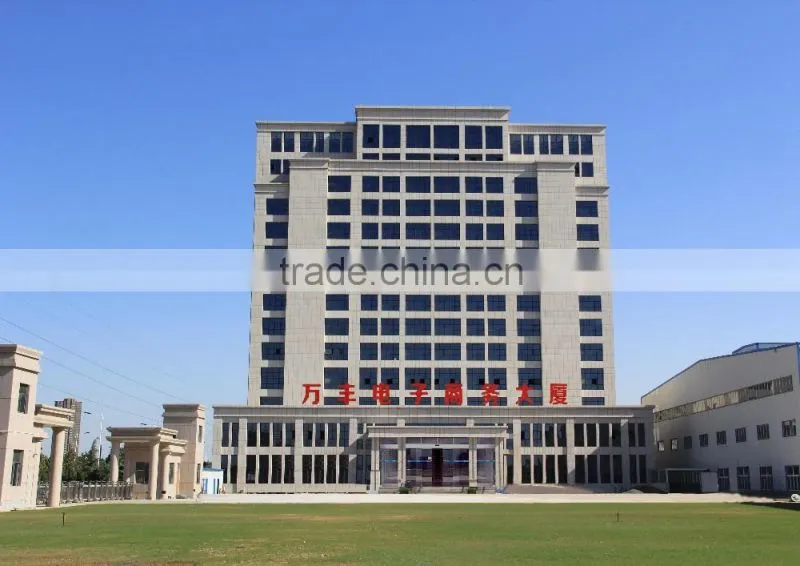

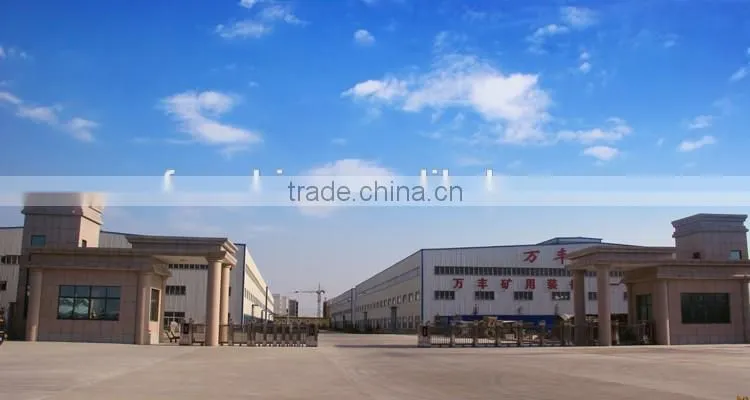

Henan Wanfeng Machinery Manufacturing Co., Itd.


 we was registered capital of 180 million yuan.

It is located in Henan Hebi city demonstration area of urban and rural integration,and it is devoted to the development of ecological agriculture, improving the ecological environment, protecting human health as the first goal, organic fertilizer equipment research and development, production, sales, application, promotion and technical services in one of the high-tech enterprises.
