Organic compound fertilizer dryer machine for farm

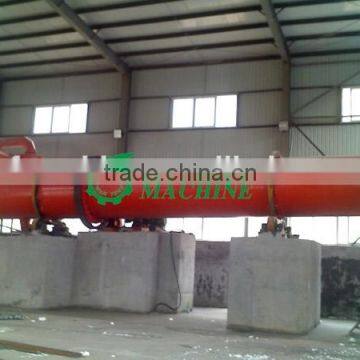

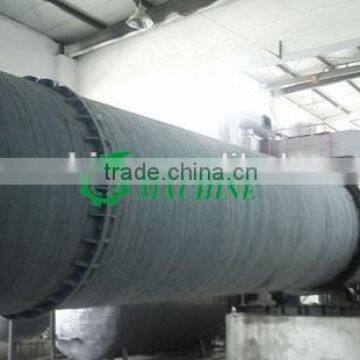

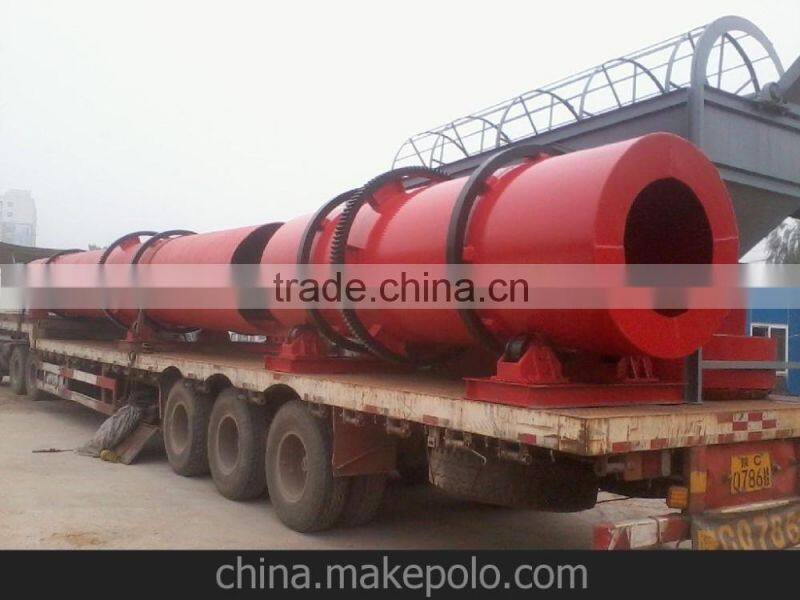

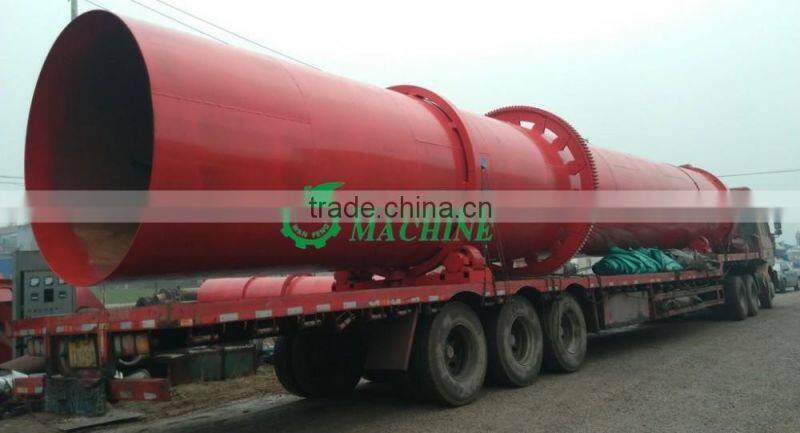

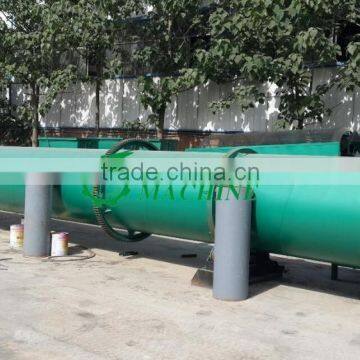

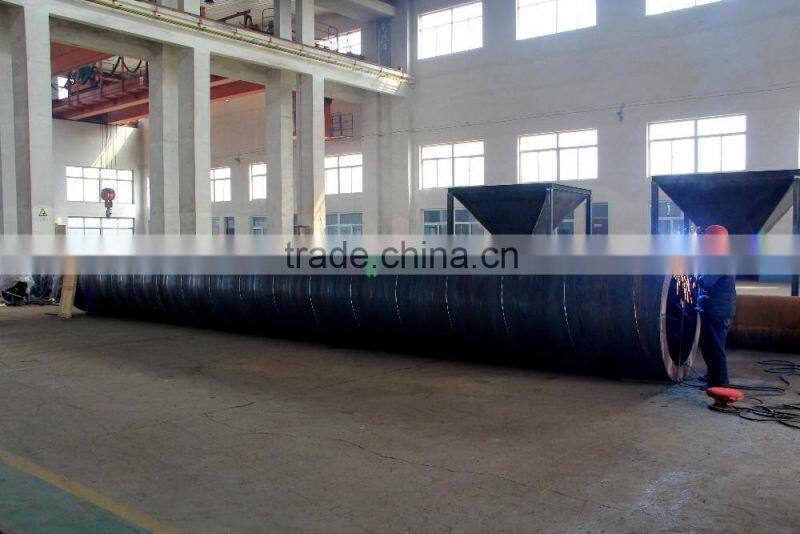

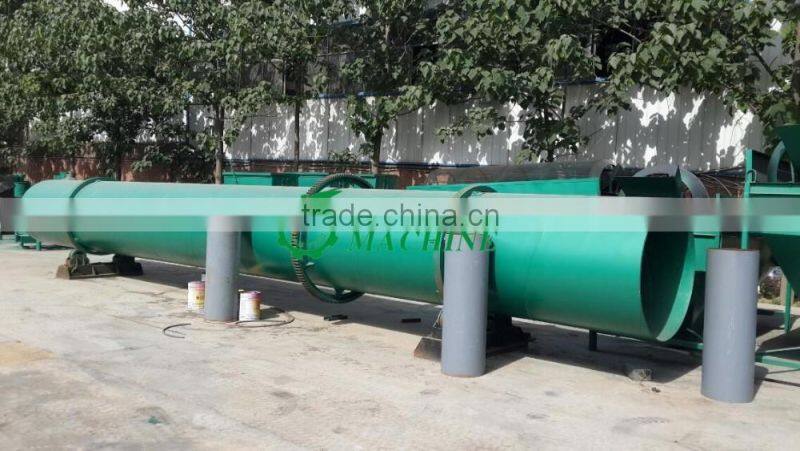

Fertilizer Rotary Drying Machine Description
The rotary fertilizer drying machine is mainly used for drying compound fertilizers with a certain humidity and particle size. Besides, drying other powder and granular materials is also available. With the unique advantages of high yield and reliable operation,rotary drum drying machine is the ideal equipment for mass compound fertilizers production.
Good Drying Effects of Rotary Fertilizer Drying Machine
Rotary drum fertilizer drying machine has the ideal drying effects for fertilizer particles. After drying, fertilizer particles are of high strength and good for storage.
* For compound fertilizer: After drying, the moisture content will be reduced to 2%-5% from 20%-30%.
* For bio-organic-fertilizer, The moisture content reducing range is from 40%-10%.
Rotary Drum Fertilizer Drying Machine Features

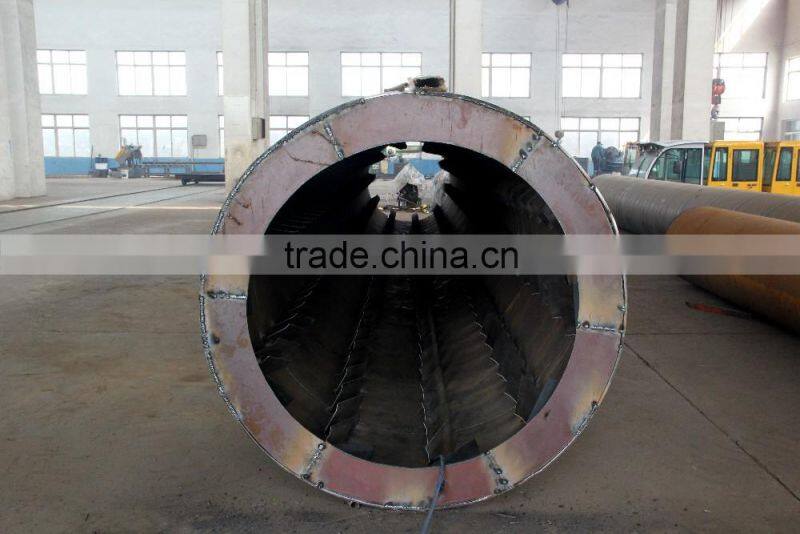

* Rational distribution and design of the lifting plate ensures high utilization rate of heat energy.
* Wide application range, our rotary drum drying machine has a strong adaptability of materials and can be used to dry various materials.
* The hot air passes through the rotary drum body with small resistance, thus has low energy consumption.
* Continuous and reliable operation, large capacity.
* Less fault, convenient maintenance and low repair cost, long service life.
* Realizing mechanization and automation operation with good drying effect.
The characteristics of rotary dryer
- The machine's design is reasonable, have reliable performance, high efficiency , dry and heat uniform, maintenance convenient.

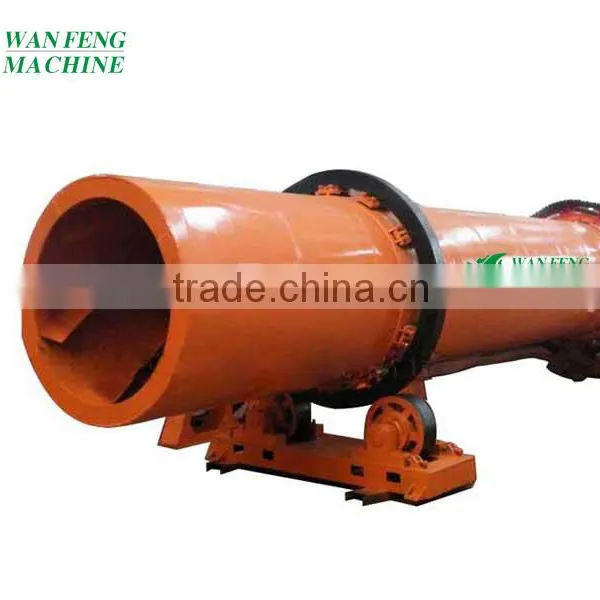

- Equipment adopts self-aligning type tug structure, the tug and with good tire-roller, greatly reduces the wear and tear of power consumption.
- Resistance to overload ability, cylinder smooth operation and high reliability.
- Drying machine has the characteristics of high temperature resistant, high temperature hot air can be used for a rapid drying of material.
- Drum dryer processing capacity, fuel consumption, dry low cost less.
Rotary Drum Fertilizer Drying Machine Working Principle

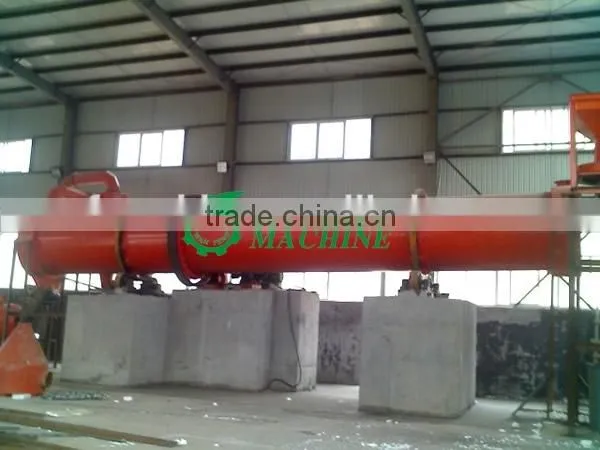

Rotary drum drying machine adopts slightly tilted drum which can be rotated. The wet materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator from the higher side, and well-dried materials are collected from the other lower side, and hot air enters the drum from the feeding side or discharging side according to user needs.
Rotary Drum Fertilizer Drying Machine Working Principle
Model |
ZG12120 |
ZG15120 |
ZG15150 |
ZG18150 |
ZG20200 |
ZG22220 |
Drum diameter |
1200mm |
1500mm |
1500mm |
1800mm |
2000mm |
2200mm |
Drum length |
12000mm |
15000mm |
15000mm |
15000mm |
20000mm |
20000mm |
Inclination |
2-5 ° |
2-5 ° |
2-5 ° |
2-5 ° |
2-5 ° |
2-5 ° |
Rotary speed |
4.7rpm |
5rpm |
5rpm |
3.9rpm |
3.9rpm |
3.2rpm |
Processing Capacity |
2-2.5T/H |
4-6T/H |
5-7T/H |
7-10T/H |
8-14T/H |
12-16T/H |
Inlet temperature |
150-250° |
150-250° |
150-250° |
150-250° |
150-250° |
150-250° |
Outlet temperature |
60-80° |
60-80° |
60-80° |
60-80° |
60-80° |
60-80° |
Motor model |
Y-160M-4 |
Y-180L-6 |
Y-180L-6 |
Y-200L1-6 |
Y-200L2-6 |
Y-250M-6 |
Motor Power |
7.5-11KW |
11-15KW |
15KW |
18.5KW |
22KW |
37KW |
Rotary Speed of Motor |
1460rpm |
970rpm |
970rpm |
970rpm |
970rpm |
970rpm |
Reducer Model |
ZQ500 |
ZQ650 |
ZQ650 |
ZQ750 |
ZQ850 |
ZQ1000 |
-

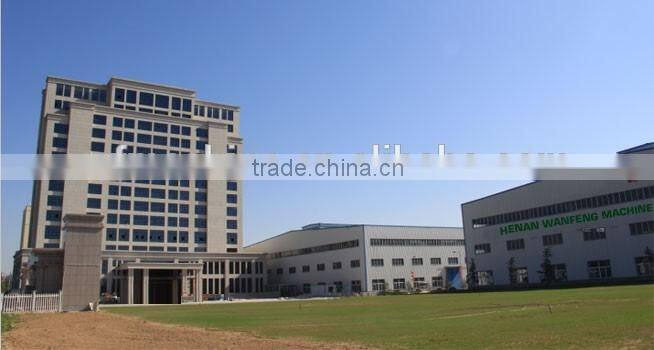

Henan Wanfeng Machinery Manufacturing Co., Ltd was registered capital of 50 million yuan.
It is located in Henan Hebi city demonstration area of urban and rural integration,and it is devoted to the development of ecological agriculture, improving the ecological environment, protecting human health as the first goal, organic fertilizer equipment research and development, production, sales, application, promotion and technical services in one of the high-tech enterprises. The Company has products that suitable for organic fertilizer and biological organic fertilizer production, such as fermentation equipment,screen system, batching system, granulation, drying equipment cooling equipment such as a full set of machinery,relying on the well-known experts years of research and practice who come from the Chinese academy of agricultural sciences, China agricultural university and other colleges and universities.The company is the domestic research and development production of organic fertilizer production equipment and a complete set of production line of the rapid growth of the enterprise,and the organic fertilizer plant construction to provide the best overall design scheme of enterprise.
