DUGOOD HDAP-01 High-fidelity Digital Audio File Player

DUGOOD HDAP-01 High-fidelity Digital Audio File Player thumbnail-1
DUGOOD HDAP-01 High-fidelity Digital Audio File Player photo-1
US$ 258 - 287 MOQ: 5 Units
Key Specifications
Get Latest Price
Brand Name:
Dugood
Model Number:
HDAP-01
Screen Size:
> 4"
Contact Supplier Request Quote Chat Now
Shenzhen Longruixiang Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Dugood
Model Number HDAP-01
Built-in Speaker Yes
Color Other, Silver, Silver
Place of Origin Guangdong, China

Specifications

1.Support U disk, SD card
2.with USB-PC interface
3.OSD supports Simplified Traditional Chinese,English
4.ultra Low Jitter

  DUGOOD HDAP-01 high-fidelity digital audio file player

 Features:



Support U disk, SD card, hard disk player, hard disk partition.
Audio formats supported: wav (up to 24bit/192KHz), ape (with cue), flac, mp3, wma, aac, alac, ogg.
With USB-PC interface, you can copy the program directly to the built-in hard drive.
OSD supports Simplified Chinese, Traditional Chinese, English.
Have coaxial digital output, stereo audio output.



Design Features



Real 24bit digital audio processing core, up to 192K samples.
Ultra Low Jitter to provide high-quality sound guaranteed.
Audio decoder used with 120db dynamic range, 24bit/192K of AK4394VF.

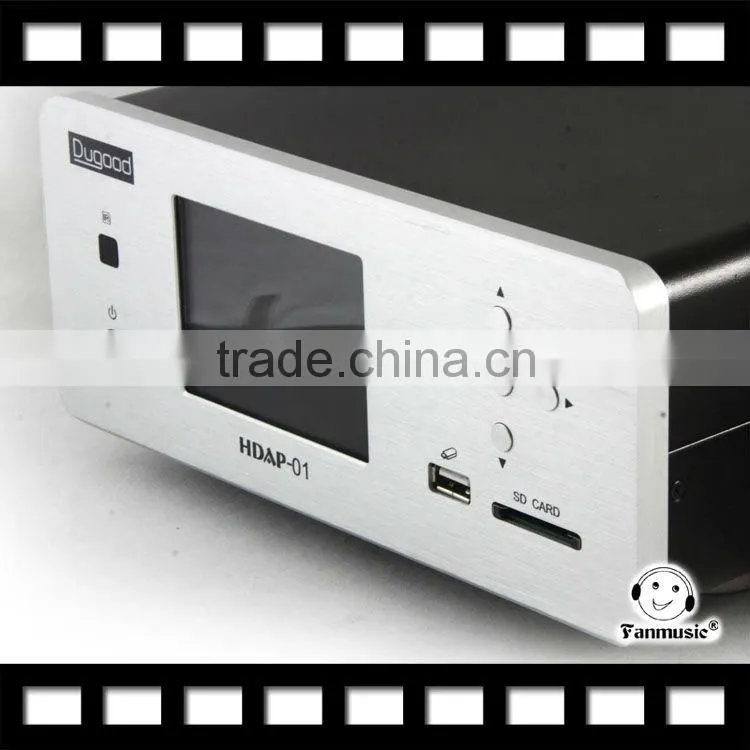

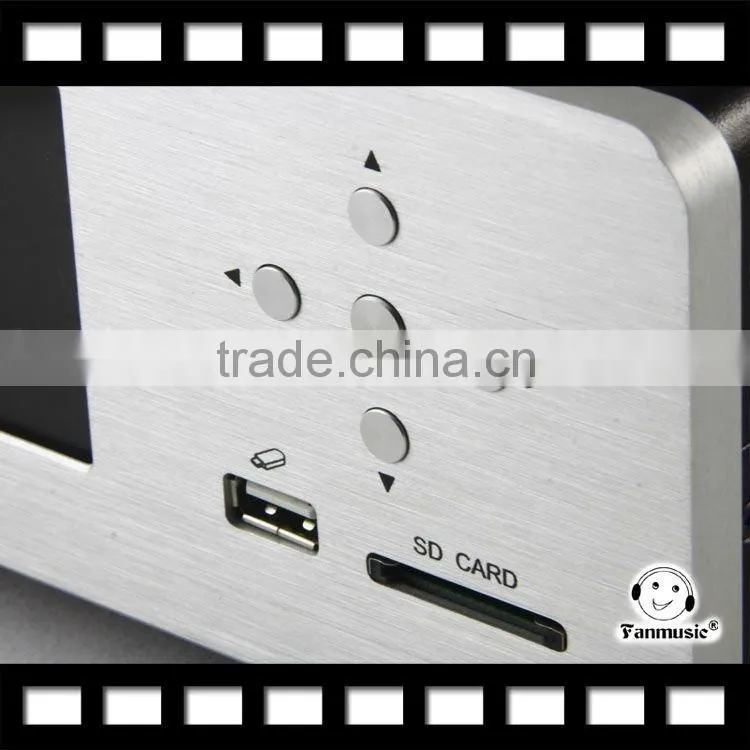

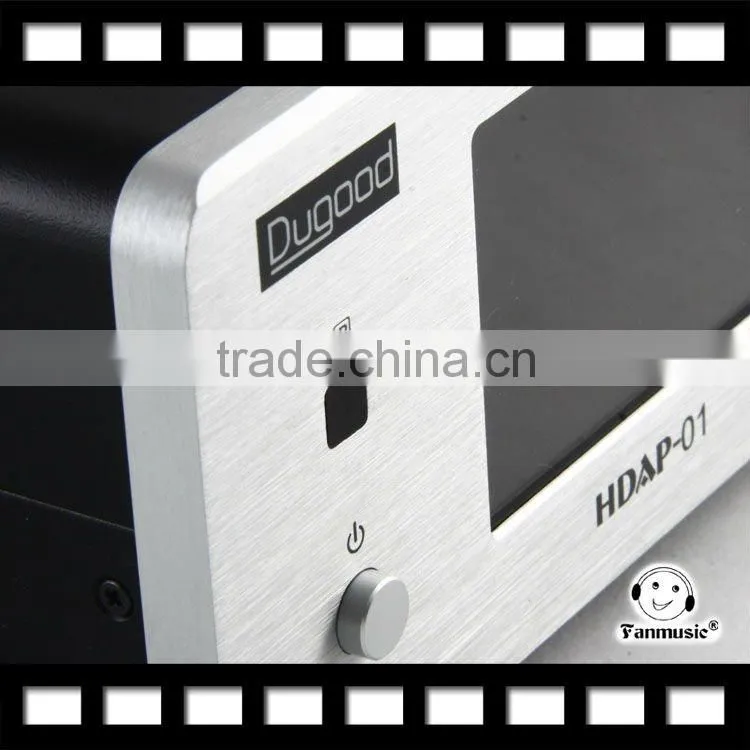

HDAP-01 panel diagram

  1 power switch.



 (2) Infrared remote control receiver port, be careful not to block, so as not to affect the remote receiver.



 3 display.



 4 function operation buttons: up / on a down / down one, left / returned to the



   Right, middle button is the OK button.



 5.USB jack for connecting U disk, mobile hard drives and other storage media.



 6. SD card slot.

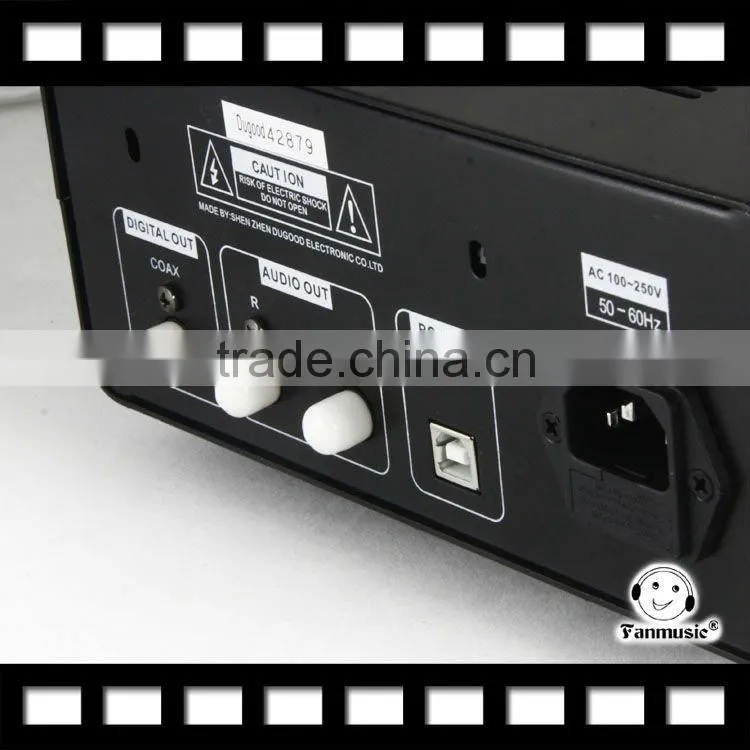

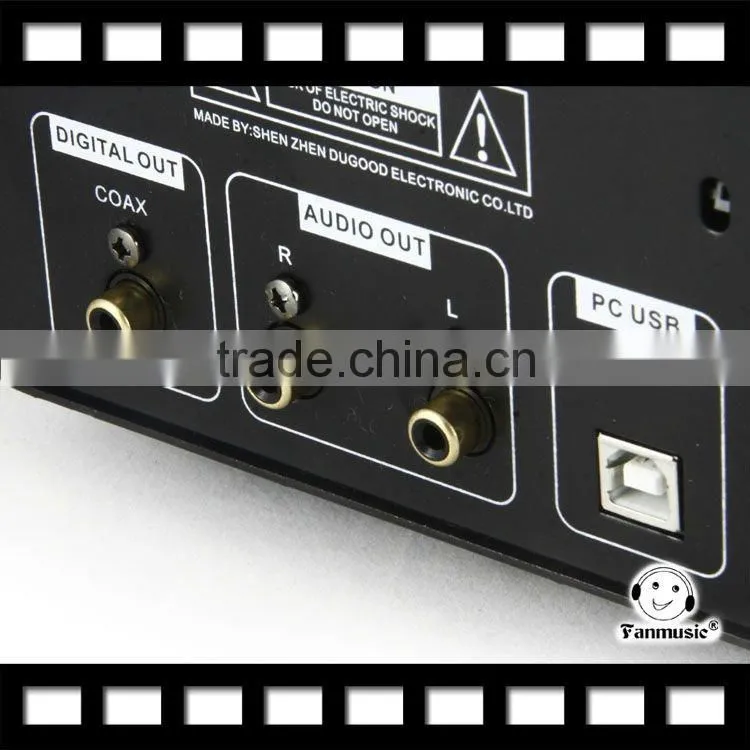

HDAP-01 backplane schematic

1 coaxial digital audio output for connecting external audio decoder.



(2) Right (R) analog audio RCA output.



3 left (L) channel RCA analog audio output.



4 connected to a computer USB port: For copy, modify programs with the computer USB port to



  Connection.



5. AC 220V power input socket.

Illustrates the remote control

 1. Mute button: Disable sound output and open the sound output.



2. Playback mode: Repeat All / Repeat / Shuffle / order of play / single



  Play.



3 direct selections buttons.



4 Back button: Returns to the previous menu or list of operations.



5 up / on a down / down one. To the left / back, right, middle button is the OK button.



6 Stop button: press this key during playback will stop playback and return to the track directory.



7 Play / Pause button: press this key player is suspended, then continued playing.
8 volume control buttons.



9. On the one, the next one.



10 fast forward, rewind button (click on a multiple of 2, double-click a multiple of 4, 8 by three times



   Multiples of 16 multiples by looked).



11 Set Menu (click to enter the setup interface, click to exit the setup screen).



Remote Control Precautions:



Aim the remote control sensor on the player area, at 7 meters, 30-degree range of operation.



Do not host in the remote and remote sensor is placed between the obstacles.



Do not mix old and new batteries.



Do not drop the remote control from a height.



Do not place the remote control in wet or high temperature.



Do not disassemble the remote control.



Long-term when not in use, remove the batteries.




Technical Parameters:



 Harmonic Distortion: 0.005%


Signal to noise ratio: 105dB

Dynamic Range: 110dB

Size: W 215mm * 110mm * 310mm

Net weight: 5 kg



Packages:

A DUGOOD  HDAP-01 UNIT



A Power cord,usb cable,RCA audio cable



A Remote control



4 batteries a couple(air battery removed)



A Manual
