DUGOOD HDAP-02 high-fidelity digital audio file player

Specifications

1.high-capacity SATA hard disk
2.U disk and an external SD card
2.file management and search capabilities
3.perfect quality

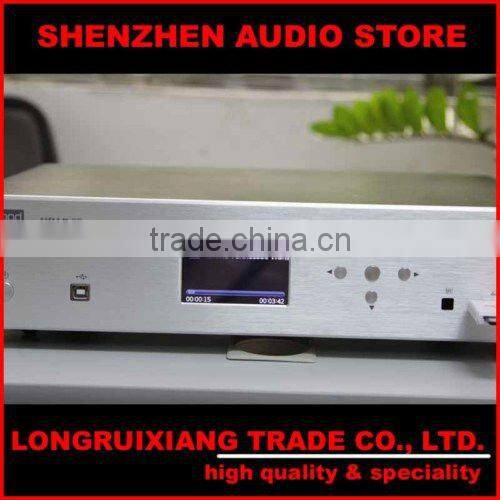

DUGOOD HDAP-02 high-fidelity digital audio file player



Descriptions:

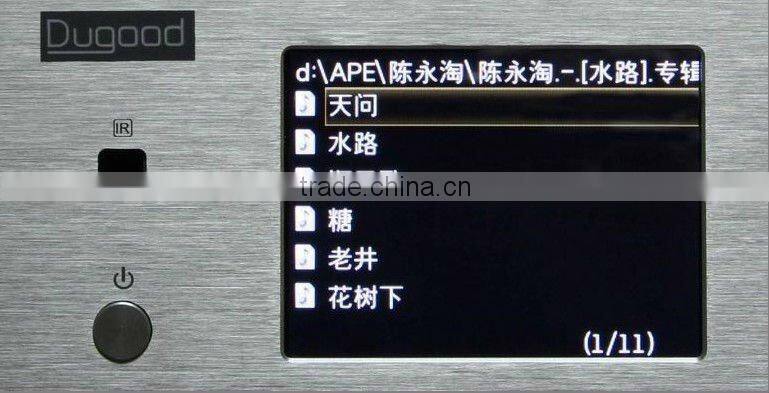

The new high launch HDAP digital audio files player, which conforms to the requirements of the computer age, specifically for playing audio data files in various formats player. Can be built-in high-capacity SATA hard disk, U disk and an external SD card. Similar to the WINDOWS directory tree, file management and search capabilities provide a very user-friendly convenience. A large capacity hard disk can store more than one thousand CD music files, HDAP will eventually become your "music storage room", HDAP machine with a high degree of consistent high-quality sound quality, coupled with unparalleled convenience will make you more love Music.







Features:
1.Support U disk, SD card, hard disk player, hard disk partition.
2.Audio formats supported: wav (up to 24bit/192KHz), ape (with cue), flac, mp3, wma, aac, alac, ogg.
3.With USB-PC interface, you can copy the program directly to the built-in hard drive.
4.OSD supports Simplified Chinese, Traditional Chinese, English.
5.Have coaxial digital output, RCA, balanced audio output.











Design Features:



1.Real 24bit digital audio processing core, up to 192K samples.
2.Ultra Low Jitter to provide high-quality sound guaranteed.
3.The use of drawer type hard disk box, can be quick and easy replacement, cannibalize hard drive.
4.Audio DA using BB's top multi-bit chip DF1704 + PCM1704.
5.Audio output pure Class A amplifier modules OP6805A, excellent sound quality.

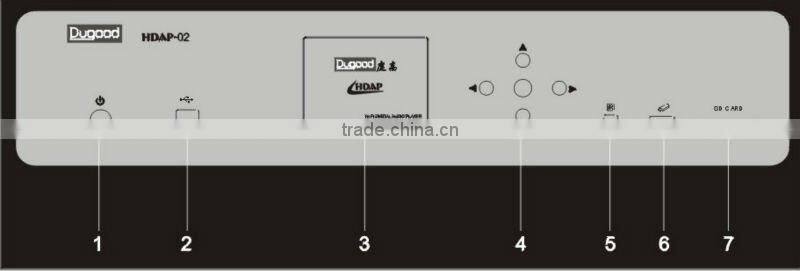

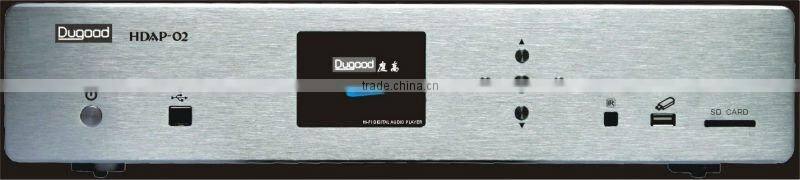

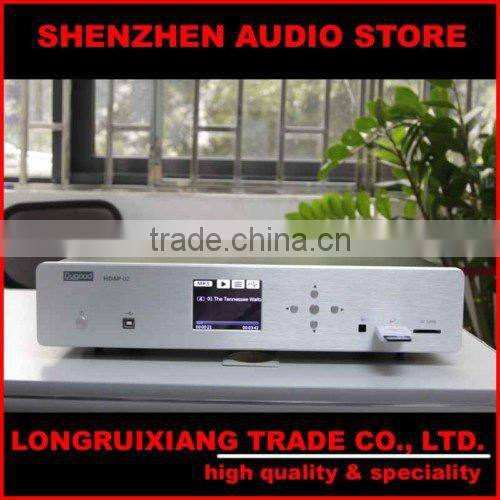

1 power switch.
2 connected to a computer USB port: For copy, modify programs with the computer USB port to connect.

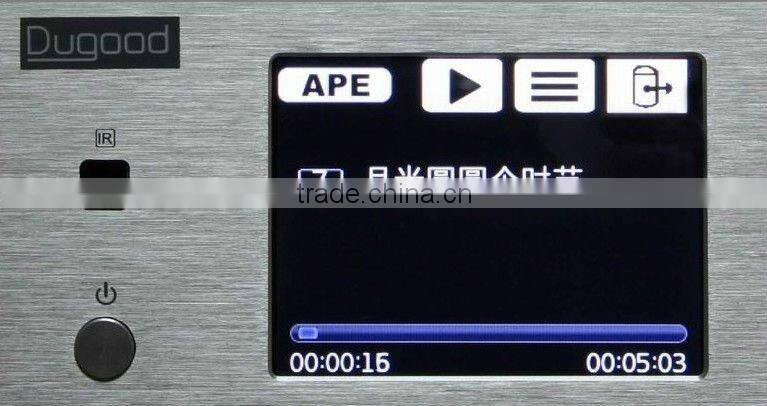

3 display.
4 function operation buttons: up / on a down / down one, left / back, right, middle button is the OK button.
5 infrared remote control receiver port, be careful not to block, so as not to affect the remote receiver.
6.USB jack for connecting U disk, mobile hard drives and other storage media.
7.SD card slot

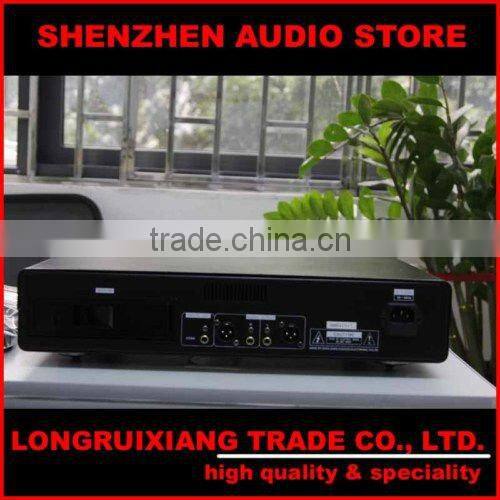

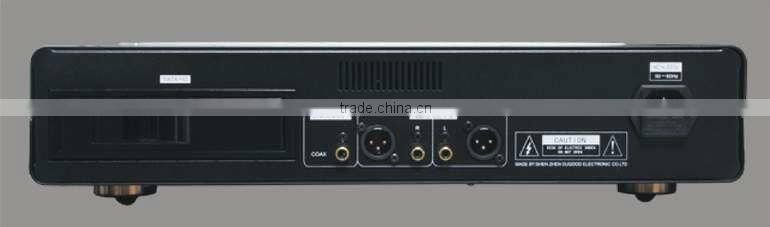

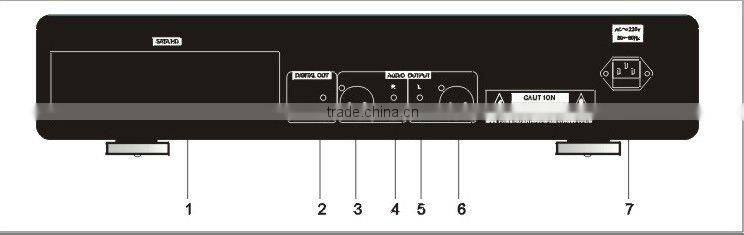

1 Drawer SATA hard drive (3.5 inch) port installation, the installation, remove the hard drive must be powered off when the machine to avoid damage to the hard drive.
2 coaxial digital audio output for connection to external audio decoder.
3 right (R) channel balanced analog audio output.
4 Right (R) analog audio RCA output.
5 left (L) channel RCA analog audio output.
6 left (L) channel balanced analog audio output.
7. 220V AC power input socket.

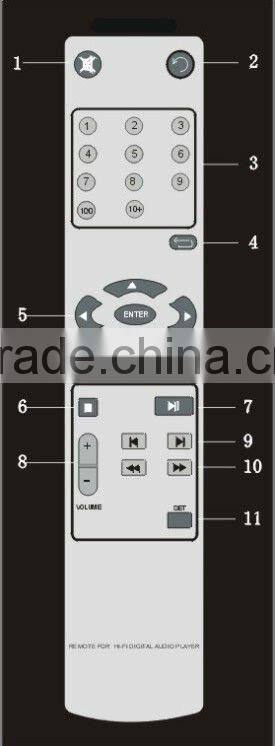

1. Mute button: Disable sound output and open the sound output.
2. Playback mode: Repeat All / Repeat / Shuffle / order of play / single Play.
3 direct selections buttons.
4 Back button: Returns to the previous menu or list of operations.
5 up / on a down / down one. To the left / back, right, middle button is the OK button.
6 Stop button: press this key during playback will stop playback and return to the track directory.
7 Play / Pause button: press this key player is suspended, then continued playing.
8 volume control buttons.
9. On the one, the next one.
10 fast forward, rewind button (click on a multiple of 2, double-click a multiple of 4, 8 by three times Multiples of 16 multiples by looked).

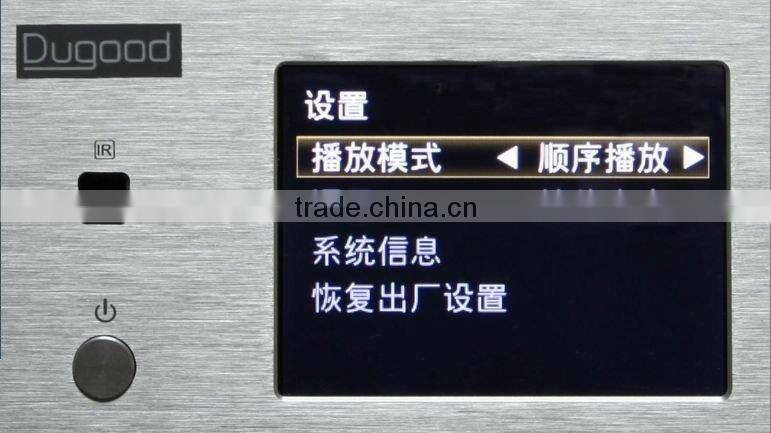

11 Set Menu (click to enter the setup interface, click to exit the setup screen).

Remote Control Precautions:
Aim the remote control sensor on the player area, at 7 meters, 30-degree range of operation.
Do not host in the remote and remote sensor is placed between the obstacles.
Do not mix old and new batteries.
Do not drop the remote control from a height.
Do not place the remote control in wet or high temperature.
Do not disassemble the remote control.
Long-term when not in use, remove the batteries.







Technical Specifications
Harmonic distortion: 0.0025%
Signal to noise ratio: 110dB
Dynamic Range: 115dB
Size: W 440mm * 110mm * 325mm
Net weight: 9kg

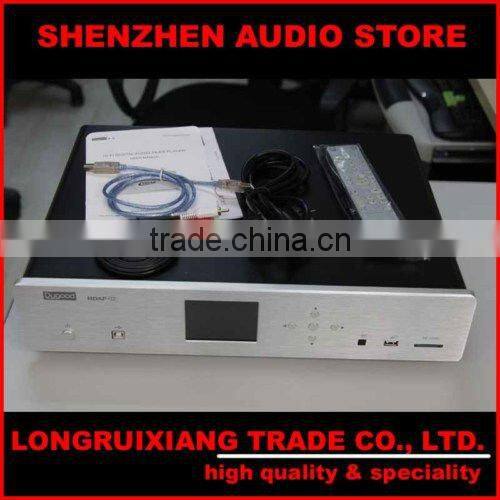

Packages:



A DUGOOD HDAP-02 Unit
A power cord, USB cable, RCA audio cable of a
A manual
A remote control
A batteries a couple (air battery removed)
