Matrix Mini-i 24/192 Balanced USB DAC & Headphone Amp&Remote

Name: Matrix Mini-i 24/192 Balanced USB DAC & Headphone Amp&Remote
Brand: Matrix
SKU: 125747161
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Matrix

Model Number:

mini-i 24/192

Type:

Home Amplifier

Shenzhen Longruixiang Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Matrix

Model Number mini-i 24/192

Type Home Amplifier

Channels 3 (2.1)

Specifications

Matrix mini-i 24/192 Balanced USB DAC& Head AMP &Remote
Full balanced stereo design.
Designed and fine tuned for audiophile

Matrix mini-i 24/192 Balanced USB DAC & Headphone Amp

Product Description:

Featrues:

D/A DAC chip AD1955 x 2

Full balanced stereo design

Up to 24Bit/192kHz sampling

USB input works with Windows 2000/XP/Vista/7, Linux and Mac OS 10.x, no extra driver needed

Pre-Amp/HP-Amp and Pure DAC modes switchable

Low jitter receiver chips and separate clock

Built-in headphone amplifier, for up to 300 ohm headphones

OP275/OPA2134 opamps NOT replaceable

Balanced/Unbalanced outputs

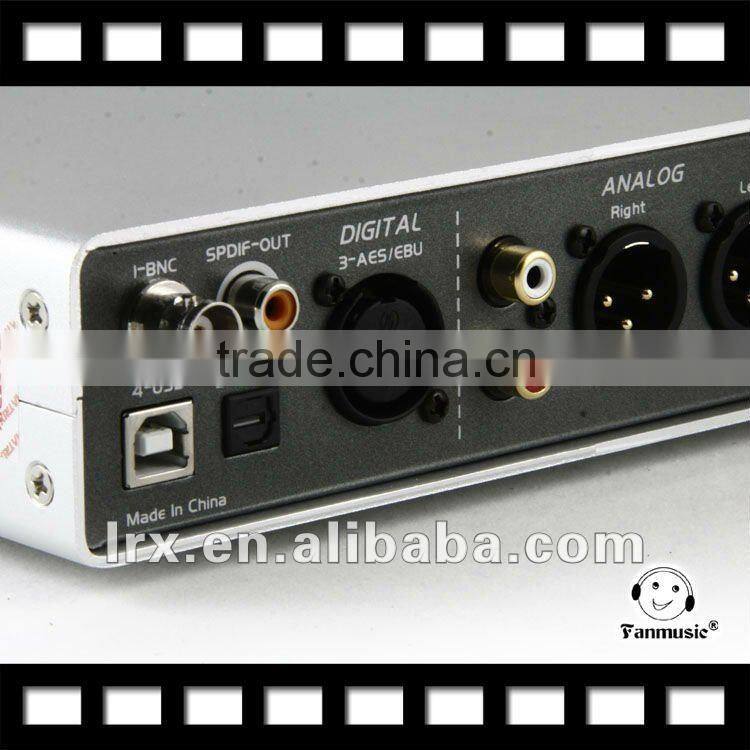

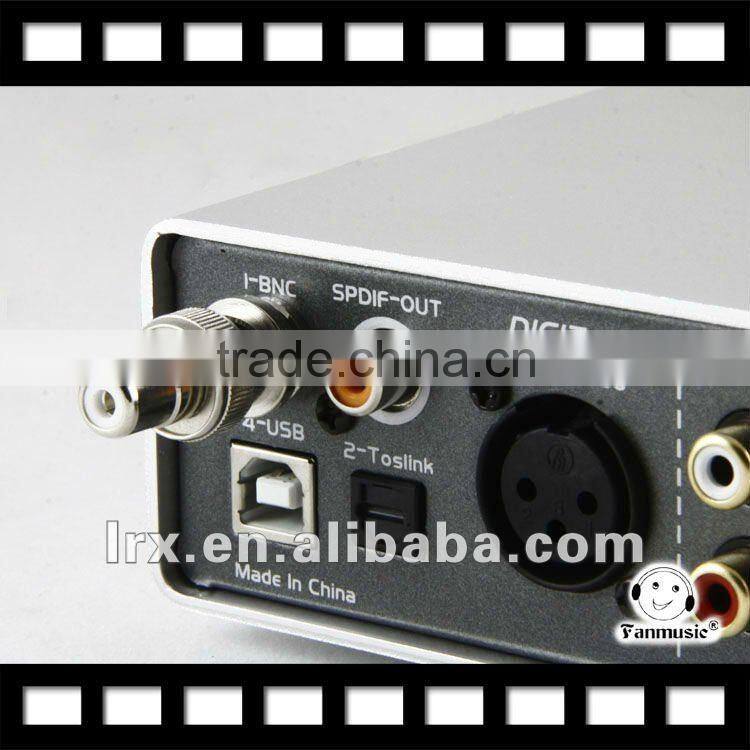

Various inputs: BNC/RCA/Toslink/AES/EBU/USB

Large screen LCD display

Designed and fine tuned for audiophile

Digital input pass-through via an RCA output, easy connect to another receiver

Parameter:

Digital Input	Optical: toslink, 32-192kHz Coaxial: 75 ohm RCA/BNC, 32-192kHz USB: USB-B, 44.1-48kHz AES/EBU: Standard XLR balanced, 32-192kHz
Digital Output	Coaxial RCA 32-192kHz Support AC3/DTS Pass Through
Analog Interface	RCA/XLR Frequency Response: 20-20kHz Signal to Noise Ratio: 105dB Dynamic Range: 108dB Distortion 0.0002% (1kHz)
Power Support	AC 100-120V / 220-240V(Please specify)
Front Panel Color	Silver
Case Color	Black/Silver (Please specify)
Weight	2 kg
Size	205 x 155 x 48mm
