Specifications
XMOS X-CORE 32Bit/500MIPS digital signalused 1bit/2.8224MHz or 5.6448MHz sample rate
USB 2.0 asynchronous interface

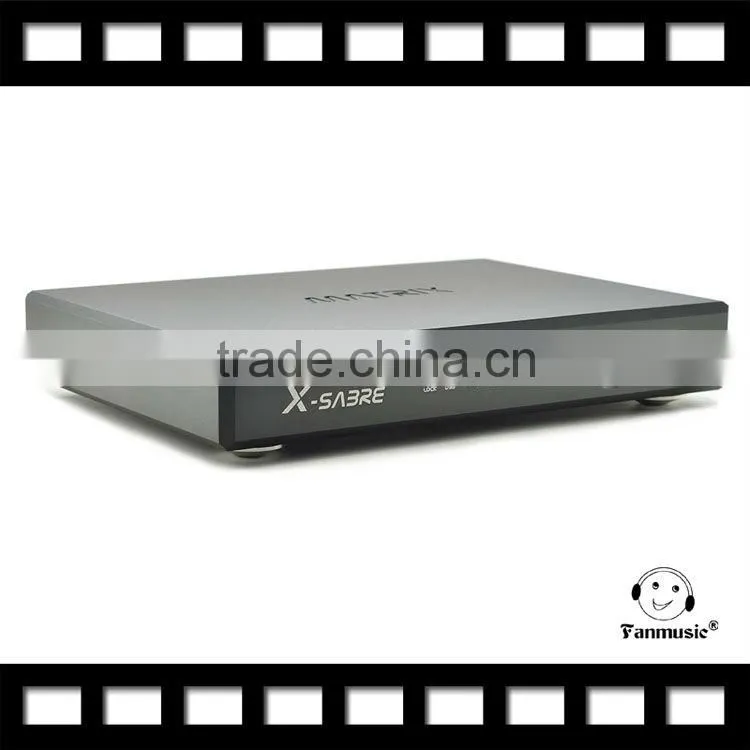

2013 New MATRIX X-SABRE 32bit/384kHz DSD DXD Audio DAC dac
All New Design:
The X-SABRE is a high quality D/A converter which support the DSD and DXD signal playback. It used the ESS Technology ES9018 Sabre Reference 32bit chip, and cooperates with XMOS 32BIT/500MIPS high performance digital signal processing unit, make it easy to playback the DXD and the DSD signals via the USB interface.
Convenient Operation:
The pellucid lever switch and LED display to make you understand the working status information quickly, even if you the first time to use it.
Various Interfaces:

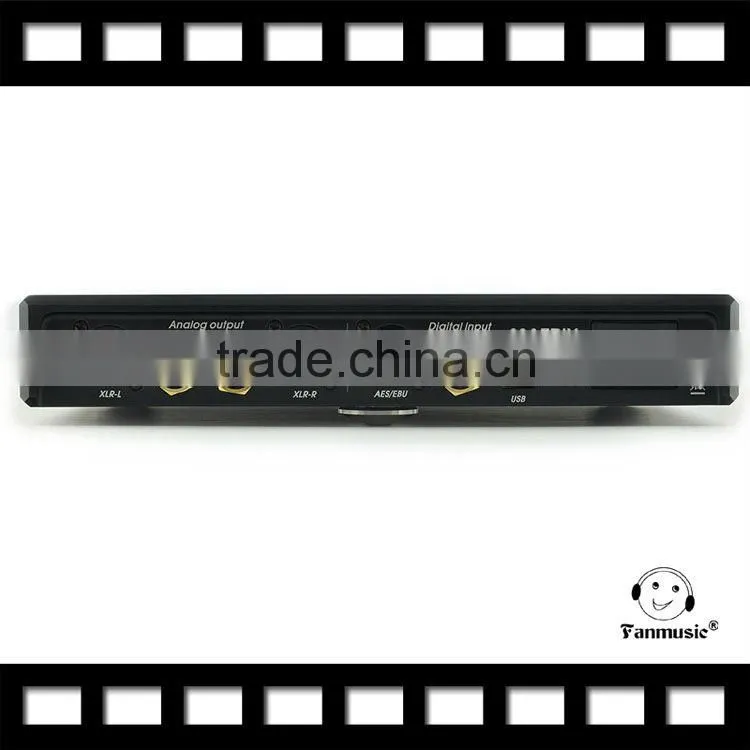

The X-SABRE with the COAXIAL, USB, AES / EBU input mode, you can change the channel by lever switch on the front panel. High quality gold plated terminals can ensure the reliable connection and to make a lossless signal transmission.
Native Support DSD DXD:
The USB 2.0 asynchronous interface support the 1Bit/2.8224MHz or 5.6448MHz DSD signal and the 24 Bit/352.8kHz DXD signal playback. The PCM signal support up to 32 Bit/384kHz sample rate. It will provide you the ultra high-quality audio signal playback.
CNC Unibody:
The aluminum unibody shell by CNC, although the manufacture processing is so complex, but it has incomparable integrity and mechanical strength. The separate compartments on each internal circuit unit, so it has a strong anti-jamming capability.
Simple But Not Simple:
The design of the diamond cutting style, there are three high strength stainless steel nail at the bottom, it can minimizes the vibration,and to keep it in the best work status.
Technical specifications:
DAC Specifications:
ESS Technology ES9018 SABRE Reference 32-bit DAC | |
8 mono to 2 stereo configuration, four D/A converters per channel |
Digital Input:
| Coaxial | 16-32bit / 44.1k / 48k / 88.2k / 96k / 176.4k / 192k |
| AES/EBU | 16-32bit / 44.1k / 48k / 88.2k / 96k / 176.4k / 192k |
| USB | 16-32bit / 44.1k / 48k / 88.2k / 96k / 176.4k / 192k / 352.8k / 384k |
DSD×64(2.8224MHz)/ DSD×128(5.6448MHz) | |
Support Window XP/Vista/7/8, Mac OS | |
Window XP/Vista/7/8 system need to install the driver | |
Support Mac OS X 10.6.4 above version, no need to install the driver |
Analog Output:
| RCA Output Level | 2.2Vrms at 0dBFS |
| XLR Output Level | 6.8Vrms at 0dBFS (XLR:1=GND,2=hot,3=cold) |
| Frequency Response | 20Hz-20kHz +/-0.1dB |
| SNR | 124dB 0dBFS Unweighted |
| 127dB 0dBFS A-weighted | |
| THD+N | 0.0003% @1kHz 0dBFS |
| 0.0003% @1kHz -1dBFS | |
| 0.0003% @1kHz -3dBFS | |
| Channel Separation | -145dB @20Hz |
| -143dB @1kHz | |
| -136dB @20kHz |
Power:
| Power | AC 220V 50/60Hz(AC 110V 50/60Hz) |
| Power consumption | <10W |
Accessory:
Driver Disk×1
User Guide×1
Note: not contain the power cord
