GUSTARD DAC-X20/X20U Super Ultimate 2 x ES9018 XMOS HiFi DAC 384KHz DSD DOP Decoder
NOTE: Click Here for Buying X20 Sample in Our AliExpress Retail Store
NOTE: Click Here for Buying X20U Sample in Our AliExpress Retail Store
DSD plug-in Download:
/projects/sacddecoder/files/?source=navbar
Windows XP/Vista/7/8 Driver:
/s/1ntDUtqp
Mac OS X 10.6.4 and above don't need to install the driver.
Which lasted two years, GUSTARD DAC-X20U is finally put on market.
2 x ESS Technology ES9018 Sabre Reference 32bit
XMOS 32bit/500MIPS

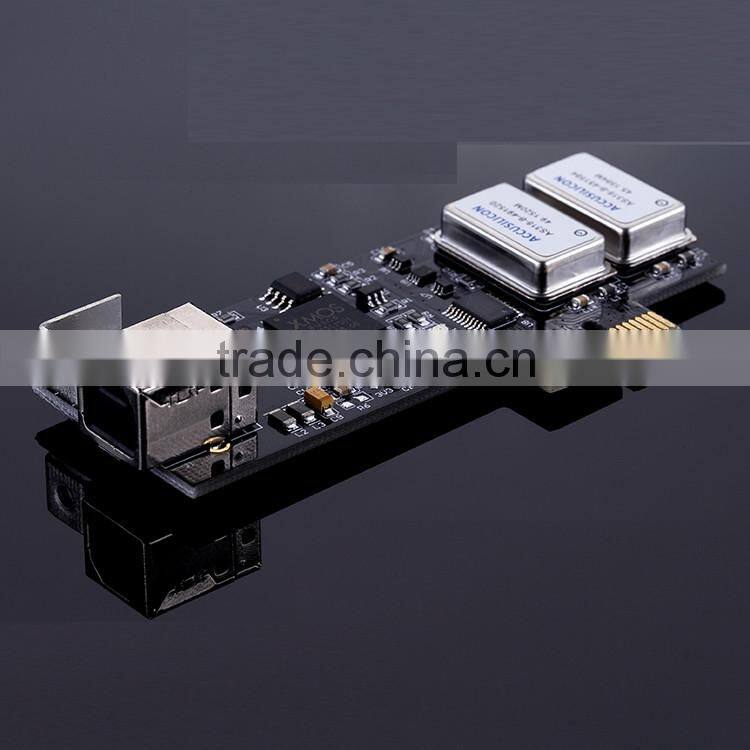

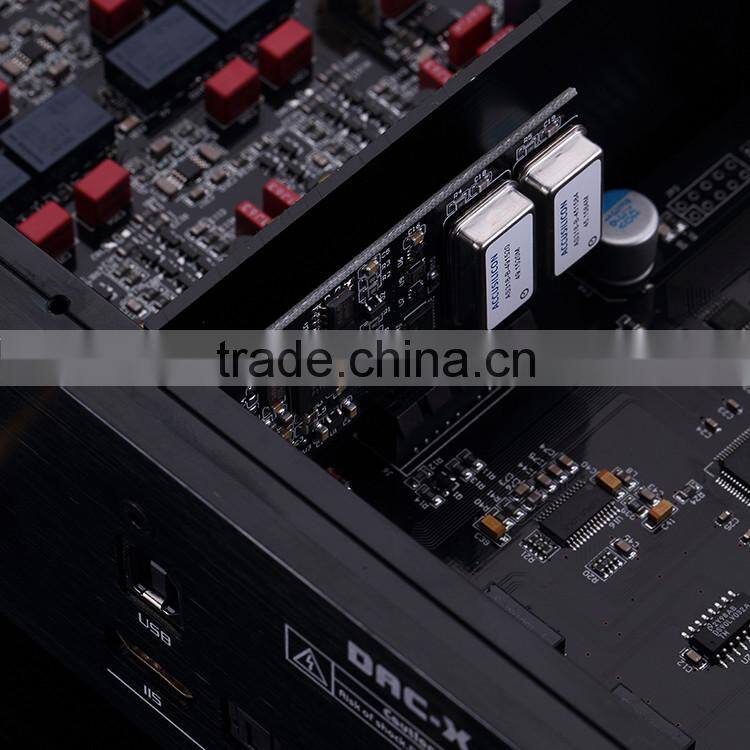

Adopt more humane modular XMOS USB daughter card.

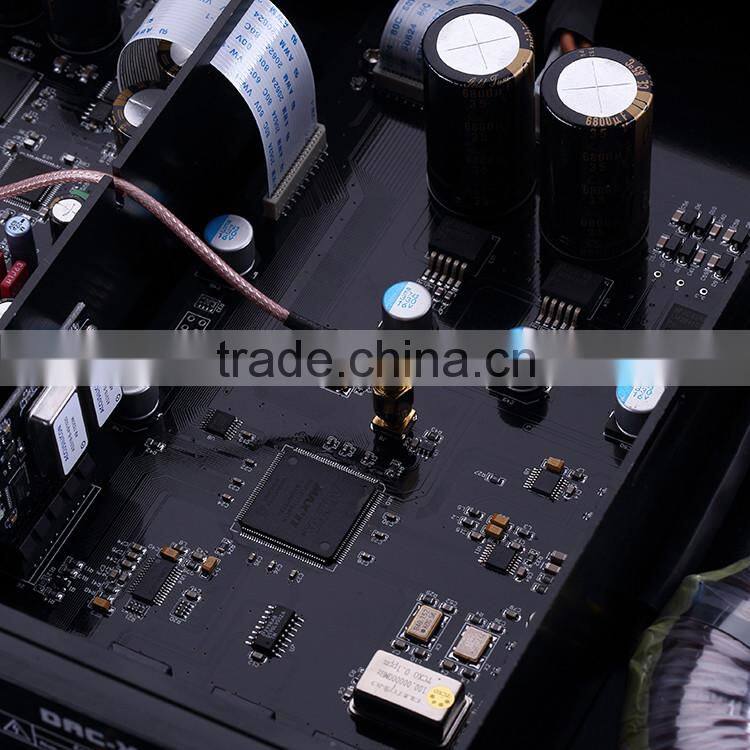

Analog circuit use High-end discrete lines.
Features:
1. Doul ESS Technology Sabre Reference 32bit ES9018 DAC chip,R and L sound Chanel one on each side.
2. Automatic adaptation master clock technology and Asynchronous master clock technology.
Two clock mode can be freely selected.
3. XMOS 32bit USB receiver chip which is best performance asynchronous USB audio solution.
4. CPLD programmable logic device. Soft control ES9018.
5. Three files gain, volume can be adjusted. Attenuation adjustable from 0 to -99DB.

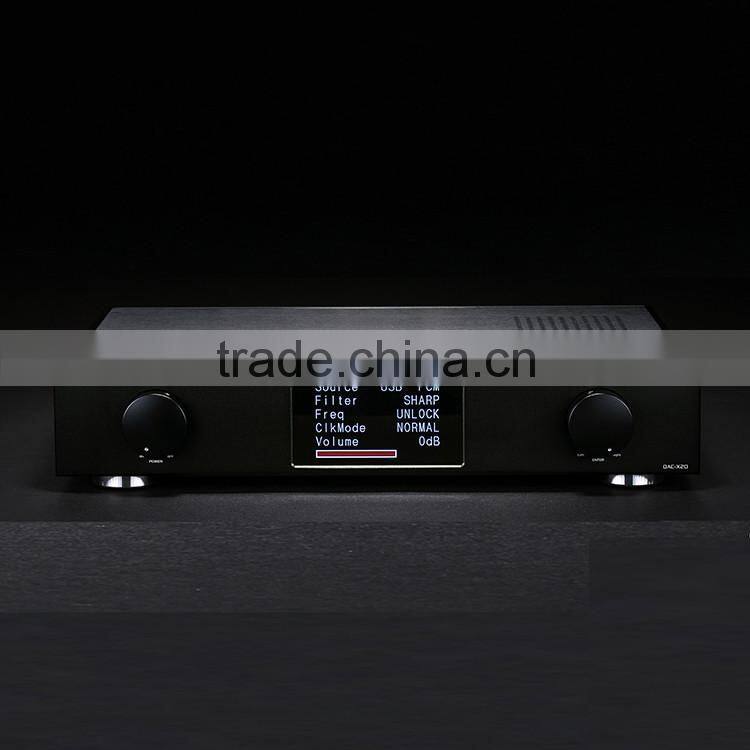

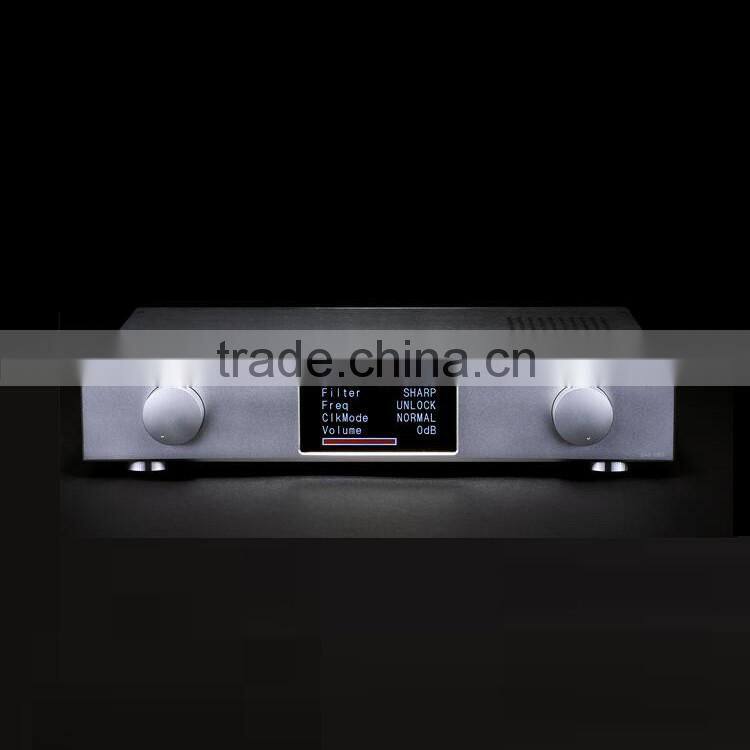

6. TFT LCD screen, adjustable contrast.
7. Power supply with two O-type transformers, Digital and Analog independent power supply, and use
Discrete Components regulation Voltage stabilization.

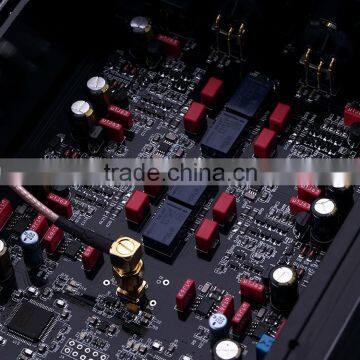

8. Full balance Discrete components Analog Line. Balance / RCA output simultaneously.

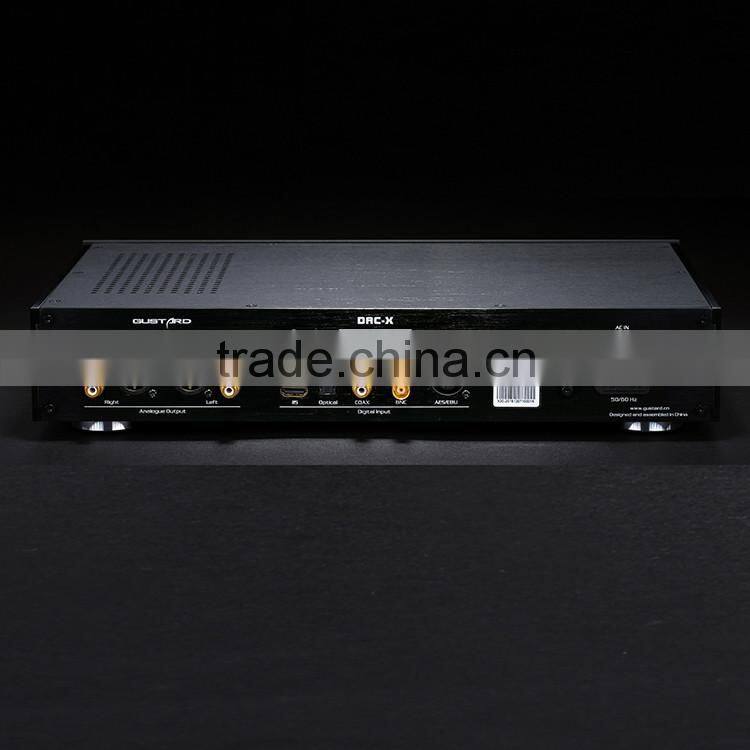

9. Digital Input: balanced Spdif AES/EBU port, RCA, Toslink Optical input and USB, (Key switch)
10.Both 110/120v and 220/240v version supported.
11.Power Supply: AC 230V 50 / 60Hz (AC 115V 50 / 60Hz),Power Consumption: <50W
12.Dimensions (excluding protruding part): W 380MM * H 65MM * D 260MM
Specification:
Weight:6.5KG
Size:38*65*26cm
Overall Power Consumption:<50W
Channel crosstalk:-138dB @ 1kHz
Frequency Response:20Hz-20kHz +/-0.15dB
S/N:>128dB
THD+N:<0.0005%
1 MD:<0.0005%
Power Supply: AC 230V 50/60Hz(AC 115V 50/60Hz)
Analog Output RCA Output level:2.3 Vrms@0dBFS
XLR Output level:4.6 Vrms @0dBFS
AC power:AC 115V/220V 50/60Hz
DAC:
ESS Technology ES9018 Sabre Reference 32-bit DAC
8 mono to 2 stereo configuration,four D/A converters per channel
Digital Input:
Coaxial, BNC:
PCM:16-24bit /44.1,48,88.2,96,176.4,192 kHz
DOP:DOP64
optical:
PCM:16-24bit /44.1,48,88.2,96,176.4,192 kHz
DOP:DOP64
AES/EBU:
PCM:16-24bit /44.1,48,88.2,96,176.4,192 kHz
DOP:DOP64
IIS:
PCM:16-32bit /44.1,48,88.2,96,176.4,192,352.8,384kHz
DSD:DSD64,DSD128,DSD256,DSD512
DOP:DOP64,DOP128 DOP256,DOP512
USB: 16-32bit / 44.1,48,88.2,96,176.4,192,352.8,384 kHz
DSDx64(2.8224MHz),DSDx128(5.6448MHz)
Analog output:
RCA output level: 2.3 Vrms @0dBFS
XLR Output Level: 4.6 Vrms @0dBFS (XLR interface definition: 1Ground, 2Hot, 3Cold)
Frequency response: 20-20K Hz +/-0.15dB
USB 2.0 interface can replay 1BIT/2.8224MHz or asynchronous sampling rate 5.6448MHz DSD Digital Signals.
This is supported DSD64 and DSD128.
Coaxial / Optic / AES / EBU support DOP64, can connect Digital Music Player playback SACD MUSIC
Main chip: ESS Technology ES9018 Sabre Reference 32bit chip x 2
Unlike conventional Sigma-Delta D / A converter, ESS Sabre32 use innovative patented circuit,
Get rid of the ordinary Digital Audio System timebase jitter, get very wide dynamic range, low
distortion and accurate sound field.
1.Voltage
Can you change the voltage and plug?Our voltage is 110V or 220V,and our plug is EU,US or others.
Yes,we will change the voltage and plug according to your shipping address.
2.RMA
Hi seller,I bought one device from your shop before,but it is broken now under warranty,can you help me repair it?
Yes,please send the defective device or wrong device to our Chinese address(please contact our salesman).
Once we received it,we will send you the new replacement or refund immediately.
3.Warranty
I bought your product 7 years ago,but it's broken now,can you repair it?
Oh...Dear friend,our warranty is 1 year,would you like have a try of the newest one?
4.Samples
Hi,man,I love your products too much,can you send me an exsiting sample to test?I will place big order in future.
Hi,my friend,we can send you an existing sample,and the sample charge is lower than the retail price,if you need custom products,please contact our salesman.
5.Shenzhen Shop
Hi,brother,I am going to Shenzhen,China,can I visit your shop?
Yes,my friend,welcome to our shop,you can have a try of your favorite devices,and it would be better if you could inform me in advance,so I can prepare for your needed devices.
Shop address: 4F9,No.3018,Gume,Wanshang Electric City,Huaqiang north road,Futian zone.Shenzhen,China.
T:86-0755-82521355
