Specifications
High powe (15w*2)Small Size
Very High Efficiency(90%)
"Audiophile" Quality Sound
Speaker Protection Included

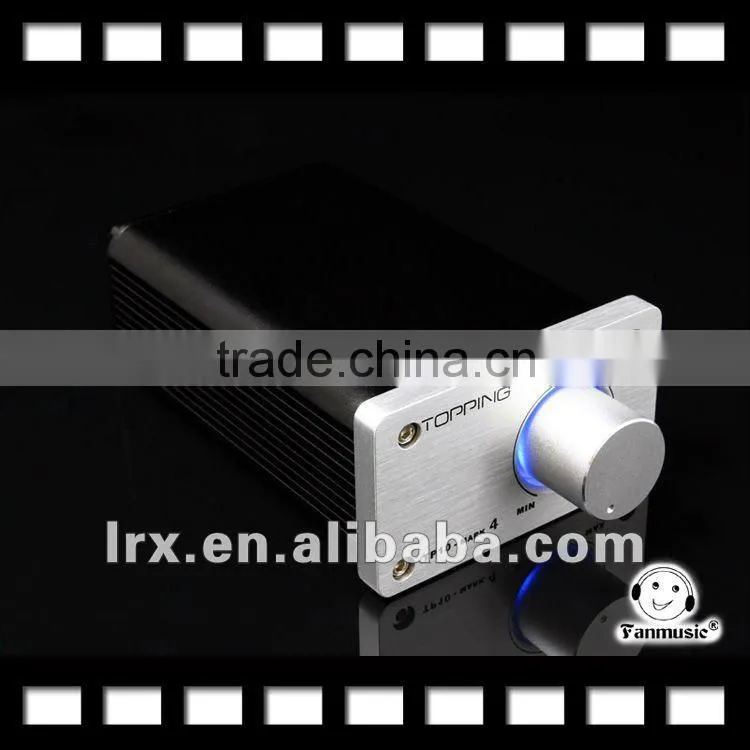

Topping TP10 MK4 TA2024 Digital Hifi Amplifier Amp
Product Description:
The Topping T-Amp is a so-called Class T integrated amplifier, based on the TA 2024 chipset. the chip makes use of a kind of "Digital Power Processing", this is, more or less, a Class D amplifier with high rate switching properties. That is why they put the word "digital" into it. Actually, there's nothing really digital inside, not in terms of D/A conversion. You can view the official TA2024 datasheet, with detailed tech specs, The Topping T-Amp is nothing else than a pure and simple application suggested by the chipset datasheet. No magic.
TA2024 is more powerful chipsets, used for example by BelCanto Design for their Evo2 power amplifier (3200$) and by Audio Research on their 150.2 power amp. Also Teac makes a 3-channel power amp with the very same kind of chipset.

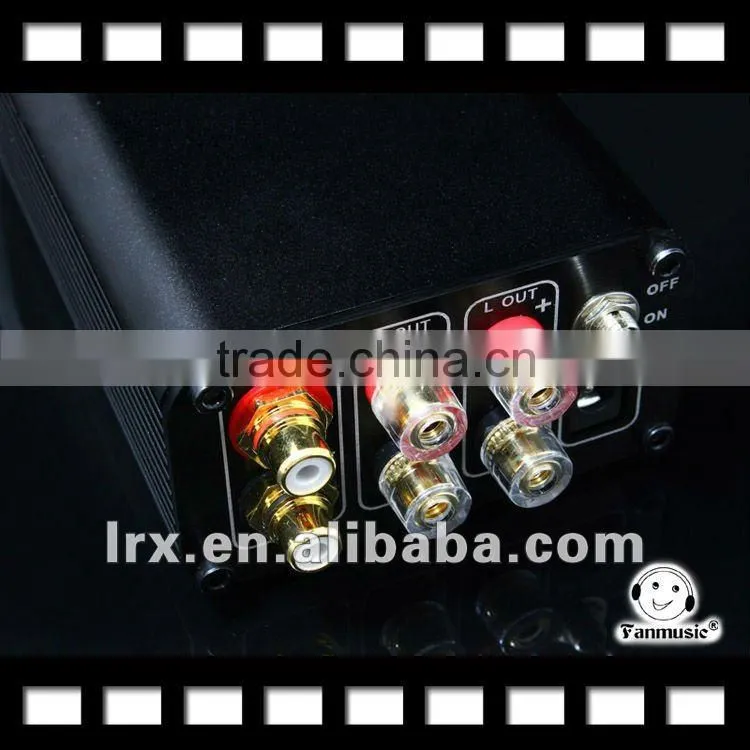

The connection between TP10-MARK4 and the speaker must be correct. L+ to the red jack(+ in) of the left speaker, L- to the black jack(- in) of the left speaker. Connection to the right channel is the same. Please ensure that step is correct before proceed to the next step.
TP10-MARK4 is a amplifier with BTL output, the L- and R- jack are separate, they are not connecting to the ground , and they are not connecting to a same point. So if you make a mistake at this step,maybe it will cause serous damage to TP10-MARK4. Warranty is void when user's error connection led to an damage.
Item include:

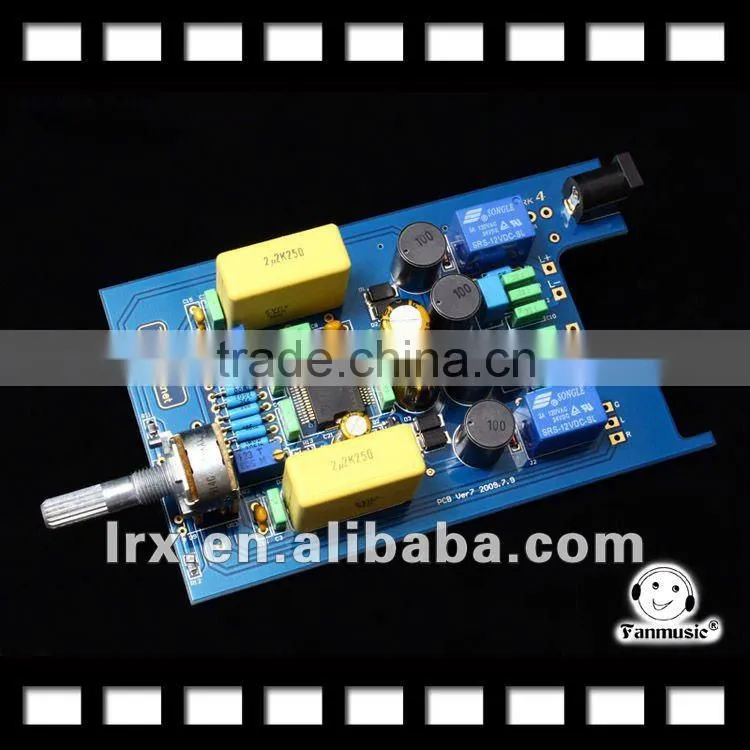

A. There are 'ERO' 'SEMENS' 'EVOX' 'ELNA' Caps and ‘Dale’ resistors to used and drive in better performance.
B. Double side gold coat PCB with high quality solder, pure copper 24K gold coat RCA sockets and ALPS Volume Control .
C.Extremely High Efficiency working with automatic Mute and Sleep ,turn-on & turn-off pop suppression also to the unit power on with switch.
Technical Parameter:
| Output Power | 2 x 15W @ 4ohm, 2 x 10W @ 8ohm |
| Signal-to-Noise Ratio (SNR) | 98dB |
| Dynamic Range | 98dB |
| IHF-IM Distortion | 0.1% @ 1W, 4ohm |
| THD Distortion | 0.03% @ 9W, 4ohm 0.1% @ 11W 4ohm 0.1% @ 6W 8ohm 10% @ 15W 4ohm 10% @ 10W 8ohm |
| Power Efficiency | 81% @ 15W, 4ohm, 90% @ 10W, 8ohm |
| Input Sensitivity | 200mV |
| Output |
Speaker OUT (Left) x 1 pair (+ / -) Speaker OUT (Right) x 1 pair (+ / -) Power Indicator (Blue LED) x 1 |
| Power Supply input | DC 12V~13.2V5A |
