Specifications
automatically complete the testing workmake scientific and accurate quantitative analysis and qualitative conclusion

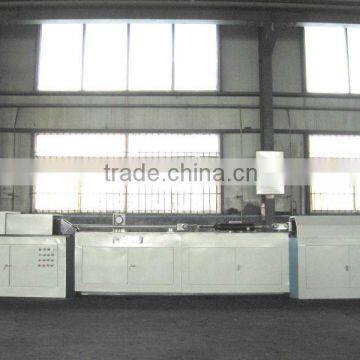

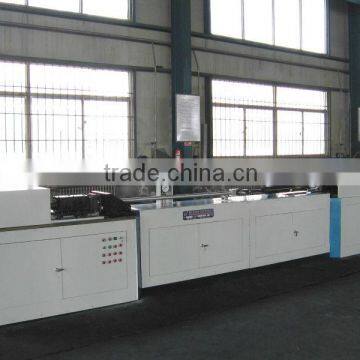

Computer-controlled slack adjuster testing machine is used to testing the performance on new or used slack adjuster. It is mainly measured the accuracy and flexibility of elongation and shortening function of slack adjuster, which can effectively prevent and avoid the train brake regulator failure, to provide more help for the safe operation of the railway freight car.
- The the pneumatic system was designed and optimized by using LMS company's AMEsim software, design a control system, realizes the fast charge brake cylinder and the slow charge function.
- Pressure and stroke of the brake cylinder is direct measured by pressure sensor and the displacement sensor, improve the accuracy and reliability of testing.
- Optimization of software interface, each test item test standard can observe brake regulator effectively implemented in the test process and test results, the test results report printing function can be optimized for brake slack adjuster output clearly and effectively.
| Testing Machine Size(L x W x H) | 5300 mm x 500 mm x 1100 mm |
| Weihgt | 3 Tons |
| Testing Scope | ST1-600 and ST2-250 Type slack adjuster |
Testing Speed | ≤8 sets/min |
| Working Temperature | 0-55 °c |
| Working Humidity | ≤90% |
| Power | AC 220 V 50 Hz 0.5 kW |
| Air Source Requirement | 0.6MPa, 5m3/min |
- If you don’t found hydraulic products you need, please contact us.
- We also provide the OEM and ODM Service.
Yuci Changjin Hydraulics & Pneumatics Development Co., Ltd. is a comprehensivetechnical company integrating scientific research, industry and trade. The company employs college professors, authoritative experts to develop high-tech products. The company has built a ten thousand square meters factory, with wire cutting machine, CNC lathe and other advanced equipment. The company operates according to the modern enterprise system. In 2002, the company accredited ISO9001:2008 quality system certification. The company mainly productsare the hydraulic system, hydraulic cylinder, pneumatic cylinder, circulating water cooling system, lubricating system, spring testing machine and electrical control system. At the same time, the company provides design and consultation service. The Company developed lifting with rotating cylinder. Since its establishment in 1995, the products related to the domestic metallurgical, mining, heavy machinery, railway, highway, water conservancy, textile, chemical industry, agriculture, electric power industry and other fields. The products are sold to 29 provinces and municipalities in China. Some products have exported of Algeria, Canada, Ethiopia, India, Indonesia, Fiji, Saudi Arabia and Thailand. The company focuses on innovating, quality and reputation which are the foundation of the company continuous development and progress. Through provided high quality, high technology products and professional after sale service, the company won the praise of users at here and abroad.
