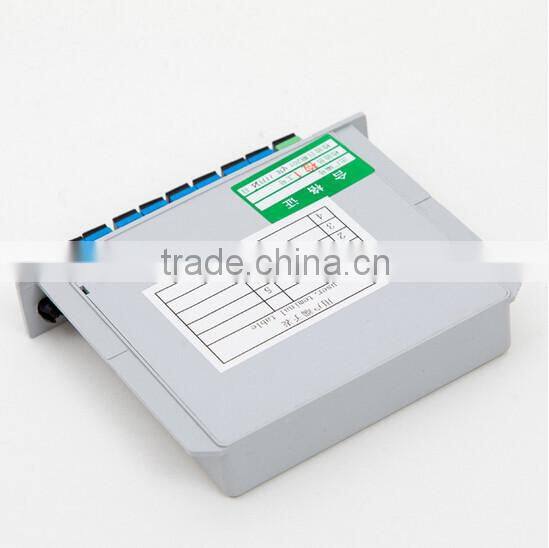

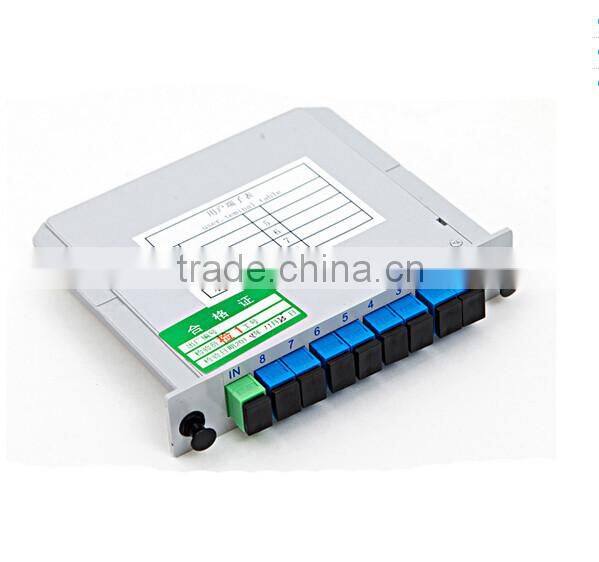

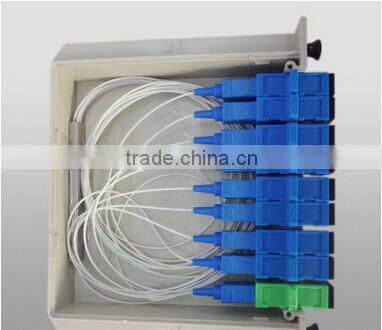

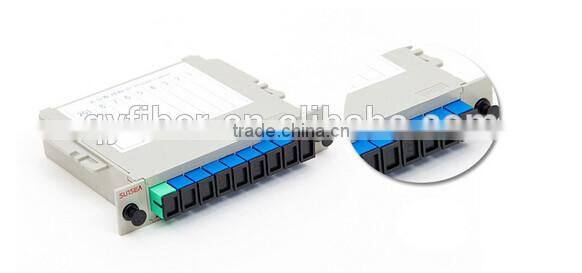

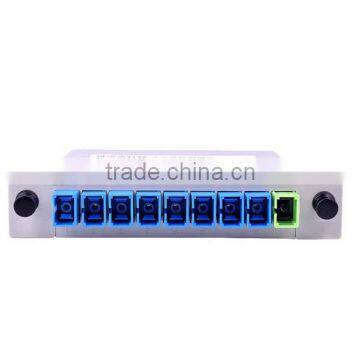

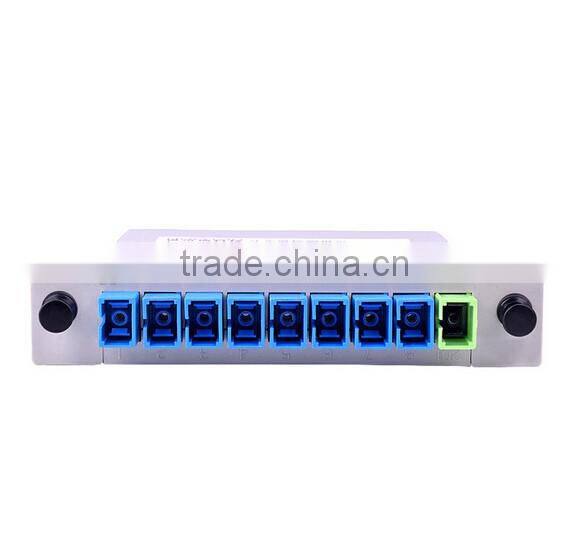

Hot China Products Wholesale 1x8 Box Card Insertion Plc Splitter , Optical in Splitter , Plc Fibre Splitter

Hot China Products Wholesale 1x8 Box Card Insertion Plc Splitter , Optical in Splitter , Plc Fibre Splitter thumbnail-1
Hot China Products Wholesale 1x8 Box Card Insertion Plc Splitter , Optical in Splitter , Plc Fibre Splitter thumbnail-2
Hot China Products Wholesale 1x8 Box Card Insertion Plc Splitter , Optical in Splitter , Plc Fibre Splitter thumbnail-3
Hot China Products Wholesale 1x8 Box Card Insertion Plc Splitter , Optical in Splitter , Plc Fibre Splitter thumbnail-4
Hot China Products Wholesale 1x8 Box Card Insertion Plc Splitter , Optical in Splitter , Plc Fibre Splitter photo-1
Hot China Products Wholesale 1x8 Box Card Insertion Plc Splitter , Optical in Splitter , Plc Fibre Splitter photo-2
Hot China Products Wholesale 1x8 Box Card Insertion Plc Splitter , Optical in Splitter , Plc Fibre Splitter photo-3
Hot China Products Wholesale 1x8 Box Card Insertion Plc Splitter , Optical in Splitter , Plc Fibre Splitter photo-4
US$ 3 - 8 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
QY
Model Number:
Qingying
Contact Supplier Request Quote Chat Now
Dongguan Qingying Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name QY
Model Number Qingying

Hot china products wholesale 1x8 box card insertion  plc splitter , optical in splitter , plc fibre splitter



The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON.GPON.BPON.FTTX.FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.

Outline



Ports

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Insertion Loss (dB)

Max(P/S)

3.8/4.0

7.1/7.3

10.2/10.5

13.5/13.7

16.5/16.8

20.5/21.0

Loss Uniformity (dB)

Max

0.6

0.6

0.8

1.2

1.5

2.5

PDL (dB)

Max

0.15

0.15

0.25

0.3

0.3

0.3

Return Loss (dB)

Min

UPC:50   APC:55

Directivity (dB)

Min

55

Standard Input Fiber

Bend Insensitive SM Single Fiber(ITU G.657A)

Standard Output Fiber

Bend Insensitive SM Ribbon Fiber(ITU G.657A)

Standard Output Color

Blue, Orange, Green, Brown, Grey, White, Red ,Black(TIA/EIA 598-B)

Max. Optical Power(mw)

300

Humidity Range(rh)

5%~85%

Operating Temperature(℃)

-40~+85

Storage Temperature(℃)

-40~+85

Connector Options

FC/SC/LC/ST/MU

Packaging Options

Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount

*Telcordia GR-1221-CORE&G-1209-CORE Compliant.
*Premium spec available upon request. (P/S: Premium Grade/Standard Grade)
*Typical value at +23℃ without connectors losses.





Factory Scale:

Total Area of: 8000 square meters

Factory history: 10 years

Production Staff: 60 to 100
QC Staff: 10 to 12
R&D Staff: 5 to 10

Certificates:

ISO9001:2015

SGS

RoHS

CE

Logistics Ability:

Arrange the Mixed logistical for Election delivery as By Air and By Sea,

over 10 years’ experience for logistical arrange.

Features;

Good uniformity and low insertion loss

 Low Polarization Dependent Loss

Excellent Environmental Stability

Excellent Mechanical

Stability

Delivery Time:

Material Preparation Time: 3 days (or inventory)

Production & Assembly Time 7 days

Testing & Packaging Time: 2 days

Total Delivery Time:  15 days in 15000pcs

 for safe delivery lead time.

The faster delivery could be negotiable.

Applications:

1.Asynchronous Transmission Mode(ATM)     Package for 100PCS   :

2.Passive optical networks (PON)

3.Fiber to The Home (FTTH)                          Package dimensions : 62cm*31cm*23CM

4.Local Area Networks (LAN)

5.Cable Television (CATV)

6.Test Equipment



  Hot china products wholesale 1x8 box card insertion plc splitter , optical in splitter , plc fibre splitterHot china products wholesale 1x8 box card insertion plc splitter , optical in splitter , plc fibre splitterHot china products wholesale 1x8 box card insertion plc splitter , optical in splitter , plc fibre splitterHot china products wholesale 1x8 box card insertion plc splitter , optical in splitter , plc fibre splitterHot china products wholesale 1x8 box card insertion plc splitter , optical in splitter , plc fibre splitter


Company Information











Packaging & Shipping



Our Services









FAQ



Q 1. what's the payment term?

A. We accept TT, 30% deposit and 70% balance aganist copy of BL, Western

Union.



Q 2. how's the delivery time ?

A. usually it will take about 10~15days for production



Q 3. tell me the standard of package?

A. For the small capacity, it uses carton.
