Hot china products wholesale 1x2 mini module blockless plc splitter , optical in splitter , plc fibre splitter
- 2000 Piece / Pieces per Month
- Hongkong Port
- T/T Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | QY | Model Number: | Qingying |
Product Description

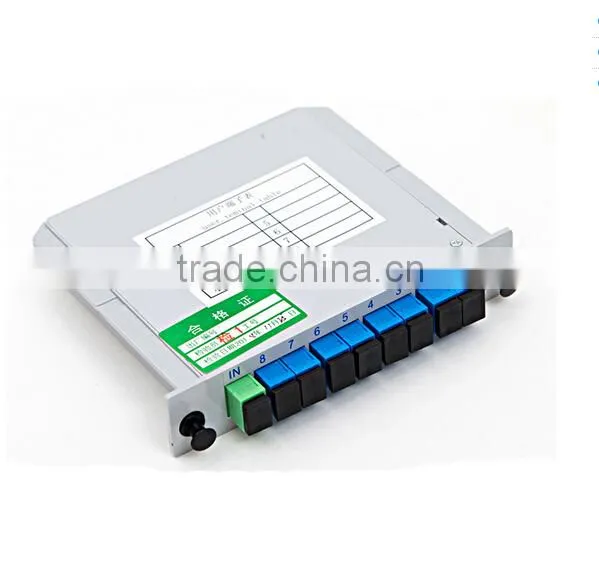

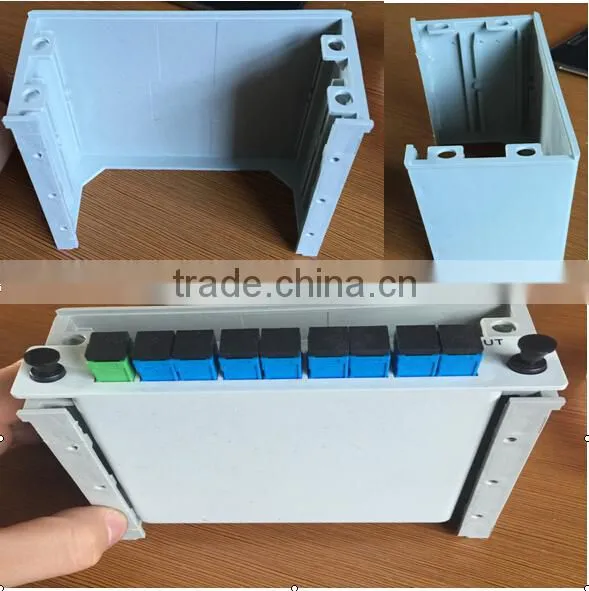

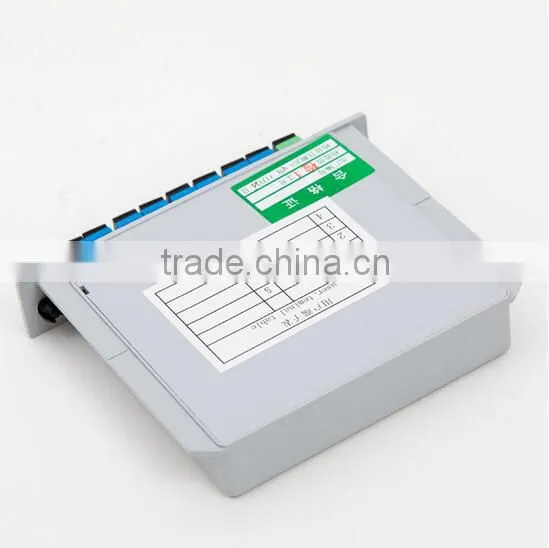

Hot china products wholesale 1x2 mini module blockless plc splitter , optical in splitter , plc fibre splitter
The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON.GPON.BPON.FTTX.FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.
Outline
Ports | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
Operating Wavelength (nm) | 1260~1650 | ||||||
Insertion Loss (dB) | Max(P/S) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | 20.5/21.0 |
Loss Uniformity (dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
PDL (dB) | Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 |
Return Loss (dB) | Min | UPC:50 APC:55 | |||||
Directivity (dB) | Min | 55 | |||||
Standard Input Fiber | Bend Insensitive SM Single Fiber(ITU G.657A) | ||||||
Standard Output Fiber | Bend Insensitive SM Ribbon Fiber(ITU G.657A) | ||||||
Standard Output Color | Blue, Orange, Green, Brown, Grey, White, Red ,Black(TIA/EIA 598-B) | ||||||
Max. Optical Power(mw) | 300 | ||||||
Humidity Range(rh) | 5%~85% | ||||||
Operating Temperature(℃) | -40~+85 | ||||||
Storage Temperature(℃) | -40~+85 | ||||||
Connector Options | FC/SC/LC/ST/MU | ||||||
Packaging Options | Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount | ||||||
*Telcordia GR-1221-CORE&G-1209-CORE Compliant. |
Factory Scale: Total Area of: 8000 square meters Factory history: 10 years Production Staff: 60 to 100 | Certificates: ISO9001:2015 SGS RoHS CE | |
Logistics Ability: Arrange the Mixed logistical for Election delivery as By Air and By Sea, over 10 years’ experience for logistical arrange. | ||
Features; Good uniformity and low insertion loss Low Polarization Dependent Loss Excellent Environmental Stability Excellent Mechanical Stability | Delivery Time: Material Preparation Time: 3 days (or inventory) Production & Assembly Time 7 days Testing & Packaging Time: 2 days Total Delivery Time: 15 days in 15000pcs for safe delivery lead time. The faster delivery could be negotiable. | |
Applications: 1.Asynchronous Transmission Mode(ATM) Package for 100PCS : 2.Passive optical networks (PON) 3.Fiber to The Home (FTTH) Package dimensions : 62cm*31cm*23CM 4.Local Area Networks (LAN) 5.Cable Television (CATV) 6.Test Equipment |
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance aganist copy of BL, Western
Union.
Q 2. how's the delivery time ?
A. usually it will take about 10~15days for production
Q 3. tell me the standard of package?
A. For the small capacity, it uses carton.
