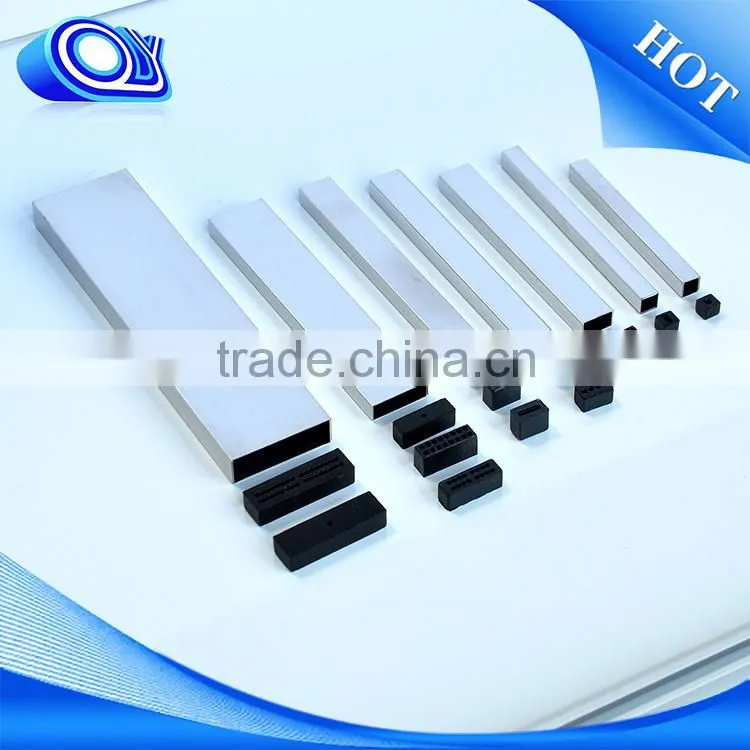

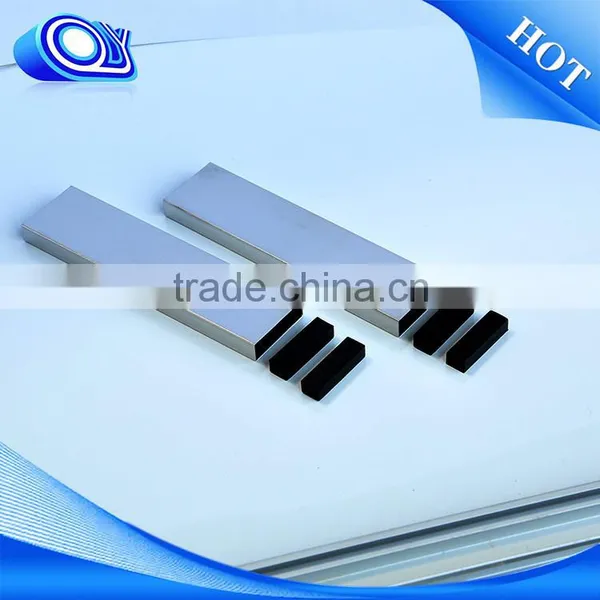

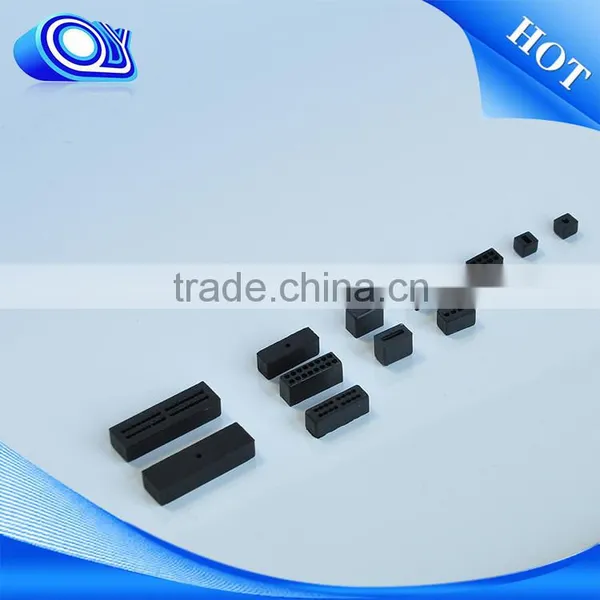

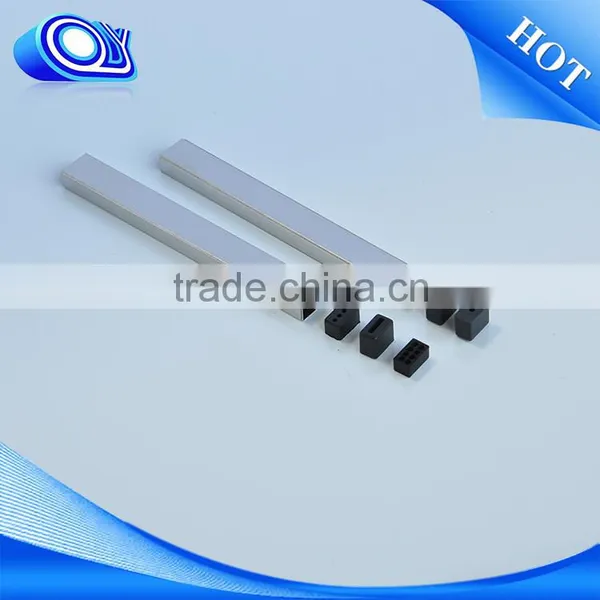

wholesale steel tube parts for PLC splitters
Planar Lightwave Circuit Splitter (PLC Splitters) is a technology based on planar waveguide optical power distribution products, with low insertion loss and polarization dependent loss, small size, wide operating wavelength range, high channel uniformity and good characteristics. Especially for passive optical network (EPON, BPON, GPON, etc.) to connect the central office and terminal equipment and optical signal splitter to achieve. All products comply with Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, YD / T 1117-2001 and RoHS standards. 1xN and technology can provide a full range of full specification 2xN products, and customized for all occasions in the optical splitter.
The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON.GPON.BPON.FTTX.FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.
Ports |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operating Wavelength (nm) |
1260~1650 |
||||||
Insertion Loss (dB) |
Max(P/S) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.8 |
20.5/21.0 |
Loss Uniformity (dB) |
Max |
0.6 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
PDL (dB) |
Max |
0.15 |
0.15 |
0.25 |
0.3 |
0.3 |
0.3 |
Return Loss (dB) |
Min |
UPC:50 APC:55 |
|||||
Directivity (dB) |
Min |
55 |
|||||
Standard Input Fiber |
Bend Insensitive SM Single Fiber(ITU G.657A) |
||||||
Standard Output Fiber |
Bend Insensitive SM Ribbon Fiber(ITU G.657A) |
||||||
Standard Output Color |
Blue, Orange, Green, Brown, Grey, White, Red ,Black(TIA/EIA 598-B) |
||||||
Max. Optical Power(mw) |
300 |
||||||
Humidity Range(rh) |
5%~85% |
||||||
Operating Temperature(℃) |
-40~+85 |
||||||
Storage Temperature(℃) |
-40~+85 |
||||||
Connector Options |
FC/SC/LC/ST/MU |
||||||
Packaging Options |
Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount |
||||||
|
*Telcordia GR-1221-CORE&G-1209-CORE Compliant. | |||||||
|
Factory Scale: Total Area of: 8000 square meters Factory history: 10 years Production Staff: 60 to 100 |
Certificates: ISO9001:2015 SGS RoHS CE |
|
|
Logistics Ability: Arrange the Mixed logistical for Election delivery as By Air and By Sea, over 10 years’ experience for logistical arrange. | ||
|
Features; Good uniformity and low insertion loss Low Polarization Dependent Loss Excellent Environmental Stability Excellent Mechanical Stability |
Delivery Time: Material Preparation Time: 3 days (or inventory) Production & Assembly Time 7 days Testing & Packaging Time: 2 days Total Delivery Time: 7 days in 350000pcs for safe delivery lead time. The faster delivery could be negotiable. |
|
|
Applications: 1.Asynchronous Transmission Mode(ATM) Package for 50000PCS : 2.Passive optical networks (PON) 3.Fiber to The Home (FTTH) Package dimensions : 31cm*25cm*20CM 4.Local Area Networks (LAN) 5.Cable Television (CATV) 6.Test Equipment | ||
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance aganist copy of BL, Western
Union.
Q 2. how's the delivery time ?
A. usually it will take about 10~15days for production
Q 3. tell me the standard of package?
A. For the small capacity, it uses carton.
