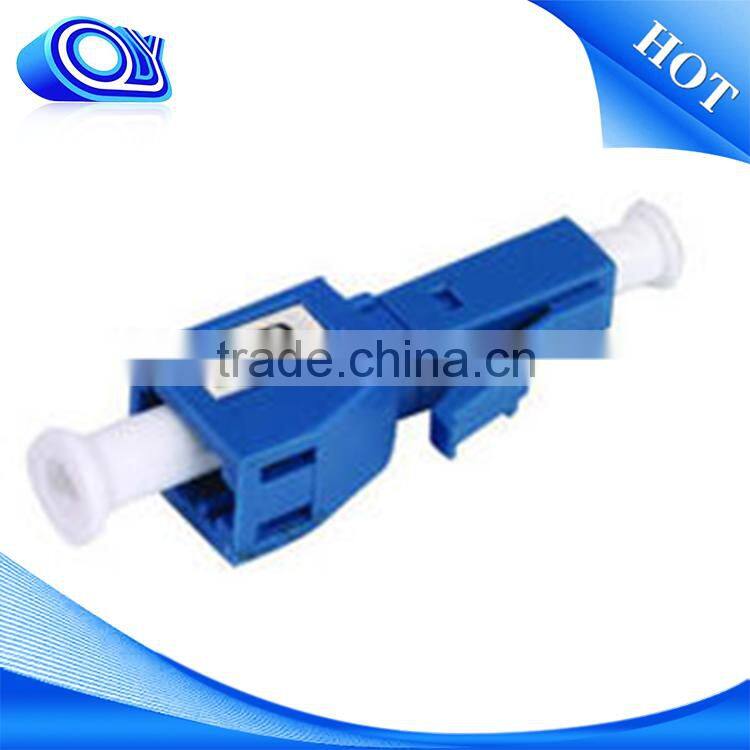

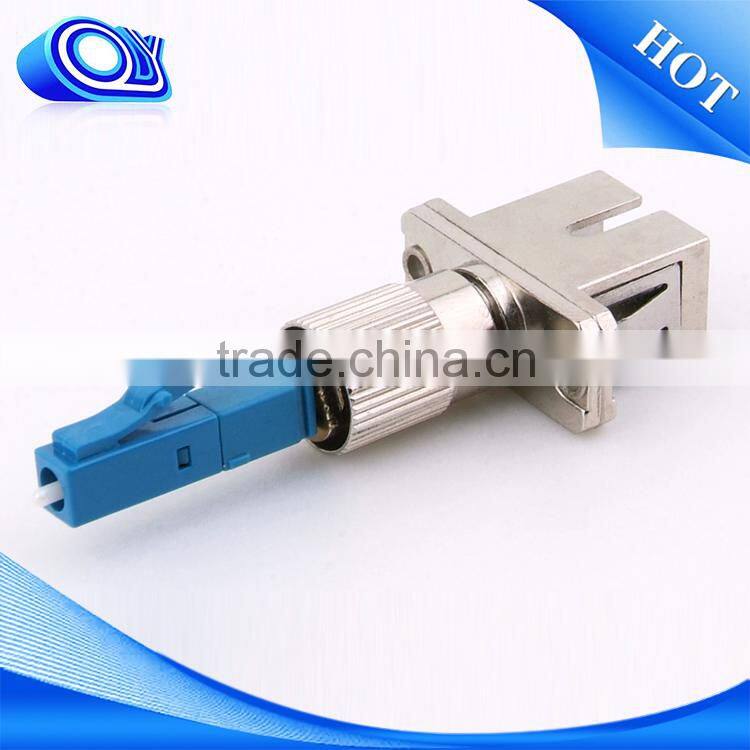

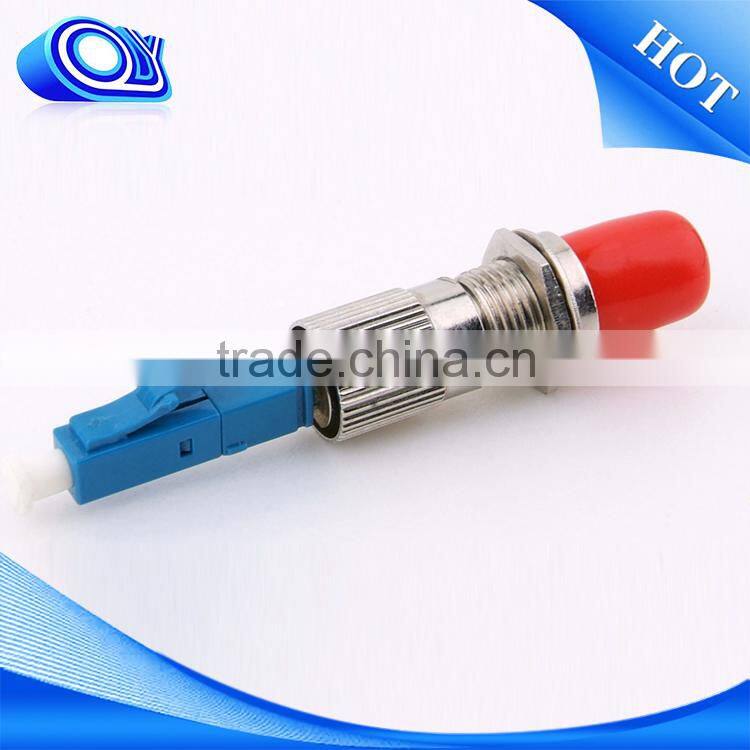

1310nm attenuator and Fiber Optical Attenuator for sall
|
Factory Scale: Total Area of: 8000 square meters Factory history: 10 years Production Staff: 60 to 100 |
Certificates: ISO9001:2015 SGS RoHS CE |
||
|
Logistics Ability: Arrange the Mixed logistical for Election delivery as By Air and By Sea, over 10 years’ experience for logistical arrange. | |||
|
Features; Good uniformity and low insertion loss Low Polarization Dependent Loss Excellent Environmental Stability Excellent Mechanical Stability |
Delivery Time: Material Preparation Time: 3 days (or inventory) Production & Assembly Time 7 days Testing & Packaging Time: 2 days Total Delivery Time: 12 days in 20,000pcs for safe delivery lead time. The faster delivery could be negotiable. |
||
|
Applications: 1.Asynchronous Transmission Mode(ATM) Package for 5000PCS : 2.Passive optical networks (PON) 3.Fiber to The Home (FTTH) Attenuator package dimensions :46 X 33 X 23 CM 4.Local Area Networks (LAN) 5.Cable Television (CATV) 6.Test Equipment | |||
Features
l Low insertion loss and back reflection
l Definable attenuation from 1dB to 30dB
l PC, UPC and APC polish types
l Available with FC, SC, ST and LC terminations
Applications
l Telecommunication Networks
l Local Area Network
l FTTH and FTTx
l Fiber Optic Sensors
l Test & measurement
l DWDM applications
Performance Specification
Optical Performance |
M-F Plug Type |
F-F Adaptor Type |
Testing Wavelength(nm) |
SM: 1310nm/1550nm |
1310nm |
MM: 850nm/1300nm | ||
Attenuation Accuracy(dB) |
1-9dB; 0.5dB; 10-30dB; 10% of Attenuation Value |
|
Return Loss(dB) |
≥50dB (PC) |
≥50dB (PC) |
≥60dB (APC) |
≥60dB (APC) |
|
Input Power (Max.) (mW) |
300 |
|
Durability(dB) |
<0.2dB Typical, 1000 Matings |
|
Operating Temperature(°C) |
-40~+80 |
|
Storage Temperature(°C) |
-40~+85 |
|
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance aganist copy of BL, Western
Union.
Q 2. how's the delivery time ?
A. usually it will take about 10~15days for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton.
