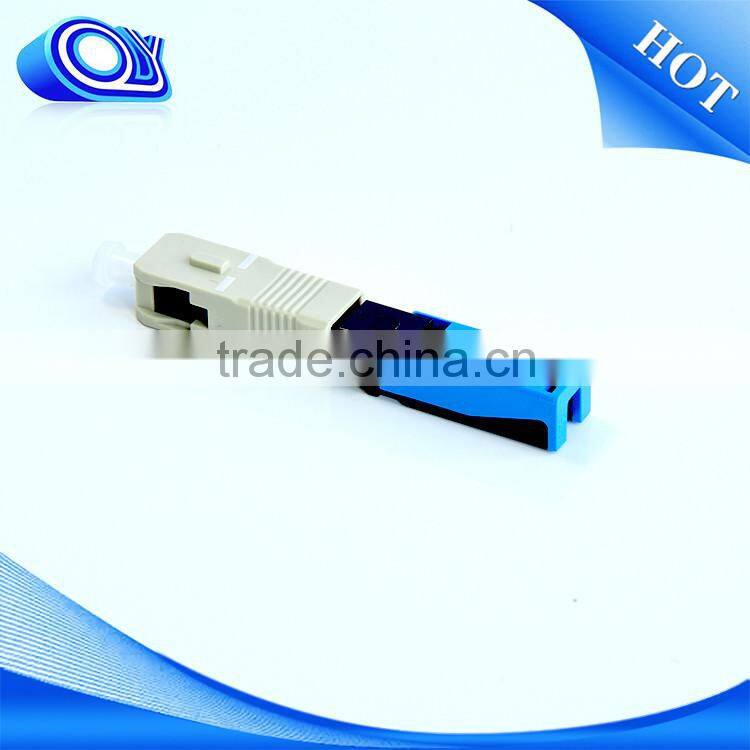

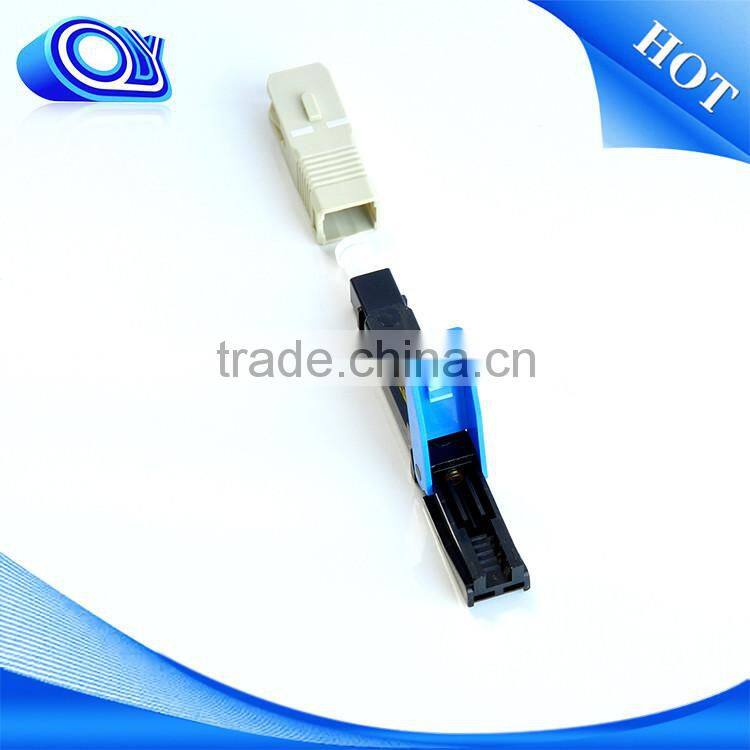

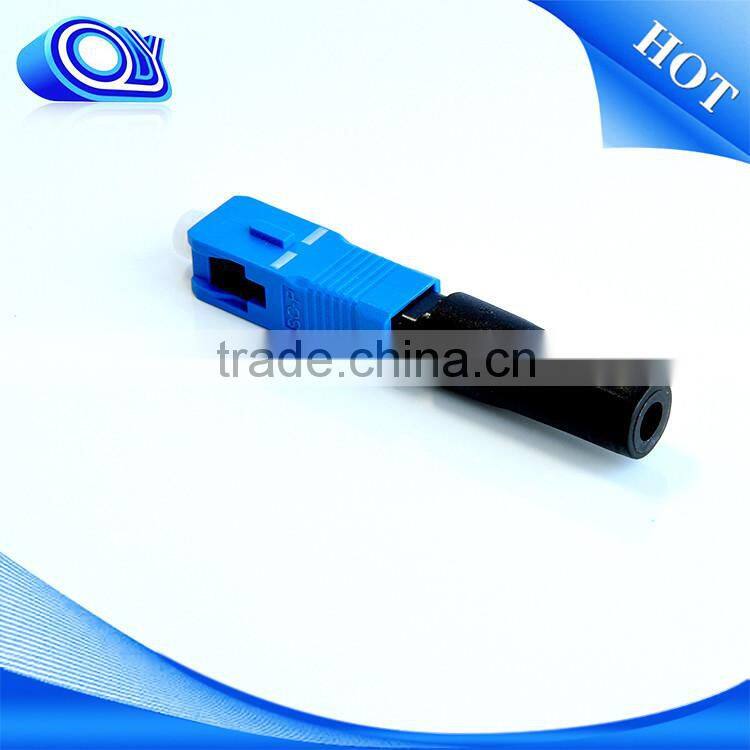

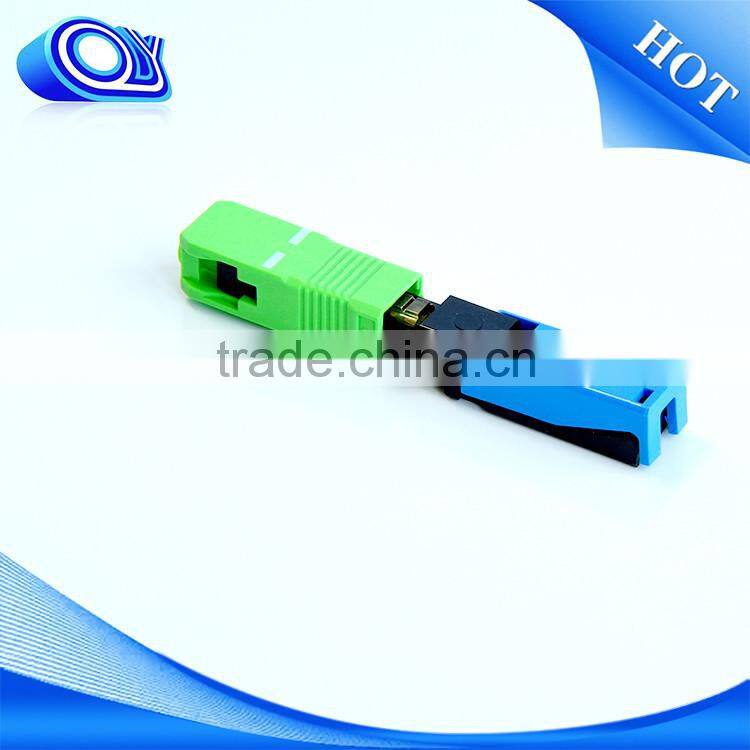

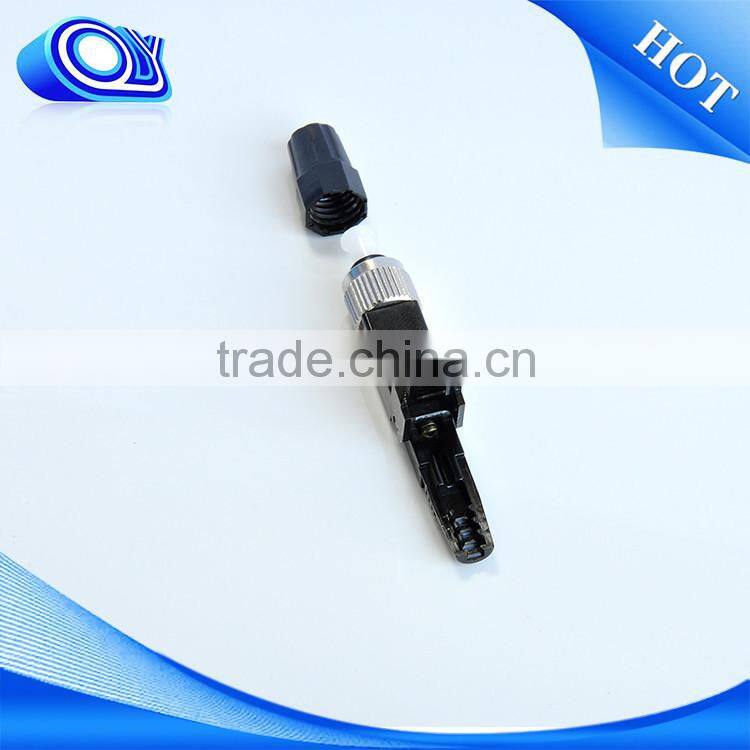

V-Shape SM Simplex SC-PC APC Fiber Fast Connector (FTTH)

V-Shape SM Simplex SC-PC APC Fiber Fast Connector (FTTH) photo-1
V-Shape SM Simplex SC-PC APC Fiber Fast Connector (FTTH) photo-2
V-Shape SM Simplex SC-PC APC Fiber Fast Connector (FTTH) photo-3

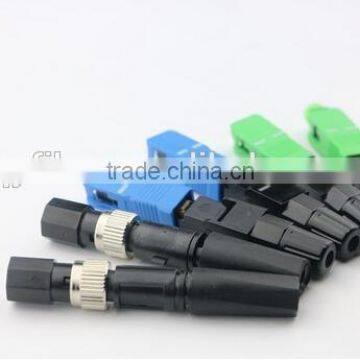

V-Shape SM Simplex SC-PC APC Fiber Fast Connector (FTTH) photo-4
V-Shape SM Simplex SC-PC APC Fiber Fast Connector (FTTH) photo-5
US$ 0.5 - 1 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
QY, QY or OEM
Model Number:
Qingying
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name QY, QY or OEM
Model Number Qingying

V-Shape  SM Simplex SC-PC APC Fiber Fast Connector (FTTH)

 Fast Connector features :



* Single mode and Multimode

* Zirconia sleeves or Phosphor bronze sleeves

* NTT standard compatible

* Available without flanges or with flange for duplex, saving panel space

* SC2 8Port high density for patch panel mount applications

* Meet JIS5974 and bellcore GR-326 standard

* Compliant with IEC874-14 & IEC874-19

* All parts compliant with ROHS



Applications :



* Telecommunication

* CATV

* LAN & WAN

* Network

* Broadband

* FTTH



Parameter

Unit

FC,LC,SC

ST,MU

MTRJ,MPO

SM

MM

SM

MM

SM

MM

PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

Insertion loss(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

Exchangeability

dB

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~+75

-40~+75

-40~+75

Storage temperature

°C

-45~+85

-45~+85

-45~+85

Cable diameter

mm

Φ3.0,Φ2.0,Φ0.9

Φ3.0,Φ2.0,Φ0.9

Φ3.0,Φ2.0,Φ0.9































* Quality always comes first

* Standard quality tests check of all types of products before shipment
* Responsible for after-sales service
* Aiming to get repeat orders from 90% customer after the trial orders
* Making progress with customers together
