China painting Xenon Discoloration Test Machine
Xenon Test Machine adopts the xenon arc lamp that can simulate full sunlight spectrum to reproducedestructive light waves existing in different environments so as to provide the corresponding environment simulation and acceleration test for scientific research, product development and quality control. Xenon Test Machine is approved by many OEMs in the automotive, paints and coatings, and plastics industries as the exclusive platform to deliver accurate, and repeatable results for predicting service life.
Operating principle of our Xenon Test Machine :

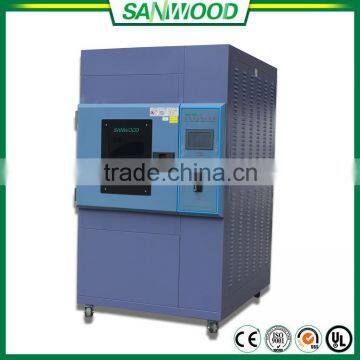

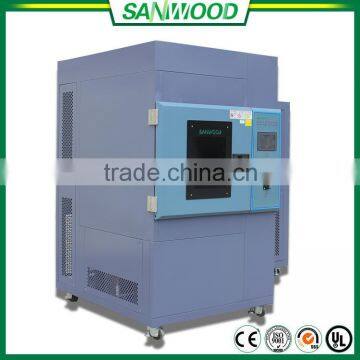

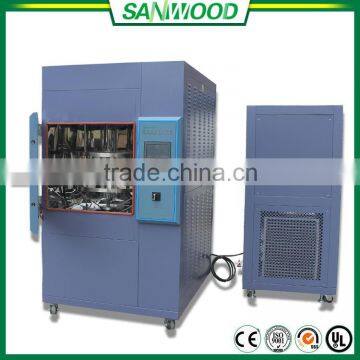

Detail images of our Xenon Test Machine :
Our Xenon Test Machine specification:
| Aging Chamber Model | SM-300XD | SM-800XD | SM-1200XD | |
| Inner size(W*H*D mm) | 600*800*600 | 900*900*900 | 1000*1200*1000 | |
| Water cooled xenon lamp power(kw) | 4.5KW | |||
| Aging Chamber Performance indicator | Temperature range | RT+10℃~90℃ | ||
| Gumidity range (light) | 10%~70%R.H | |||
| Gumidity range (dark) | 10%~95%R.H | |||
| Rainfall time | 1~9999h/59min adgustable | |||
| Rainfall cycle | 1~9999h/59min adgustable | |||
| Illuminant | 280nm~800nm | |||
| Irradiance deviation | ±0.1 W/m2 | |||
| Ultraviolet radiation intensity | 150±8mW/cm2 | |||
| UV illumination distribution | 90% Uniformity of 90% | |||
| Irradiatometer | meet the test requirement | |||
| Irradiance calibration function | Automatic calibration, and meet the requirements of the National Metrology Department | |||
| Xenon lamp power | 4.5KW(life span:2000h) | |||
| Effective radiating area | 190*422mm | |||
| Temperature and humidity control system | Accuracy range | Set location precision :temperature±0.1 humidity±1%R.H | ||
| Temperature and humidity sensor | Platinum resistance.PT100Ω/MV | |||
| Heating system | independent system-wide , Ni Cr alloy electric heating type heater | |||
| Humidity System | External isolated, stainless steel shallow surface evaporative humidifier | |||
| Black Panel Temperature | 40-110℃ | |||
| Water supply system | Bring filter,Automatic control by humidifying water. Cooling water loop xenon lamp | |||
| Temperature controller | Imported weinview color touch screen and PLC control module Siemens Germany | |||
| Cycle system | High quality carbon steel phosphating, electrostatic spray processing | |||
| Material used | Outside mertail | High quality carbon steel phosphating, electrostatic spray processing | ||
| Outside mertail | SUS304 stainless steel plate | |||
| Sample material | SUS304 high quality stainless steel bar | |||
| Door insulation | High temperature aging silicone rubber door seal | |||
| Xenon Lamp Aging Chamber Safety protection | Leakage, short circuit, over temperature, water shortage, motor overheating, over current protection | |||
| Xenon Lamp Aging Chamber Supply voltage | AC380V±10% 50±0.5Hz Three phase five wire system Phase | |||
Frequently asked questions about Xenon Test Machine:
1.Do you have any advantages in your price?
SANWOOD has 8000 production bases in Dongguan, China. Factory direct sales, can reduce the cost of agency for you.
2.May I ask you how do you deliver these Xenon Test Machine ?
We have so many ways of delivery, such as FOB, CIF,etc.
3.Is there a variety of language options for your operating system?
We use Korea SAMWON controller system, it has Russian, English, Chinese, Korean and other languages.
4. How long is the warranty period of your Xenon Test Machine ?
We provide free parts replacement service for accessories with one year.
5. When will you give a respond if your Xenon Test Machine break down?
We will give you guidance by video conference when we receive your need of requirement.
Company culture:
Thanks you for viewing this page, if you are interested in our Xenon Test Machine, welcome to contact me, thank you!
