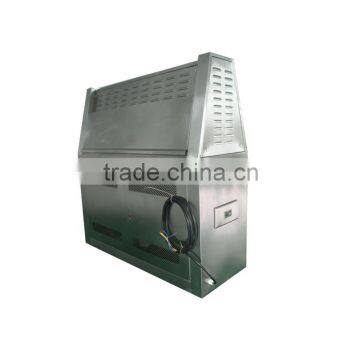

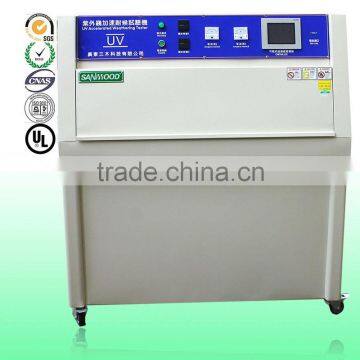

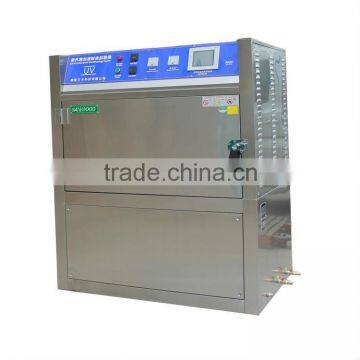

2015 UV aging chamber
Product Description:
Application Standard & Technical Specification |
Ozone Aging Test Chamber. SM-150L-CY. |
Volume and Dimension |
150L |
Internal Testing Room |
W500×H600×D500 mm is the internal testing space size; |
Outer Fully Dimension |
W1350×H1550×D950mm is the outer fully machine size |
Ozone Concentration: |
0~2000 pphm(direct reading setting) |
Concentration Deviation: |
10% |
Test Bin Temperature: |
Indoor temperature measurement Range~+80℃ |
Temperature Uniformity: |
±2℃ |
Relative Humidity: |
Measurement range above 60% |
Specimen Holder rotating speed: |
0~50mm/s |
Dynamic Condition Pull-up Frequency: |
0.5Hz |
New Type Specimen Holder: |
Each fixture can install test article, stretch can meet I-shaped dumbbell panel and actual artifacts |
Test Gas Flow: |
0-80L/min |
Test methods divide into dynamic condition and static condition:
01 |
Motor driver specimen holder installation: meet static method extension test, specimen orbit can meet principle of cycloid trajectory. |
02 |
Auto ozone concentration digital controller. |
03 |
Double beam “QUA” non-deviation UV ozone tester. |
04 |
Auto digital online measurement. |
05 |
Keep the metrological verification adjustion interface. |
06 |
Auto-tuning ozone concentration/ humiture data setting controller PID for easy operation. |
Equipment Main Texture :
01 |
High grade wear-resisting paint coating shell & SUS304 liner. |
02 |
AI digital smart procedure control accommodometer. |
03 |
Gas flowmeter control the all levels of gas flow accurately, match “QUA” non-deviation UV ozone tester |
04 |
Bill-Lambert law measurement application software (internationally recognized). |
05 |
Be loaded with gas purifier, thermostatic bath, active carbon assimilation and silicone tower drier. |
06 |
The ozone air parallel to the sample. |
07 |
Optional far-end monitoring software (print the test data by PC). |
08 |
Prepared the classic chemical test with ozone concentration interface. |
09 |
Set the voltage-stabilized source in test chamber. |
Equipment Main Texture :
01 |
High grade wear-resisting paint coating shell & SUS304 liner. |
02 |
AI digital smart procedure control accommodometer. |
03 |
Gas flowmeter control the all levels of gas flow accurately, match “QUA” non-deviation UV ozone tester |
04 |
Bill-Lambert law measurement application software (internationally recognized). |
05 |
Be loaded with gas purifier, thermostatic bath, active carbon assimilation and silicone tower drier. |
06 |
The ozone air parallel to the sample. |
07 |
Optional far-end monitoring software (print the test data by PC). |
08 |
Prepared the classic chemical test with ozone concentration interface. |
09 |
Set the voltage-stabilized source in test chamber. |
Performance Index:
Temperature Range |
25℃~80℃ |
Moderation Range |
50%~95%R•H |
Ozone Concentration |
0~2000pphm |
Temperature Fluctuation |
±0.5℃ |
Ozone control Precision |
±10% |

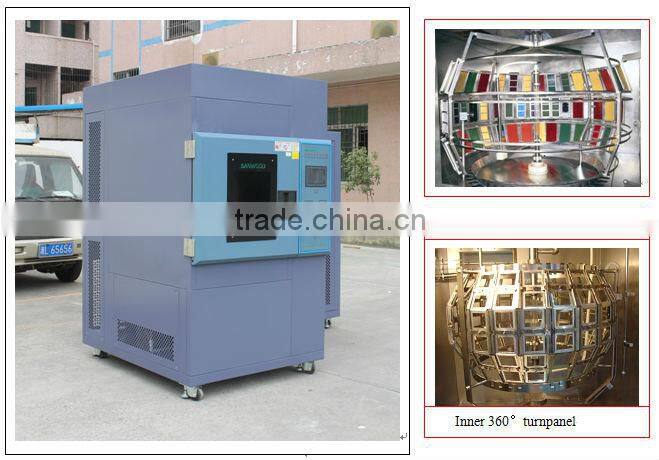

Frame Rotate Speed |
360°rotation (1 circle/minute) |
Control System
Controller |
Color LCD touch screen |
Unit of Time |
H.M.S.the Max is 9999H |
Ozone Concentration Analysis |
Import concentration analysis apparatus, 4~20mA output |
Ozonator |
High pressure voiceless discharge tube |
Acquisition System |
Siemens PLC modules |
Humidity System |
Outer isolation type, stainless steel boiler surface evaporative humidifier |
Dehumidification System |
Adopt evaporator coil to dehumidify |
Water Supply System |
Automatic control water supply, and recycle residual water for reduce consumption |
Heating System |
Independent system, nichrome electrical Heater |
Ozone Concentration |
England ozone concentration sensor with standard signal output and sampling |
Ozonator |
Voiceless discharge tube type ozonator |
Company information:
Configuration & Structural Features :

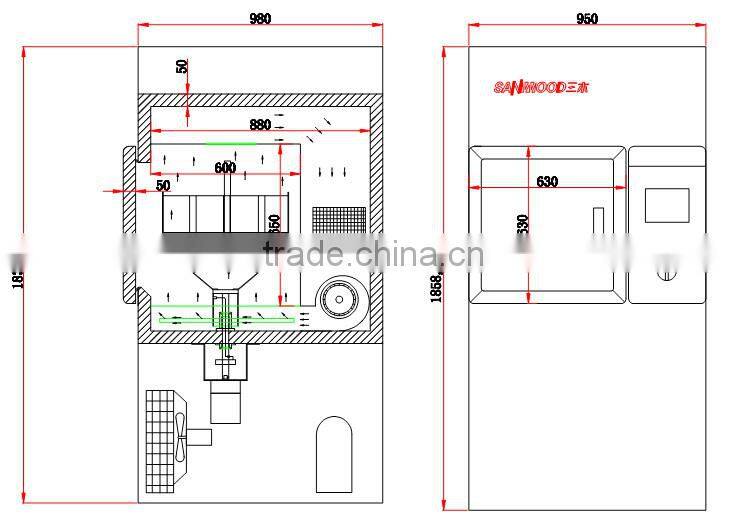

1, Air loop device: built-in loop air duct, Test air flow evenly from the top down parallel to the surface of the specimen.
2, Adopt integration ozone concentration, temperature and humidity controller (setting method by tickle touch-tone), high integration level, good unfailing performance, LED display the temperature (0.1℃), humidity (0.1%RH), ozone concentration (1pphm), PID set value control and easy operation.
3, Electromagnetic type air pump offer the air source without oil, ensure the air circuit system running reliably in long time.
4, Double-speed UV light ozonator was developed by Shanghai university & our technology cooperation, which according international recognized standards, stable performance, automatic zero control, non-ozone cold light ultraviolet lamp, long life, high precision.
