universal tensile test machine direct manufacturer/factory
The tensile test machine is designed for measuring strength in tension,compression,bending, tearing,
peeling,shearing and adhesion testing.It is widely used for metal,geotextile,hard plastic,timber,rubber and many other materials.
we have different tensile test machine for you to choose.OEM service is available
Model |
SM-8002(Computer control standard version) |
Volume |
100,200kg,500kg(optional) |
Unit switchover |
N,KN,Kgf,Lbf,Kpa,MPa |
Resolution |
1/500000 |
Load precision |
±0.25%F.S |
Effective measurement range |
0.25%~100%F.S |
Effective extension width |
650mm |
Effective measurement |
130mm |
Test speed range |
0.001~500mm/min |
Deformation measurement |
Large deformation:10~800mm,small deformation:gauge length25mm, deformation10mm |
Deformation measurement precision |
±0.5% |
Test bench installation |
Machine limit |
Test bench lifting gear |
Auto control quick/slow speed and electronic control |
Test benth reverse back function |
Auto or manual operation return, auto carriage return in rupture |
Overload protection |
Auto protect machine when the load exceed Max 10% |
Main engine size |
500x600x1200mm |
Main engine weight |
(about)95kg |
Please note the above technical parameter is for reference only! For more detailed information, please contact us!

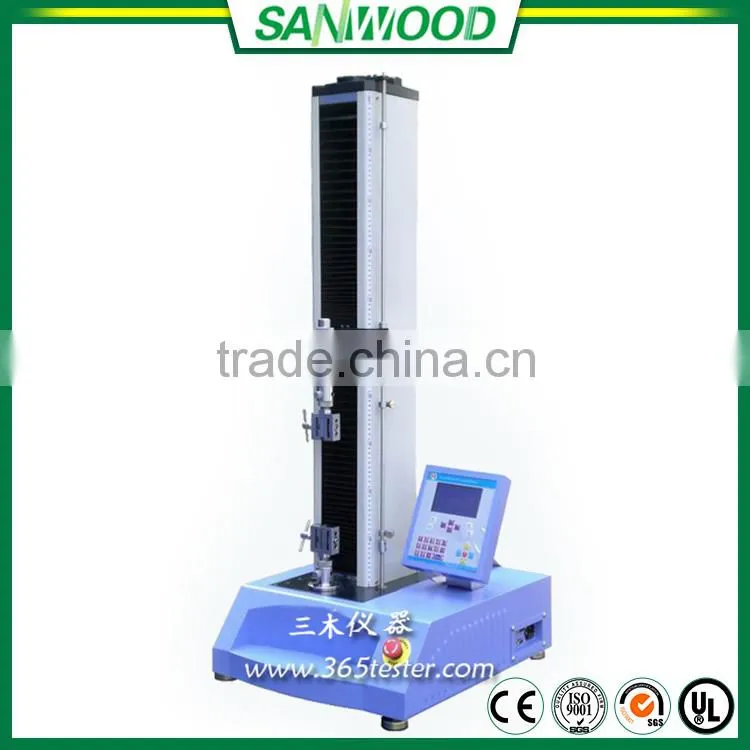

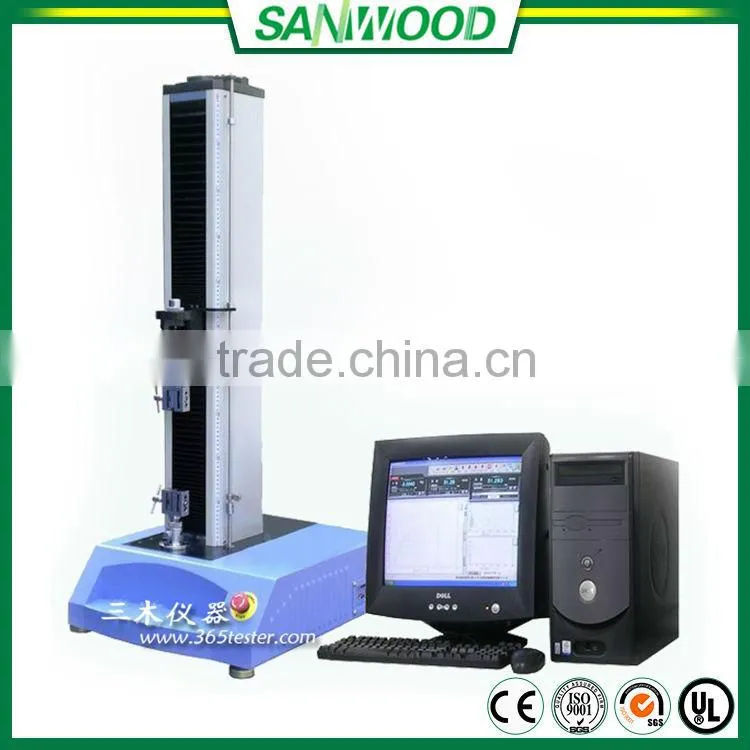

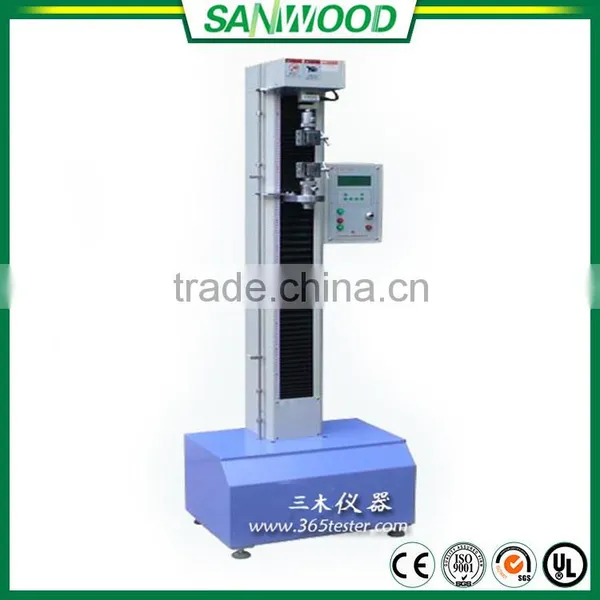

tensile test machine Pictures show
Features
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily.
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
Why choose Sanwood products?
Technical advantages:
Sanwood technology Co.,Ltd possess more than 20 years experiences, hardware, software R & D ability and machinery design ability. We have a powerful R & D group with rich experiences, good command of skills, open minds and creative ability, especially excellent in “Case By Case” .Our products is according with QC/T743, ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE etc international testing standards.
Company advantages:
(1)Guangdong Sanwood technology Co.,Ltd was established in 1995, focus on development, manufacture and sales test equipments for new energy, new materials, electric batteries and automobiles.
(2)Plant area: 12,000 sqm
(3)Production capacity: 3,000 set per year
(4)Major products: constant temperature and humidity test chamber, environmental climatic chamber, salt spray test chamber,sand test chamber,UV test chamber, Xenon test chamber, universal tensile tester, vibration tester,etc.We provide reliable products & after-sales services, hope to work with you and all won.

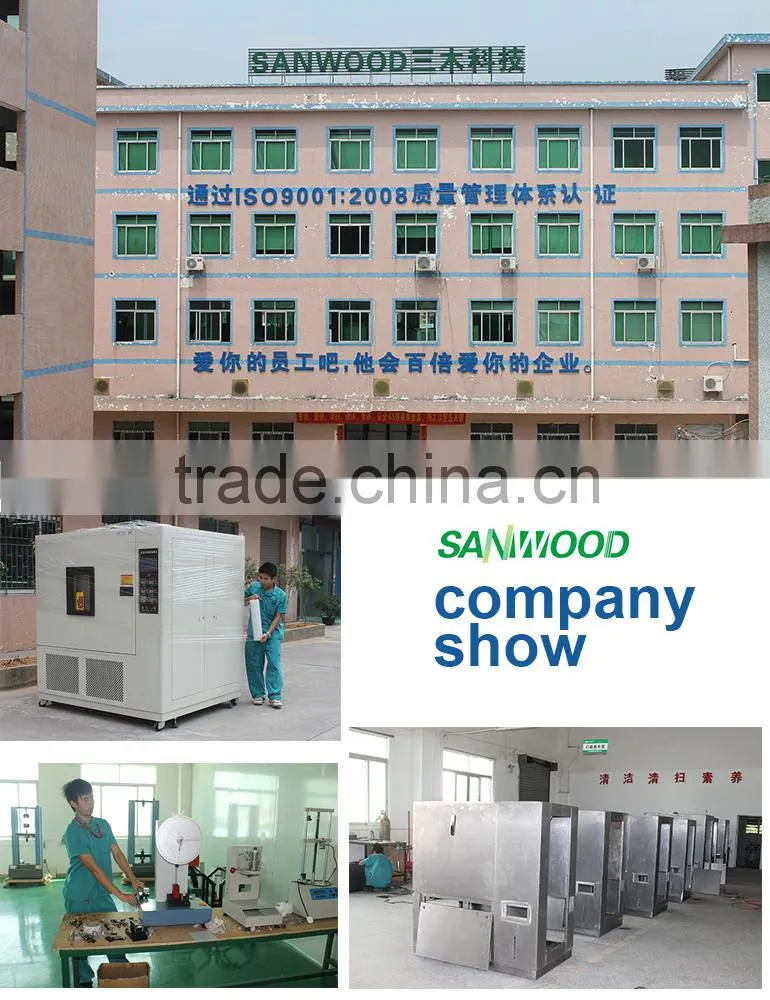

Sanwood Company Show
Company introduction
Sanwood Environmental Chambers Co., Ltd. is established in 1995.Our factory is a highly professional and experienced manufacturer of environmental chamber / climatic chamber. Our main products include environmental chamber,thermal shock chamber,tensile machine,impact tester,Xenon lamp chamber,UV chamber,Ozone test chamber,Industrial Ovens,Rain chamber,sand chamber,Vibration Table,Salt spray tester,etc.
Sanwood Environmental Chambers Co., Ltd has got lSO9001certificate,ce certificate. Our company focuses on strict quality control to meet international standards, which enable us to have a very big market both at home and abroad.
Till now, our products has been sold to many customers from such fields as electronics, batteries, TP, semiconductor, LED electronics, plastic parts, automotive, military, universities, aerospace, scientific research, measurement, quality control, solar photo-voltaic, etc. So we have rich experience. We can provide professional solutions for you to meet your requirements and budgets.
our company is located in Dongguan,Guang Dong. Welcome to visit us! We are looking forward to establishing a very good cooperative relationship with you!

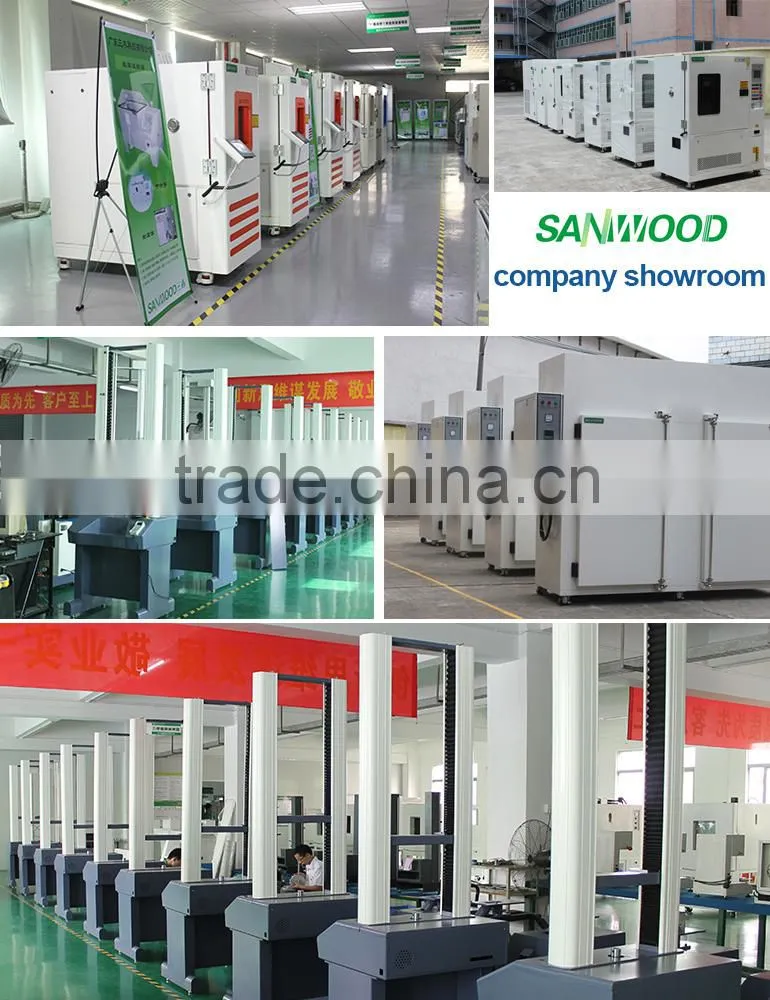

Company showroom
Cusomters from all over the world visit Sanwood because of our good products and professional service! Hopefully we can also establish a long-time cooperative relationship in the near futuer. We will work hand in hand with you to meet your requirements and budget.
Every year, we attend lots of big and famous exhibitions both at home and abroad , welcome to visit exhibition booth!
Sanwood has got ISO and CE certificates. What's we have many product patent certificates.
Thank your for viewing this pape. we appreciate your time. Have a nice day! =)
Click Homepage to get more information about Sanwood right now!
