CE approved powder dust coating chamber in China
Product Description
Equipment summary:

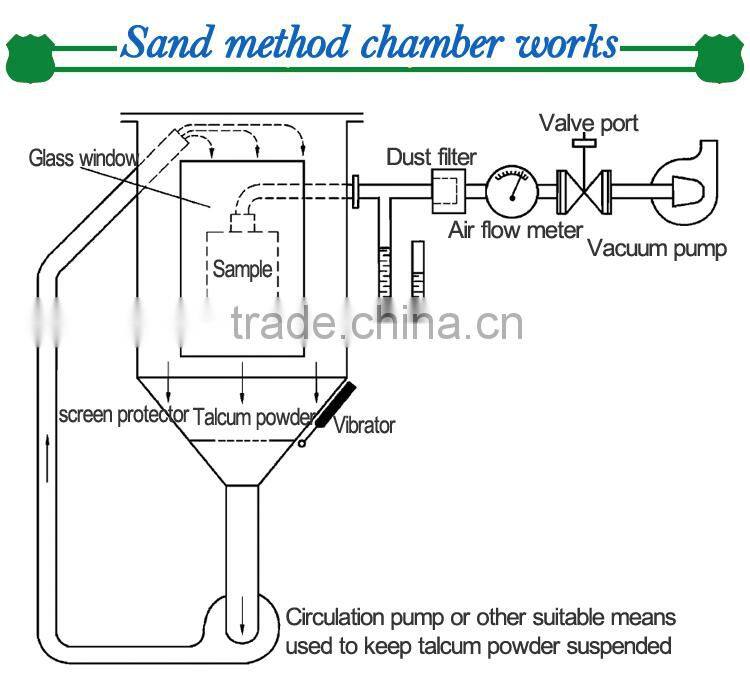

powder coating chamber : Dust test chamber is suitable for all kinds of auto parts to do dust and dust test, test
parts include a light. Meter. Electric dust jacket. Streering system. Door lock, etc.
Corresponding standard:
powder coating chamber has a wide range of temperature and humidity control, which can meet the national standard GB4208GB/T2423.37-198
Applicable industries:
Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles,
auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control.
Techincal parameter:
| Technical specification parameter of powder coating chamber | |||
| Constant Sand Dust Chamber Model | SM-SC-500 | SM-SC-800 | SM-SC-1000 |
| Inner size(W*D*H)mm | 800*800*800 | 900*900*1000 | 1000*1000*1000 |
| Studio volume | 500L | 800L | 1000L |
| Temperature range | RT+10~70℃ | ||
| Vibration time | 0-999 hours adjustable | ||
| Total test time | 0-999 hours adjustable | ||
| Timing accuracy | ±1minutes | ||
| Relative humidity | 45%~75% (not shown) | ||
| The standard line of metal mesh | 50um | ||
| Standard distance between lines | 75um | ||
|
Constant Sand Dust Chamber Talc powder |
2~4kg/m | ||
| The metal mesh standard nominal diameter | 75~100μm | ||
| Sand dust particle size | 10um(5 to 10 μm particle size occupied more than 50 um. | ||
Constant Sand Dust Chamber Voltage |
220v/50Hz (equipped with test power interface) single phase three wire system | ||
Constant Sand Dust Chamber Power |
3KW | ||

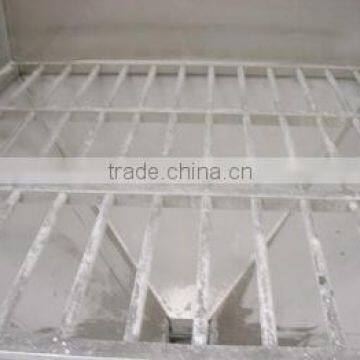

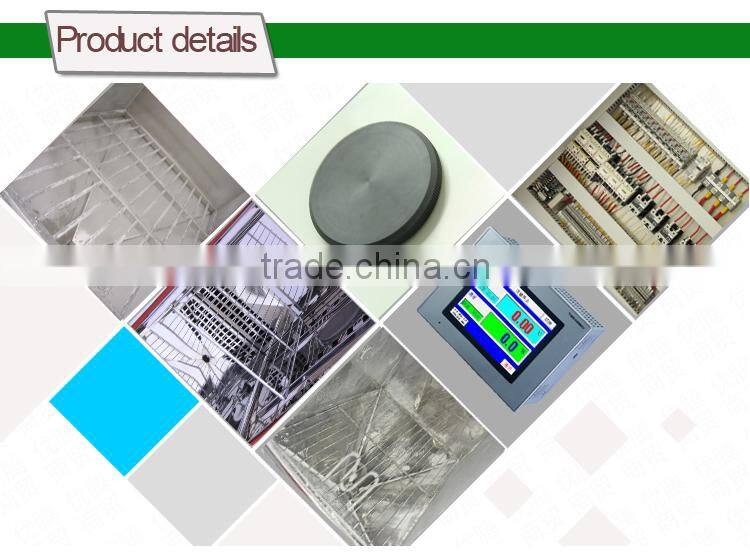

Detailed Images

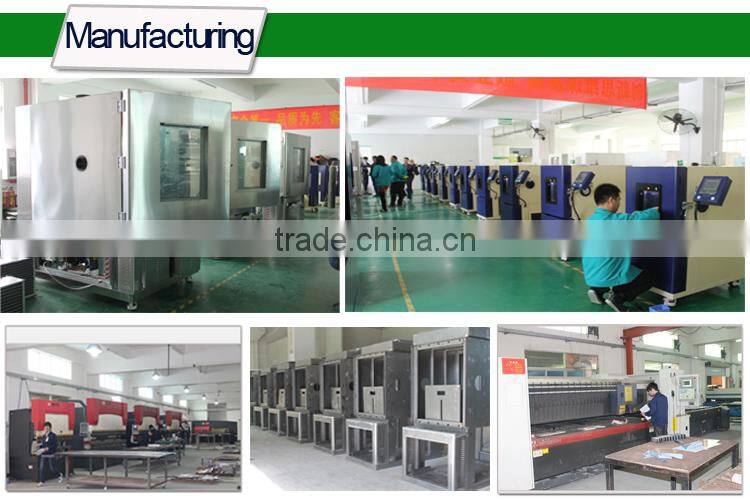

We have independent quality control department, each production process will pass through
the three procedures. If it is not qualified powder coating chamber , it will be returned reproduction.
1.Do you have any advantages in powder coating chamber ?
SANWOOD has 8000 production bases in Dongguan, China. Factory direct sales, can reduce the cost of agency for you.
2.May I ask you how do you deliver powder coating chamber ?
We have so many ways of Aging Chamber delivery, such as FOB, CIF,etc.
3.Is there a variety of language options for your operating system?
We use Korea SAMWON controller system, it has Russian, English, Chinese, Korean and other languages.
4. How long is the warranty period of your powder coating chamber ?
We provide free parts replacement service for accessories with one year.
5. When will you give a respond if your equipment break down?
We will give you guidance by video conference when we receive your need of requirement.
The above is some high frequency questions about " powder coating chamber ", Please contact us freely, we are always here to support you.
PARTNERS
AFTER SALES SERVICE
All of our powder coating chamber will be checked strictly before leaving the factory and have 12 months warranty
Sanwood promise to repair the machine under the ordinary usage damage rather than improper operation
REPAIR SOLUTIONS:
-
we provide the spare parts with you and also provide the solutions of repairing the equipment.
- we will delegate our technical engineer to your company to repair the chambers
- send back the industrial usage powder coating chamber and we will repair it until you are satisfied
UV test chamber xenon test chambers environmental chamber
Thank you for viewing this page, please feel free to contact me!
