Help CenterUniversal Material Resistance Water Proof Test Chamber
Related Products
-
Rain/spray Test Chamber Water Proof Test ChamberUS$ 3,500 - 7,500MOQ: 1 Set -
Customization Industrial/lab Fog/water/Rain/Spray ProofUS$ 3,500 - 7,500MOQ: 1 Set
-
Touch Screen Controller IPX1-IPX4 Water Drip Water Spray Proof Test ChamberUS$ 3,500 - 7,500MOQ: 1 Set
-
ESPC High Quality Water-proof Test ChamberUS$ 3,500 - 7,500MOQ: 1 Set
-
Water Proof Weather Test ChamberUS$ 3,500 - 7,500MOQ: 1 Set
water proof test chamber
1. Meet the requirement of IEC60529 standard IPX3 water pouring test and IPX4 water splash test.

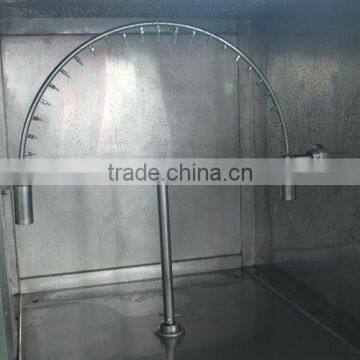

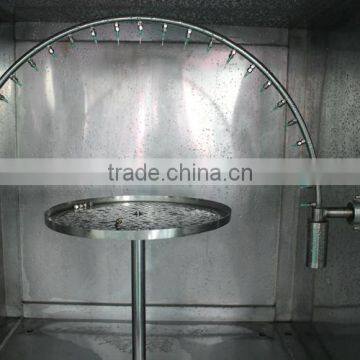

2. The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During test, the sample would spin around the center line.
3. Can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.
4. Use Mitsubishi PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
5. Servo drive mechanism, guarantee the pendulum pipe angle of precision, the overall pendulum tube structure for hang a wall.
6 Best after sales service: One year free parts maintenance.
7 Customization is available & welcomed.
water proof test chamber Equipment summary:
Rain Test Chamber is used to test anti-rain and waterproof performance for products, the products such as .steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.
JIS D0203, D5500, SAE J585e, CNS 7138
water proof test chamber Applicable industries:
Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles,
auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control
| Model | SM-LY-500C | SM-LY-1000C |
|
Studio size (D*W*H mm) |
800*800*800 | 1000*1000*1000 |
| Test bench area | Ø500mm | |
| The Pipe hole Size: | number 25 | |
| Put the tube aperture water | O 0.4mm (ordering instructions) | |
| Dripping bore spacing | 50mm; (can be adjusted according to customer requirements) | |
| Ring radius | 400mm | |
| The diameter of the spray pipe | Ø16mm; | |
| Swing angle | 0-270 degree (adjustable) | |
| Swing speed adjustment | 0-20 times (adjustable) | |
| Test bench speed | 0 ~ 20 /min (adjustable) | |
| Rain Test Chamber Test time | 10min | |
| Rain Test Chamber Test area | 400mm, the bearing capacity of 15Kg, 0 ~ 300mm adjustable shelves. (water jet to the sample distance) | |
| Rain water pressure | About 80Kpa | |
| spray water test chamber Water supply | According to the needs of regulation | |

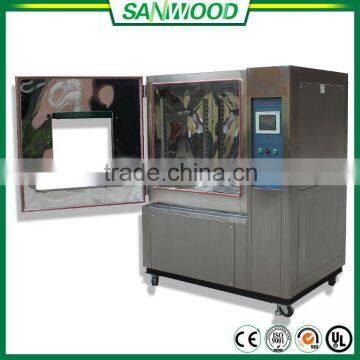

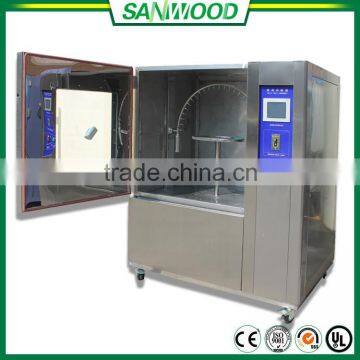

Detailed Images of our water proof test chamber
We have independent quality control department, each production process will pass through
the three test. If it is not qualified products, it will be returned to re-production.
1.Do you have any advantages in Rain Test Chamber?
SANWOOD has 8000 production bases in Dongguan, China. Factory direct sales, can reduce the cost of agency for you.
2.May I ask you how do you deliver Rain Test Chamber?
We have so many ways of Rain Test Chamber delivery, such as FOB, CIF,etc.
3.Is there a variety of language options for your operating system?
We use Korea SAMWON controller system, it has Russian, English, Chinese, Korean and other languages.
4. How long is the warranty period of your environmental chamber?
We provide free parts replacement service for resories with one year.
5. When will you give a respond if your Rain Test Chamber break down?
We will give you guidance by video conference when we receive your need of requirement.
