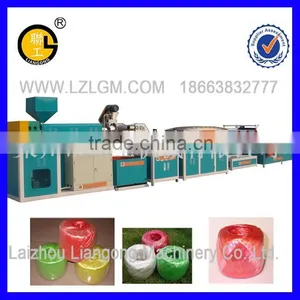

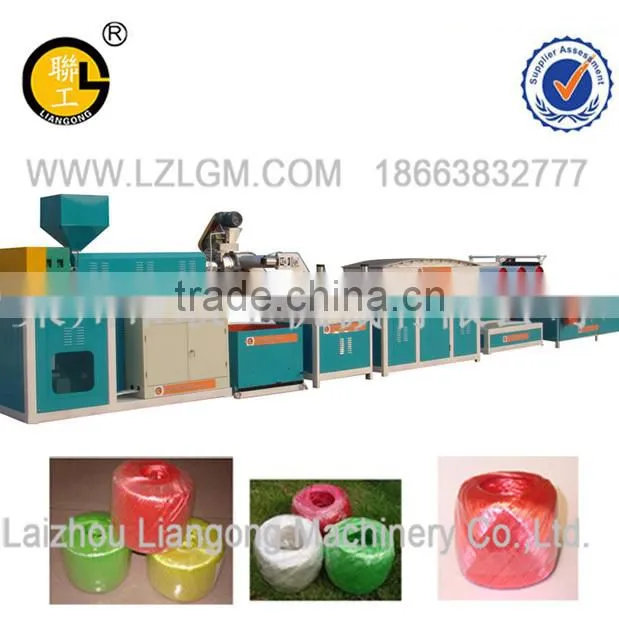

Help CenterPP Split Film Slitting Machine/plastic Film Slitting Machine/plastic Rope Making Machine
Related Products
-
Tearing Film Rope Extrusion Machine/plastic Film Machine/Packaging Rope MachineUS$ 35,000 - 50,000MOQ: 1 Set -
LGSJ-80 PP Vertical Tear Film Blowing Equipment/rope Making Machine/pp Tearing Film MachineUS$ 35,000 - 50,000MOQ: 1 Set
-
Plastic Tear Film Unit and PP Tearing Film Extrusion Machine/Plastic Rope Extruder/PP Rope Twisting MachineUS$ 36,000 - 50,000MOQ: 1 Set
-
Plastic Rope Machine for PP PE Fiber/rope Making MachineUS$ 8,000 - 15,000MOQ: 1 Set
-
LGSJ-90 Price Vertical Blown Tearing Plastic Film MachineUS$ 10,000 - 50,000MOQ: 1 Set
LG-SLM-65 Tearing Film Production Line Configuration
1. LGSJ65/28 extruder
Center height 1000mm
Screw speed 0~ 70 rev / min
1.1 Gear box
Hardened Jiangsu International
Reducer Model ZLYJ146
1.2 Screw barrel parameters
Screw diameter Φ65mm
Screw diameter ratio 28 / 1
Screw material 38CrMoAlA
Screw structure Mixing screw-type structure
Heat treatment Nitriding heat treatment
Surface hardness HV940 ~ 1050
Nitriding depth 0.6 ~ 0.7mm
1.3 barrel heating and cooling parameters
Barrel heating infrared heater 3 section 10KW
1.4 Main motor parameters
Speed mode frequency control mode
Motor power 15kw
1.5 Electric Control
Temperature control table intelligent digital
Low-voltage electrical Chint
2. Extrusion die
Vertical head 650mm
Steel material 45#
Heat treatment Quenceing process
Processing Technology mirror finishing
Surface treatment hard chromium plating
Heating mode stainless steel one-piece heating
Heating power 3.5kw
3. Traction cutting machine
Roller length 700mm
Motor Model Y90L-4
Motor Power 1.5kw
Speed adjustment mode frequency control mode
4. Heating plate
Heating plate power 8kw
Heating plate length 2000mm
5. The second tractor
Motor Model Y132S-4
Motor Power 5.5kw
Speed adjustment mode frequency control mode
6. Ten-position double-sided friction winder
Drive Mode double friction
Motor Model Y112M-4
Motor Power 4kw
Oscilating motor power 1.5kw
Speed adjustment mode frequency control mode
7. Summary
Production capacity 30-50kg / h
Three phase supply 380V 50HZ 48KW
