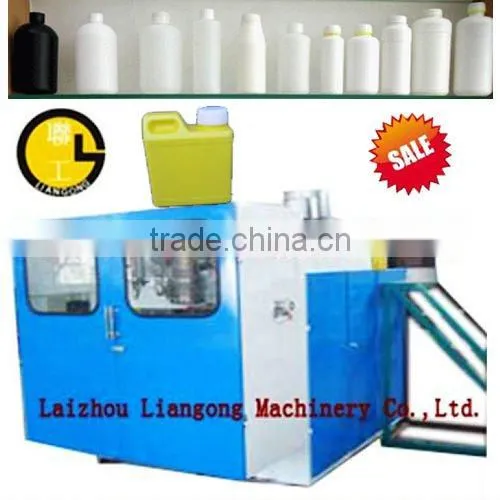

1L-20L Full-automatic plastic blow molding machine
Performance and characteristics:1L-20L full-automatic plastic blow molding machine matched with computer control,frequency conversion,Nitriding screw cylinder matched with the mixing head and material tank nose.With the covering film nose,producing the double layer plastic cask(bottle),it can bring the transparent liquid line,single color can 2 pieces bottle or 4 pieces bottle in one mould.Production capacity:60-120mould/hour.
Product application:
It’s mainly used in a variety of 1L-20L oil bottle,chemical bottle,beverage bottle and plastic cask.
The mainly technical parameters:
Large capacity that blow molding the most |
20L |
The template size(W×H) |
600×500mm |
Clamping force |
50KN |
Min. mould thickness |
120mm |
Max. space between platens |
600mm |
Host computer screw diameter |
75mm |
Screw L/D ratio |
25/1 |
One pair of machines screw diameter |
30mm |
Screw L/D ratio |
30/1 |
Liquid location line screw diameter |
25mm |
Screw L/D ratio |
25/1 |
Screw speed |
20-60rpm |
Max. plasticating capacity(PE) |
45kg |
The electrial machinery merit rate |
15KW |
Extruder driving power |
7.5KW |
Heating power |
16KW |
Number of barrel zone |
11 |
The machine weight(T) |
3200kg |
The mould size outside(L×W×H) |
2.9×1.7×2.5m |
