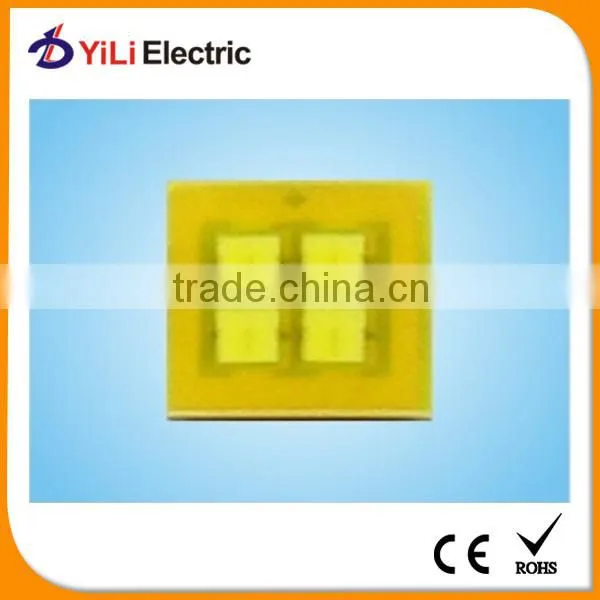

LED new product CSP2525 LED 10W flip chip LED light for car

LED new product CSP2525 LED 10W flip chip LED light for car

Specifications

1. Power: 10W
2. Luminous Flux: 100-160lm/W
3. Color temperature: 5000-7000k
4. CE RoHS Compliant

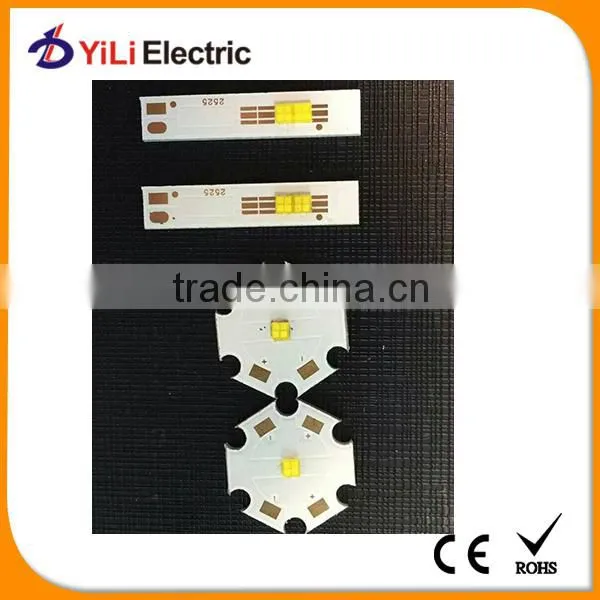

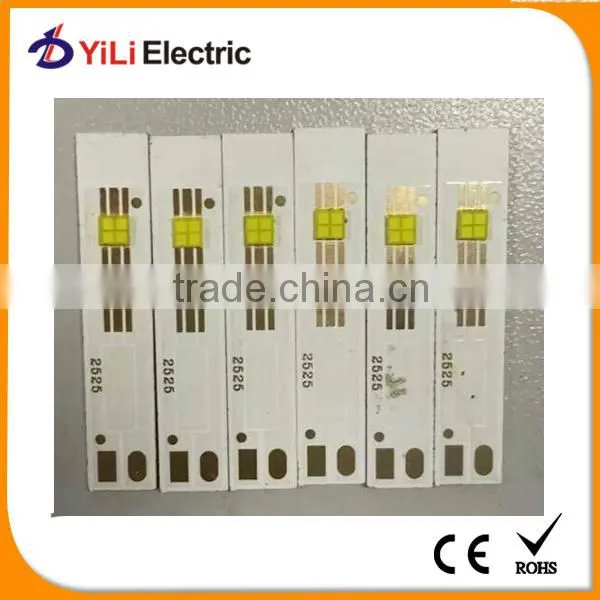

5. PCB is optional

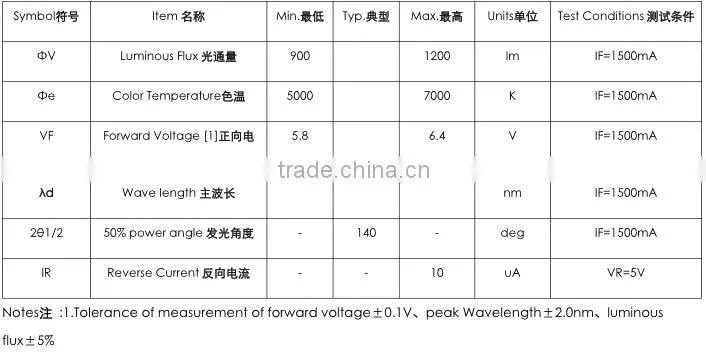

Typical Optical/Electrical Characteristics @Ta=25℃:

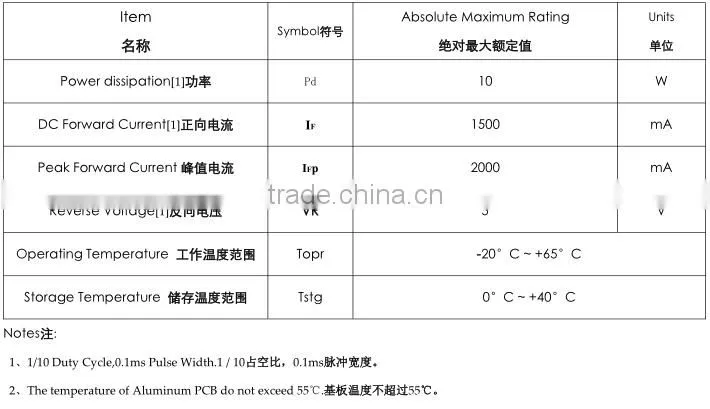

Absolute Maximum Ratings@Ta=25℃:

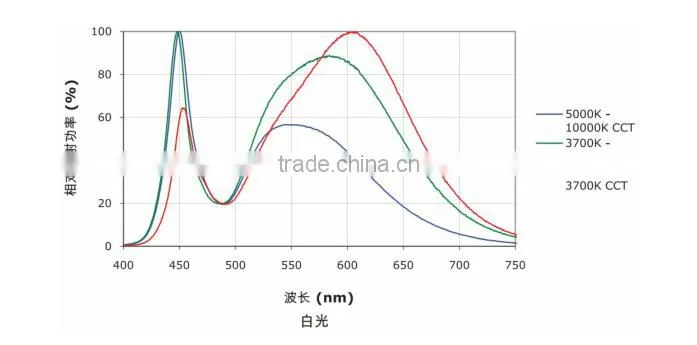

Typical Optical/Electricl Characteristics Curves:

Relative Intensity vs. Ambient Temperature:

Forward Volage vs.Forward Current:

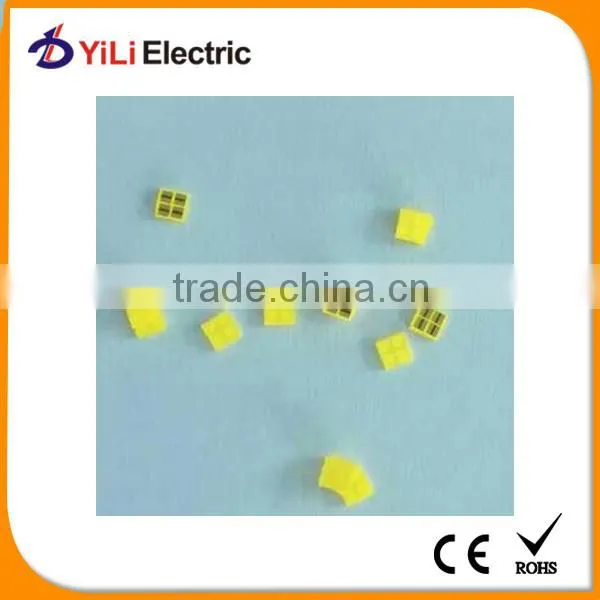

• New technology, CSP, Chip Scale Pacakage
• Philips Lumileds chip brand
• Chinese first batch
• Philips Lumileds best partner in Mainland China
• High stability
• Good heat dissipation performance
• Never burn out
• Wholesale Price
• High quality
• Really in Stock (Origina,Brand New)
• High-reliability and long life-span
• Energy consumption saving
• 1-3 days Lead Time
• 2-3 years Warranty
• OEM ODM acceptable

1. Low light degradation: Continous lighting 2000 hours almost 2% light degradation
2. High CRI: 70-90 is availble (Optional)
3. High bright Luminous Flux: Up to 100-160lm/W

4. Working Current: 350mA

5. Forward voltage: 2.8-3.2V

6. Color temperaturer: 2700-10000k (Optional)

7. High consistency in light color, high cost-effective
8. Adopt Famous LED brand Chip: Philips Lumileds
9 Instant direct on time: <0.0001 s
10. Phospnor Powder: USA Intermatix (Good phospnor have better performance)
11. Used the advanced equipment: ASM LED solid crystal machine, ASM welding machine, MUSASHI Powder
12. Spectrophotometry machine: EVERFINE (Make sure the same BIN No. For our customers)
13. Quality guarantee: 3 Years
14. Long life-span: 50000 hours above
15. Super excellent heat conduct design

 Delivery Way & How to Check

• FedEx/DHL/UPS/TNT for samples, Door-to-Door;
• By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
• Customers specifying freight forwarders or negotiable shipping methods!
• Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
• Tracking number will be sent to you when we have shipped the products; you can check your parcel online.
