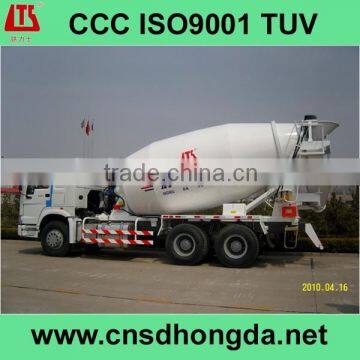

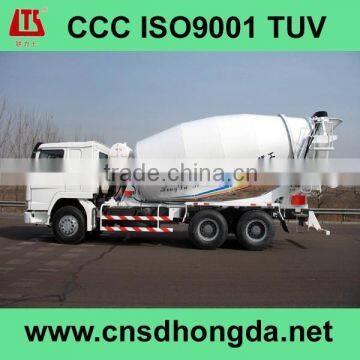

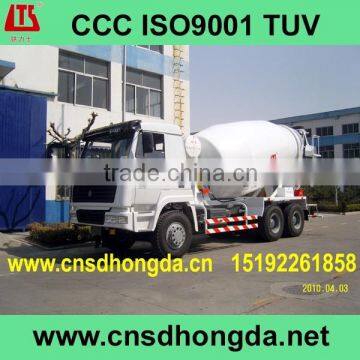

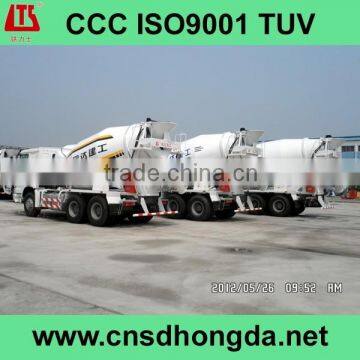

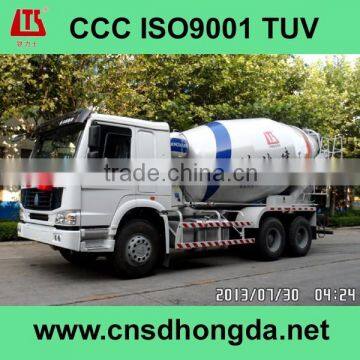

Excellent Performance! Concrete Mixer Truck HDT5313GJB
with CCC/ISO9001 Certificates on Sale
TLS(Iron Giant) Brand, Famous Trademark of China
CCC/ISO9001 Certified
The HONGDA truck-mounted concrete mixer is independently developed by SHANDONG HONGDA GROUP on the basis of absorbing advanced domestic and foreign technologies. The product is mainly used for mixing and transporting concrete mixture between long distances. It can effectively delay pre-hardening, avoid stratification and eduction, and ensure construction quality and speed. The HONGDA series of truck-mounted concrete mixers can be divided into various models, such as 6m³, 8m³, 9m³, 10m³,12m³,14m³ and 16m³, which can be matched with any special domestic and foreign chassis according to customers’ choices. The driving system of the mixing drum adopts the closed-type hydraulic system pump, motor and reducer which are imported from the USand Germany with original packaging. The necessary hydraulic accessories such as the oil tank, radiator, filter and rubber hose connector are all imported parts. All this ensures the hydraulic system a long service life. The mixing drum body and the double-logarithmic variation-parameter helical vanes are all made of fine-grain abrasion-resistant steel plates specially used for the B520JJ mixing drum made by Shanghai Baosteel Company. All the quick-wearing parts like the feed hopper and discharge hopper chutes which have much contact with concrete are also armored with abrasion-resistant steel plates, which correspondingly ensure the product a rather long service life. Not only are many mixing arms designed in the mixing drum, but also square and round holes are scientifically arranged in the mixing vanes. This design has realized the actual three-dimensional mixing of concrete in the mixing drum, with discharge surplus close to zero and concrete eduction greatly avoided. The moveable discharge chute can be locked at 4 different positions for discharge operations in different directions. The upper part of the truck adopts the shot blasting and baking finish technology. While elegant and pleasing in design, the truck-mounted mixer shows many advantages such as stable and reliable slewing, speedy discharge, low surplus rate, handy operation and long service life.
Main Technical Parameters of Concrete Mixer Truck
Items |
Unit |
Parameters |
Model |
HDT5313GJB |
|
Total Length |
mm |
10850 |
Total Width |
Mm |
2496 |
Total Height |
Mm |
3980 |
Chassis |
HOWO ZZ1317N3667C1 |
|
Total Vehicle Weight (Standard) |
Kg |
31000 |
Curb Weight |
Kg |
16600 |
Wheelbase |
mm |
1800+3600+1350 |
Front Tread |
mm |
2022/2041 |
Rear Tread |
mm |
1830 |
Tyre Type |
11.00-20/12.00-20 |
|
Front Overhang (mm) |
mm |
1500 |
Rear Overhang (mm) |
mm |
2600 |
Min. Turning Diameter (M) |
M |
≤23 |
Max. Traveling Speed (km/h) |
Km/h |
90 |
Steering Mechanism |
ZF8098 |
|
|
Oil Consumption per 100 km (under limited conditions) |
L |
38 |
Engine Model |
WD615.95(E),WD615.96(E) |
|
Engine Type |
In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine or EGR |
|
Cylinders and Arrangement |
In-line 6-cylinder |
|
Max Power/Rotation |
HP/(r/min) |
375HP/2200 |
Max PTO Torque |
N.M |
1350/(1100-1600),1500/(1100-1600) |
Geometric Volume of Mixing Drum (m3) |
M3 |
20.1 |
Max Mixing Cubage (m3) |
M3 |
14 |
Mixing Drum Obliquity |
° |
10 |
Mixing Drum Rotating Speed |
r/min |
0-14 |
Feeding Speed (m3) |
M3/min |
≥3.5 |
Discharging Speed (≥m3) |
M3/min |
≥3 |
Slump |
mm |
100-230 |
Leftover Rate |
% |
Nearly Zero |
Water Tank Capacity (L) |
L |
260/400 |
| Water Supply Mode | Water Pump |
Our main products cover 12 series with more than 80 varieties, such as:
1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
2. Construction Elevators (multi-speed, stepless-speed);
3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);
4. Concrete Batchers;
5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
6. Concrete Truck Mixers (6-16m3);
7. Truck-mounted Concrete Pumps (diesel, electric);
8. Trailer-mounted Concrete Pumps (diesel, electric);
9. Concrete Pump Trucks (with 24-52m booms);
10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);
11. Stabilized Soil Mixing Plants;
12. Rotary Drilling Rigs...
Quality Control (QC)
Third Control
ISO9001:9001 Certificate
European Certificate
Enviroment Protection Design
Corporate Culture
ENTERPRISE TENET: All for clients, all from clients.
ENTERPRISE GOAL: Try our best for perfectness.
BUSINESS PRINCIPLE: Focusing on people first, Doing business honestly, Sticking to win-win development firmly.
BUSINESS POLICY: Arming engineering machinery with high technology, Upgrading traditional industry with high quality, Promoting the updating of traditional industry with all our efforts.
CULTURE SPIRIT: Never complain, always look for a better way, always prepare to get a chance. Innovation is essential to the development of an enterprise and even a nation. Every one of HONGDA Group is an image ambassador of our enterprise, To be an upright person in all seriousness,to be a good worker without ostentation.
Why Choose TLS?
Reply in first time
Arrange production in first time
Effect transportation in first time
Solve problem in first time
R&D Technical Support
We have a professional R&D team for research and development of new techniques and products. We can design and adjust the machines according to customers’ requests.
Professional engineers, technical support on installation and training overseas are available.
Before Sale Service
Before sales, we provide our customers with professional solutions on Concrete Mixer Truck according to customers’ situations.
After Sale Service
Turn-Key Solutions
Free Erection & Commissioning Service
Operation Training Service
Spare Parts Supply ( all working life )
You are warmly welcomed to visit our products! Our web page
If you have any question, please feel free to contact us.
You can send email to salesat,
or you can call us +86 535 7287987
or fax to us +86 535 7287987 any time!
