High Efficiency Concrete Mixer Truck HDT5313GJB (16375)
with CCC/ISO9001 Certificates on Sale
TLS(Iron Giant) Brand, Famous Trademark of China
CCC/ISO9001/TUV Certified
I.Brief Introduction to Concrete Mixer Truck
The HONGDA truck-mounted concrete mixer is independently developed by SHANDONG HONGDA GROUP on the basis of absorbing advanced domestic and foreign technologies. The product is mainly used for mixing and transporting concrete mixture between long distances. It can effectively delay pre-hardening, avoid stratification and eduction, and ensure construction quality and speed. The HONGDA series of truck-mounted concrete mixers can be divided into various models, such as 6m³, 8m³, 9m³, 10m³,12m³,14m³ and 16m³, which can be matched with any special domestic and foreign chassis according to customers’ choices. The driving system of the mixing drum adopts the closed-type hydraulic system pump, motor and reducer which are imported from the USand Germany with original packaging. The necessary hydraulic accessories such as the oil tank, radiator, filter and rubber hose connector are all imported parts. All this ensures the hydraulic system a long service life. The mixing drum body and the double-logarithmic variation-parameter helical vanes are all made of fine-grain abrasion-resistant steel plates specially used for the B520JJ mixing drum made by Shanghai Baosteel Company. All the quick-wearing parts like the feed hopper and discharge hopper chutes which have much contact with concrete are also armored with abrasion-resistant steel plates, which correspondingly ensure the product a rather long service life. Not only are many mixing arms designed in the mixing drum, but also square and round holes are scientifically arranged in the mixing vanes. This design has realized the actual three-dimensional mixing of concrete in the mixing drum, with discharge surplus close to zero and concrete eduction greatly avoided. The moveable discharge chute can be locked at 4 different positions for discharge operations in different directions. The upper part of the truck adopts the shot blasting and baking finish technology. While elegant and pleasing in design, the truck-mounted mixer shows many advantages such as stable and reliable slewing, speedy discharge, low surplus rate, handy operation and long service life.
II.Main Technical Parameters of Concrete Mixer Truck
Whole Vehicle Performance & Parameters |
Items |
Unit |
Parameters |
16m3(HOWO-8*4 Chassis) | |||
Model |
HDT5313GJB (16375) |
||
Dimension |
mm |
10850*2496*3980 |
|
Chassis Model |
HOWO-ZZ1317N3667C1 |
||
Total Vehicle Weight (Standard) |
Kg |
31000 |
|
Curb Weight |
Kg |
16600 |
|
Wheelbase |
mm |
1800+3600+1350 |
|
Front Tread |
mm |
2022 |
|
Rear Tread |
mm |
1830 |
|
Front Overhang (mm) |
mm |
1500 |
|
Rear Overhang (mm) |
mm |
2600 |
|
Min. Turning Diameter (M) |
m |
11.5 |
|
Max. Traveling Speed (km/h) |
Km/h |
90 |
|
Steering Mechanism |
ZF8098(German) |
||
Gear Box |
HW18709 |
||
|
Engine |
Oil Consumption per 100 km (under limited conditions) |
L |
≤31 |
Model |
WD615.95, WD615.96, WD615.95E, WD615.96E |
||
Type |
In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine |
||
Max Power |
KW |
375HP (2200r/min) |
|
Max Torque |
N.m |
1350;1500 |
|
Max PTO Torque |
N.m |
600(1100-1400r/min) |
|
Emission Standard |
China III, Euro III |
||
Working Device |
Geometric Volume of Mixing Drum (m3) |
M3 |
24.1M3 |
Max Mixing Cubage (m3) |
M3 |
16 |
|
Mixing Drum Obliquity |
° |
10° |
|
Mixing Drum Rotating Speed |
r/min |
0-14 |
|
Feeding Speed (m3) |
M3/min |
≥3.5 |
|
Discharging Speed (≥m3) |
M3/min |
≥1.5 |
|
Slump |
mm |
100~230 |
|
Leftover Rate |
% |
Nearly Zero |
|
Water Tank Capacity (L) |
L |
260 |
|
Max Mixing Drum Diameter (mm) |
mm |
φ2412mm |
|
Water Supply Mode |
Water Pump; Pneumatic Pump |

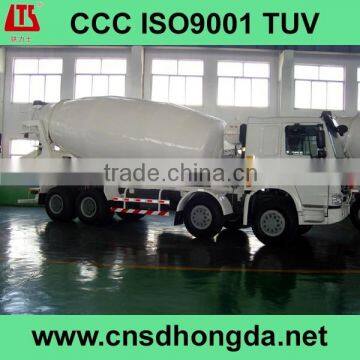

III.Detail Pictures of Concrete Mixer Truck
IV.Brief Introduction to Our Company
We are Shandong Hongda Construction Machinery Group Co., Ltd., a professional construction machinery manufacturer with a history of 30 years. Our registered trademark “Tie Li Shi” (“Iron Giant” in English) has been approved as “Famous Trademark of China”. Our products have passed CE, CCC and ISO9001 quality certifications. Our company has been appraised as a Contract-honoring & Promise-keeping Enterprise by the government for many consecutive years. Our main products are:
1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
2. Construction Elevators (multi-speed, stepless-speed);
3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);
4. Concrete Batchers;
5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
6. Concrete Truck Mixers (6-16m3);
7. Truck-mounted Concrete Pumps (diesel, electric);
8. Trailer-mounted Concrete Pumps (diesel, electric);
9. Concrete Pump Trucks (with 24-52m booms);
10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);
11. Stabilized Soil Mixing Plants;
12. Rotary Drilling Rigs...
You are warmly welcomed to visit our products! Our web page
If you have any question, please feel free to contact us.
You can send email to salesat,
or you can call us +86 535 7287987
or fax to us +86 535 7287987 any time!
