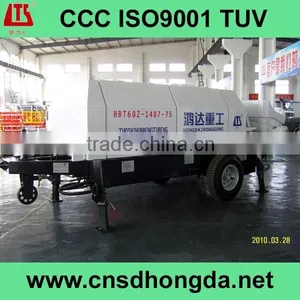

Trailer-mounted Concrete Pump HBT90S1821-200
with CCC/ISO9001/TUV Certificate on Sale
TLS(Iron Giant) Brand
CCC/ISO9001 Certified
Brief Introduction to Trailer-mounted Concrete Pump
The HONGDA S-valve series of high-pressure pumps, Z-gate-valve series of medium-pressure pumps and D-butterfly-valve series of low-pressure pumps are concrete transport machines widely used for the construction works in city construction, bridge construction, electric power and other energy source facilities and so on. The machines adopt world-level advanced technologies such as open hydraulic loop, distributing valve auto-compensation clearance, constant power control, all-hydraulic automatic reverse and electric proportional control.
Main Technical Parameters of Trailer-mounted Concrete Pump
Items |
Unit/Model |
Parameters |
|
Type |
Horizontal Single-action Double-row Hydraulic Piston |
||
Concrete Distributing Valve |
“S” pipe valve |
||
Theoretical Concrete Output Pressure |
High-pressure Small Output |
MPa |
21 |
Low-pressure Large Output |
10.8 |
||
Theoretical Concrete Pumping Ability |
High-pressure Small Output |
m3/h |
60 |
Low-pressure Large Output |
95 |
||
Theoretical Max Pumping Distance |
150mm Pipe |
m |
1600 (horizontal), 370 (vertical) |
125mm Pipe |
m |
1500 (horizontal), 350 (vertical) |
|
Max Aggregate Diameter |
150mm Pipe |
mm |
50 |
125mm Pipe |
mm |
40 |
|
Concrete Cylinder Diameter × Max Stroke |
mm |
φ200×1800 |
|
Hopper Capacity/Feeding Height |
m3/mm |
0.7/1320 |
|
Main Motor |
Y2-315S-4 |
Rated Power=110KW |
|
Main Oil Pump 260 |
A11VL0190 |
Max Flow Rate =275L/min |
|
Auxiliary Motor |
Y2-280M-4 |
Rated Power=90KW |
|
Auxiliary Oil Pump 260 |
A11V0260 |
Max Flow Rate =275L/min |
|
Hydraulic Liquid Tank Capacity |
L |
860 |
|
Hydraulic Liquid |
“Great Wall” AW46# Anti-wearing Hydraulic Liquid |
||
Wheel Span |
mm |
2050 |
|
Voltage/Frequency |
V/HZ |
380/50 |
|
Outline Dimension: L×W×H |
Mm |
6680×2295×2255 |
|
Max Towed Speed |
Km/h |
≤15(Grade-2 Highway) ≤8(Grade-3 Highway) |
|
Total Weight |
kg |
6500 |
|

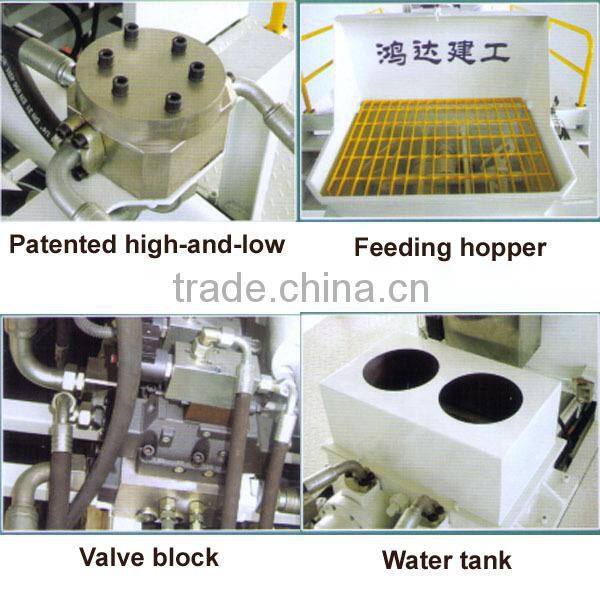

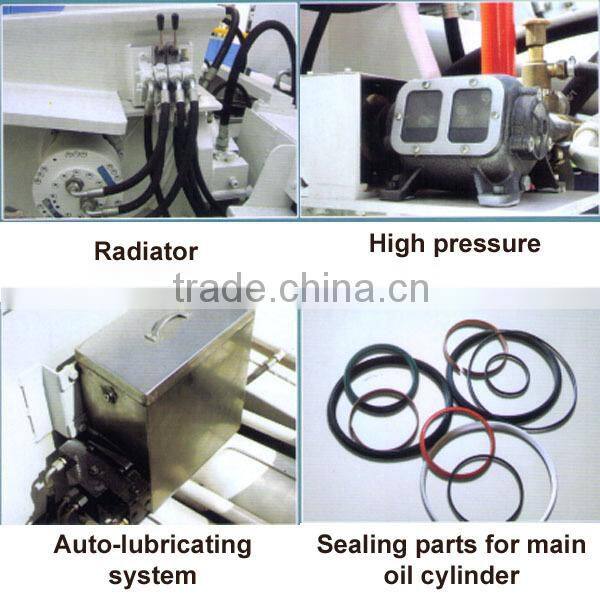

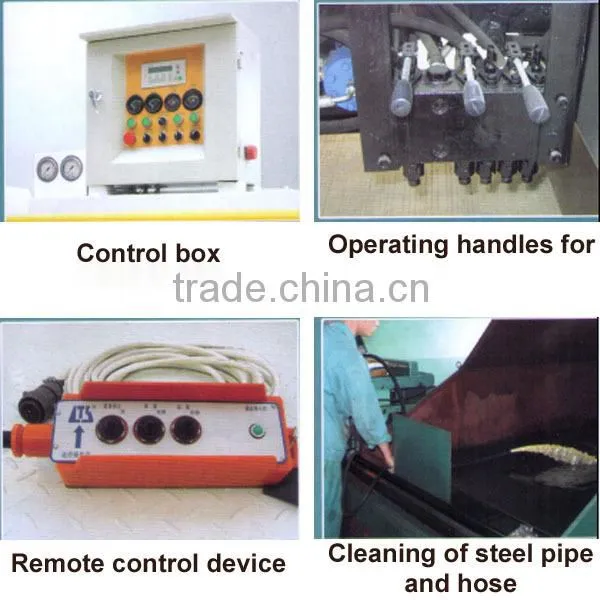

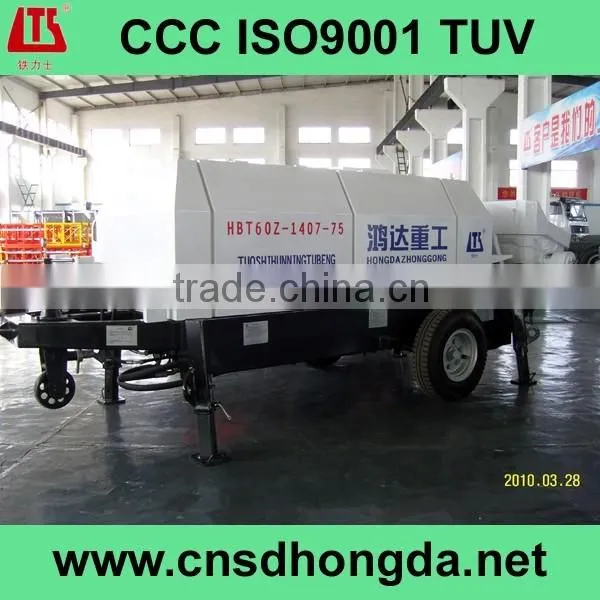

Detail Pictures of Trailer-mounted Concrete Pump
Our main products cover 12 series with more than 80 varieties, such as:
1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
2. Construction Elevators (multi-speed, stepless-speed);
3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);
4. Concrete Batchers;
5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
6. Concrete Truck Mixers (6-16m3);
7. Truck-mounted Concrete Pumps (diesel, electric);
8. Trailer-mounted Concrete Pumps (diesel, electric);
9. Concrete Pump Trucks (with 24-52m booms);
10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);
11. Stabilized Soil Mixing Plants;
12. Rotary Drilling Rigs...
Quality Control (QC)
Third Control
ISO9001:9001 Certificate
European Certificate
Enviroment Protection Design
Corporate Culture
ENTERPRISE TENET: All for clients, all from clients.
ENTERPRISE GOAL: Try our best for perfectness.
BUSINESS PRINCIPLE: Focusing on people first, Doing business honestly, Sticking to win-win development firmly.
BUSINESS POLICY: Arming engineering machinery with high technology, Upgrading traditional industry with high quality, Promoting the updating of traditional industry with all our efforts.
CULTURE SPIRIT: Never complain, always look for a better way, always prepare to get a chance. Innovation is essential to the development of an enterprise and even a nation. Every one of HONGDA Group is an image ambassador of our enterprise, To be an upright person in all seriousness,to be a good worker without ostentation.
1) Know customers’ requirements and help customers to choose the most ideal products.
2) Provide customers with technical support before the installation of equipment, such as the choice of site, the construction of infrastructures, etc.
3) Provide customers with training on operation, repairing and maintenance of equipment.
1) Arrange preparation, production, inspection and delivery of goods according to contracts, ensuring that the equipment arrives at designated sites safe and sound.
2) Provide all kinds of technical materials for the installation of equipment.
1) Carry out installation, debugging and maintenance at times stipulated in contracts or fixed by customers.
2) Provide on-the-spot training at customer demand.
3) Record and tackle customer complaints about product and service quality, and arrive at the site in the shortest possible time to get problems settled.
4) Make up customer files to keep detailed and long-term records of the installation, debugging and maintenance of every machine. Ensure the traceability of service for every customer and every machine, and provide technical support for customers on the maintenance of every machine.
5) Carry out customer reviews non-periodically to collect customers’ views and suggestions on product and service quality and make timely improvement.
6) All service centers are managed by the After-sale Service Department to ensure the promptness and effectiveness of service.
1.Is the price you offer is best price?
The price we offer is our normal price,We can discuss it according to your quantity and requirement.We will definitely try our best to provide you the best price as we can.
2.What's your Delivery Time?
It depends on your special requirements. Normally the delivery time is 25- 35 working days.
3.Do you want to know more about this company before you make a deal? Request an Assessment Report.
Supplier Assessment Reports are detailed on-line reports about the supplier's capabilities. It helps you get all the information you need to trade confidently with suppliers.
4.How long is your Warranty period?
12 months since delivery the machine .
More information can be get by contact with HONGDA Group.
You are warmly welcomed to visit our products!
If you have any question, please feel free to contact us.
You can send email to salesat,
or you can call us +86 535 7287987
or fax to us +86 535 7287987 at any time!
