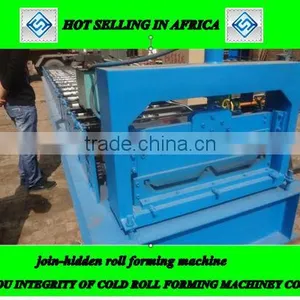

Join-hedden roll former

Specifications

Welcome to review our roll forming machine
world-class technology
Beautiful appearancea
reasonable price

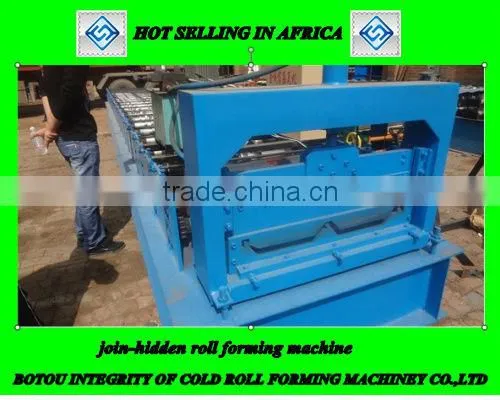

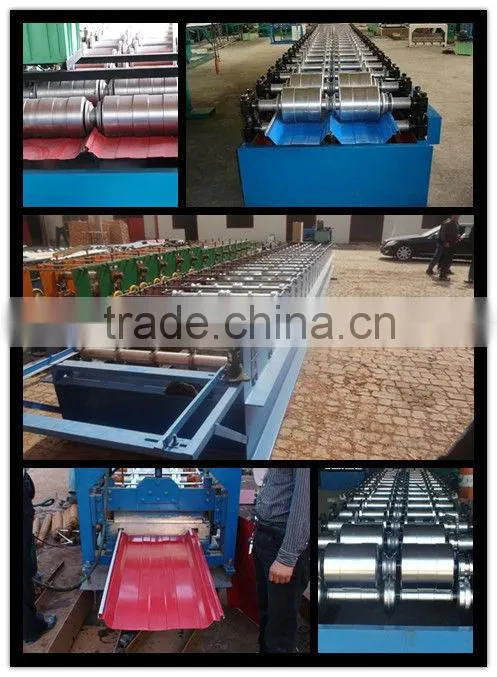

1.Equipment picture:     2.Quipment picture in workshop:

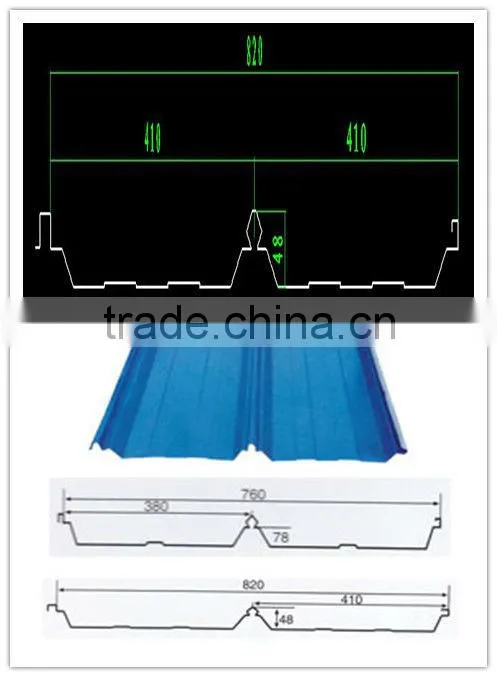

Plate picture:







3.Technical specification

Pass: 11passes & 9 passes

Shaft diameter: 70mm

Width range: 1000mm

Thickness range: 0.3-0.8mm

Inner diameter range: 500mm

Speed of product: 8-12m/min

Roller material: 45 steel(Cr coating)

Total power: 4KW

Control system: PLC

4.Processing technique and deployment

Processes: manmade decoiler--Roll forming machine—PLC system—Hydraulic system-receiving table

5.Components of line:

No.	Name	Unit	Qty
1	Man-made uncoiler	set	1
2	Main machine for roll forming	set	1
3	Control system	set	1
4	Hydraulic system	set	1
5	Blade	set	1
6	Receiving table	set	2

(1) man-made decoiler (max capacity 5000kg

(2) Roll-Forming:

(3) blade

(4) Hydraulic System

(5)control system :

(6)receiving table :



Application

Our cold roll forming machine is uesd to produce the any kinds of plate for the roof, wall, floor and other frame of building like workshop, warehouse and other house coating .
