720 Floor Deck Cold Roll Forming Machine

720 Floor Deck Cold Roll Forming Machine thumbnail-1
720 Floor Deck Cold Roll Forming Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Contact Supplier Request Quote Chat Now
Botou Golden Integrity Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
new port tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Colored Steel
Use Floor
Production Capacity 9-12m/min
Place of Origin Hebei, China
Brand Name JCX
Model Number JCX-720
Power(W) 11kw
Voltage 380v
Weight 3-5T
Certification TUV
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Welcome to review our roll forming machine
Complete service
Experienced engineers
High efficency

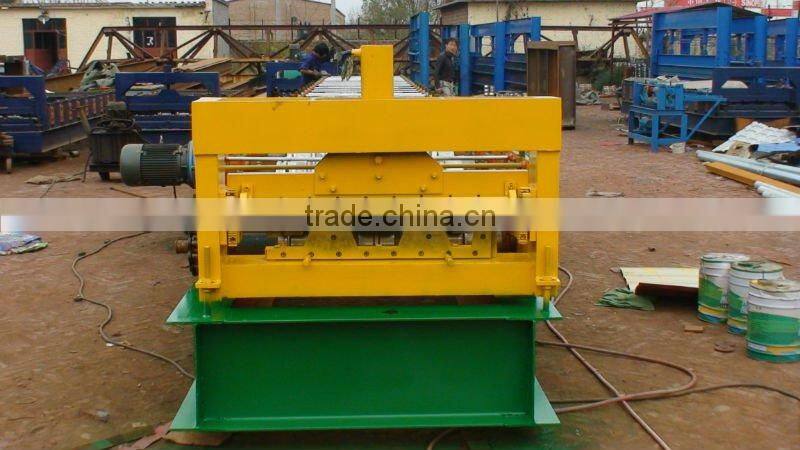

720 Floor deck roll forming machine



Pressed Steel Type

720

usage

Effective coverage width

720mm

Expand Width (mm)

1000(mm)



steel bearing plate floor

Thickness (mm)

0.8

1.0

1.2

Cross-section from the inertia (cm4 / m)

91.62

119.38

142.01

Cross-section to withstand the distance (cm3 / m)

23.46

30.58

36.98









Floor Deck roll forming machine


Main technical parameter

1.manual decoile:rmanual expanding,passive uncoil

Inner Diameter. Φ460-520mm

Outer Diameter. Φ1400mm

2.weight capacity of decoiler:10T

3.machine stand: welded shape steel

4.type of forming machine:wallboard type with chain transmission

5.diameter of shaft: 80mm

6.material of shaft: high-grade 45 steel

7.chain:20A

8.motor power of forming machine:11KW*2

9.forming speed:10-15m/min

10. roll station:30 stations

11. material of roller :high-grade 45 steel

12. surface of roller coated with chrome 0.05mm thickness

13. motor of hydraulic station:3KW

14. hydraulic oil pump:bear pump CB-E314

15. type of cutting:hydraulic cutting

16. material of cutting blade:Cr12

17. heat treatment of cutting blade:HRC58°-60°

18. thickness of steel coil:0.6-1.2mm

19. tolerance of length:10±2mm

20. transducer: Panasonic

21. computer adopts Panasonic PLC

22. computer operating board adopts Touch screen

23. Voltage: 380V 3 phase 50HZ or at buyer’s requirement
