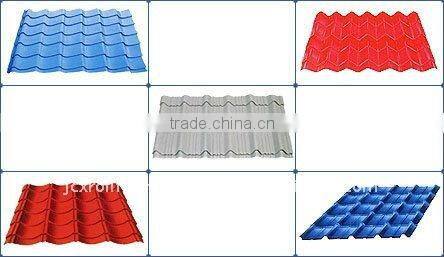

Help CenterJcxywj-sh-840 Glazed Tile Roll Forming Machine
Related Products
-
JCX 760 Rolling Shutter Door Forming Machine for ConstructionNegotiableMOQ: 1 Set -
JCX 760 Rolling Shutter Door Cold Roll Forming Machine for ConstructionNegotiableMOQ: 1 Set
-
760 Rolling Shutter Door Cold Roll Forming Machine for ConstructionNegotiableMOQ: 1 Set
-
760 Roll-up Door Cold Roll Forming Machine for ConstructionNegotiableMOQ: 1 Set
-
High Glade--stone Coated Roof Tile Machine for BuyersNegotiableMOQ: 1 Set
Specifications
Rolling material: Forging steel 45#Material application: GI,PPGI,AL
Use: roof and wall
Model Number: JCX28-207-828
| Place of Origin: Hebei China (Mainland) | Brand Name: jcx | Model Number: 840 |
| Type: Tile Forming Machine | Tile Type: Colored Glaze Steel | Use: Roof |
| roof: machine |
Quick Details
Place of Origin: Hebei China (Mainland) Brand Name: JCX Model Number: JCX-840
Type: Tile Forming Machine Tile Ty
| Place of Origin: Hebei China (Mainland) | Brand Name: JCX | Model Number: JCX-840 |
| Type: Tile Forming Machine | Tile Type: Colored Glaze Steel | Use: Roof |
| cover width: 820mm | coil width: 1000mm | wave height: 23mm |
| wave length: 205mm | usage: glazed steel tile |
| Place of Origin: Hebei China (Mainland) | Brand Name: jcx | Model Number: 840 |
| Type: Tile Forming Machine | Tile Type: Colored Glaze Steel | Use: Roof |
| roof: machine |
| Packaging Detail: | standard package for container or as custome's request |
| Delivery Detail: | 20-30days |
Quick Details
Place of Origin: Hebei China (Mainland) Brand Name: JCX Model Number: JCX-840
Type: Tile Forming Machine Tile Ty
| Place of Origin: Hebei China (Mainland) | Brand Name: JCX | Model Number: JCX-840 |
| Type: Tile Forming Machine | Tile Type: Colored Glaze Steel | Use: Roof |
| cover width: 820mm | coil width: 1000mm | wave height: 23mm |
| wave length: 205mm | usage: glazed steel tile |
| Packaging Detail: | standard package for container or as custome's request |
| Delivery Detail: | 20-30days |

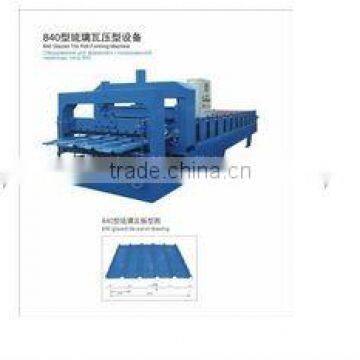

840 Glazed tile roll forming machine
superior quality
fluent operation
CE standard roll former
|
Suitable to process |
Steel plate |
Width of the plate |
1000mm/1200mm/1250mm |
Rollers |
9-11rows |
Dimensions |
5.8*1.55*1.51m |
Power |
4kw+4kw |
Thickness of the plate |
0.3-0.7mm |
Productivity |
8-10m/min |
Diameter of the roller |
¢70mm |
Weight |
About 3.4T |
Voltage |
380V 50Hz 3pha |
Technique parameters of the processing line
(1) Suitable material: galvanized sheet/colored coil
(2) Thickness of the plate : 0.3 -0.8mm
(3) Width of the plate before forming:1000mm
(4) Productivity :8-12m/min
(5) Roller steps :11 rows
(6) Roller material: 45# steel
(7) Diameter of active shaft: 75mm
(8) Wall thickness of the main forming machine: 12mm steel plate
(9)Main forming machine body : 300mmH steel
(10) Transmission chain is 1'',;
Reducer is 3kw Xingxing Cycloid which works stably and no noise.
(11) Cutting hydraulic systerm adpats CDF-10 gear pump,the motor power is 3kw, no noise, work stably, long life expentancy.
(12) Taida PLC control systerm, easy to operate, high precision and work stably.
(13) Dimensions of major structure:6200mm*1550mm*1400mm
Processing technique and deployment
Processes: Manual decoiler—Roll forming machine—PLC system—Hydraulic system-Post cut—Stacking
Components of line:
NO |
Name |
Unit |
Qty |
1 |
Manual decoiler |
set |
1 |
2 |
Main machine for roll forming |
set |
1 |
3 |
PLC Control system |
set |
1 |
4 |
Hydraulic system |
set |
1 |
5 |
Post cut |
set |
1 |
6 |
Stackinig |
set |
1 |
