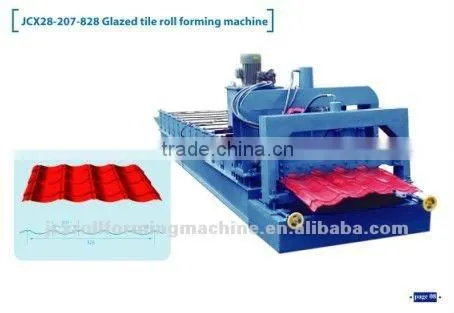

JCX28-207-828 Glazed Tile Roll Forming Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

JCX

Model Number:

JCX28-207-828

Botou Golden Integrity Roll Forming Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name JCX

Model Number JCX28-207-828

Machine Type Roll Forming Machine

Raw Material Sheet / Plate Rolling

Material / Metal Processed Other, colored steel sheet;gavanizzed steel sheet

Power Hydraulic

Automation Automatic

Extra Services Cut To Length

Certification ISO 9001:2000

Specifications

1.Precise forming
2.High-solid forming stand guarantees the the goods and uniform high quality of final products
3.Automatical

Introduction	machine consist of decoiler,coil sheet guiding equipment,roll forming system,post cutting equipment, presssing equipment, post-cutting system, hydraulic station, controlling system, supporter table.
Machine feature	1.precise forming 2.High-solid forming stand gurantees uniform high quality of final products 3.The automatical operation minimizes the tolerance of cutting length
Products feature	1.A stylish and attractive design, giving the appearance of a troditional roof tile. 2.Resistant to frost,heat,hail and gales;100% waterproof, due to lateral run-off channal on each sheet. 3.The raw material can be in different color, with elegant and noble looking. It is widely used as garden like factory, hotel, exhibition, villa, civil construction etc.
Material of main equipment	Roller material: high grade NO.45 forged steel, plated hard chrome on thinknesse surface of roller with thickness 0.05mm Active shaft material: high grade NO.45 carbon steel at the diameter of 72mm
Flow chart
Samples made by our machines
