Help CenterJCX35-125-750 Colored Steel Roll Forming Machine
Related Products
-
JCX28-204-1020 Glazed Cap Roll Forming MachineNegotiableMOQ: 1 Set -
JCX28-204-1020 Glazed Tile Roll Forming MachineNegotiableMOQ: 1 Set
-
JCX23-205-820 Glazed Tile Roll Forming MachineNegotiableMOQ: 1 Set
-
JCX25-210-840 Glazed Tile Roll Forming MachineNegotiableMOQ: 1 Set
-
JCX28-207-828 Glazed Tile Roll Forming MachineNegotiableMOQ: 1 Set
Specifications
1.beautiful appearance, low noise, high efficiency2.worm gear making the laminating speed smooth and steady
3.PLC advanced
| Production Description | ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
| Details show | |||||||||||||||||||||
Plate picture:

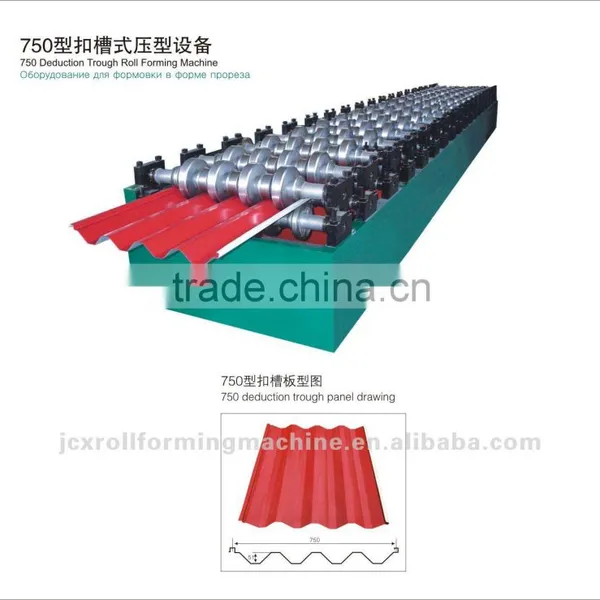

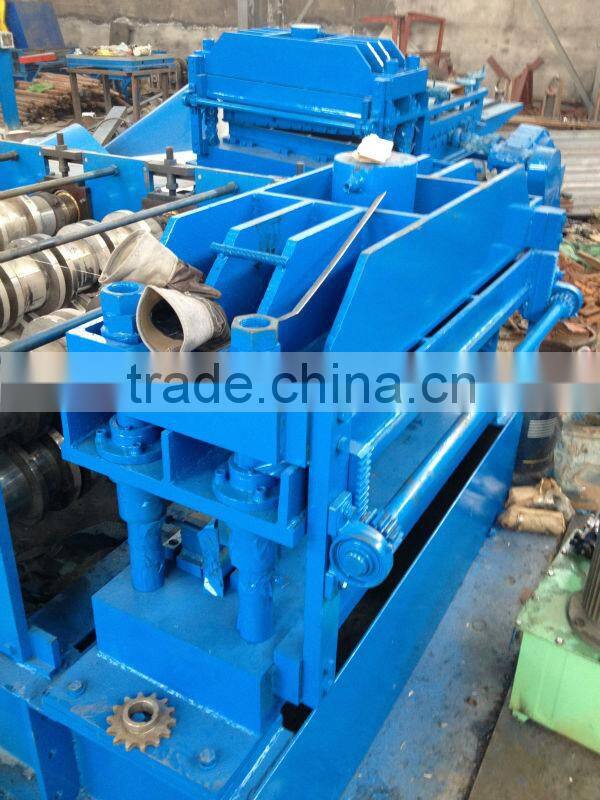

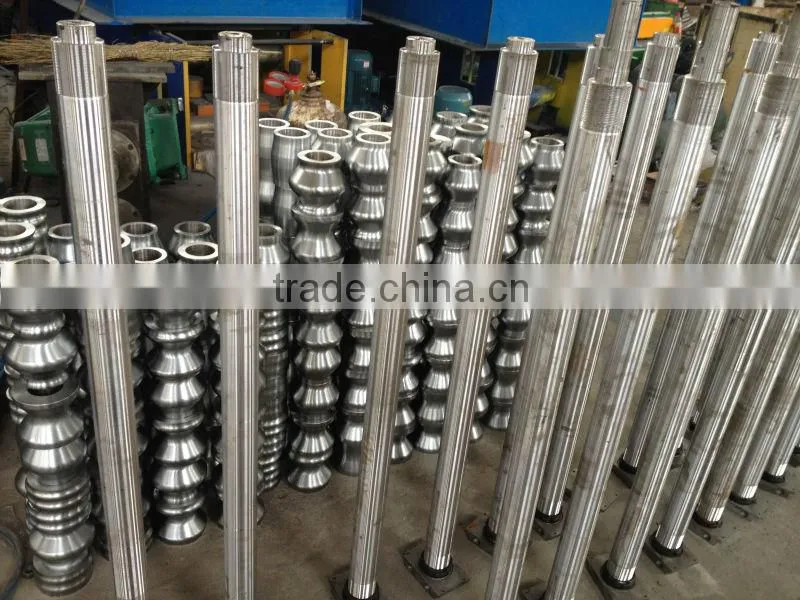

1.Technical specification (1) Suitable material to process: galvanized sheet or color steel (2) Thickness of the plate for both layers :0.4-0.8mm (3) Feeding width : 1200mm (3) Rollers steps:11-13rows Diameter of the active shaft: 70mm (5)Roller material: 45# steel (6) Wall thickness of the main forming machine: 12mm steel plate (7)Main forming machine body : 300mmH steel (8)Transmission chain is 0.6’’ ; Reducer is 3kw Xingxing Cycloid which works stably and no noise. (9)Cutting hydraulic systerm adpats CDF-10 gear pump,the motor power is 3 kw, no noise, work stably, long life expentancy. (10)Taida PLC control systerm, easy to operate, high precision and work stably. PLC is totally English words (11) Electric: 3 phase/380V/50-60HZ or as per customers' requirements (12) Machine color: blue (13) Machine sizes:5200mm by1400mm by 1500mm(lengt by width by height) Note:the measurement is an approximation and that in reality there may be a slight diffenrce (14) Speed: max 9m/min 2.Processing technique and deployment Processes: manmade decoiler--Roll forming machine—PLC system—Hydraulic system 3.Components of line:

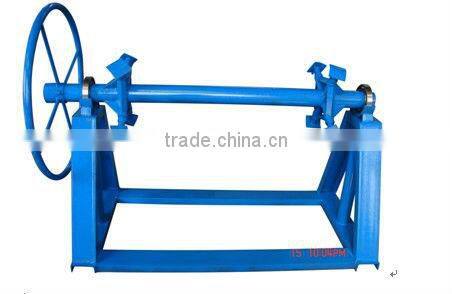

(1) Automatic decoiler (max capacity 5000kg) (2) Roll-Forming M/C:
Voltage: 3phase/80V/50-60Hz. line speed:8-10m/min;
Rolling chromium thickness:0.05 mm
(3) Cutting Mechanism
It adopts hydraulic drive and automatic location to decide the dimention and cut the target products.
Match equipment : one set of cutting tool, one hydraulic tank ,one cutter machine.
Stop to cut , Post cut cutting length tolerance: ±2mm
Cutting tool material: GCr12 with quenched treatment 60-62°C
(4) Hydraulic System
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Match equipment: a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.
Power of the oil pump: 3kw Hydraulic oil :40#
(5)Computer control cabinet :
It adopts PLC to control. The target piece length is adjustable and digit of it can be adjusted
Computed mode has two modes: automatic and manual one.
(6)Counter :
One counter gauges length, pulses, and decides length
|
