Welcome to view stud & track roll forming machine .costom roll forming machine
1, Machine specification
Stud & track roll forming machine | ||
1 |
Suitable to process |
Steel plate |
2 |
Rollers |
10 rows |
3 |
Dimensions |
5800*800*900
|
4 |
Power |
7.5KW+5.5KW |
5 |
Thickness of the plate |
1-3mm |
6 |
Productivity |
0-50m/min |
7 |
Frame |
400 H steel |
8 |
Middle plate thickness |
20mm |
9 |
Driving ways |
2.6 inch Chain wheels and link chain |
10 |
Diameter and material of the forming axis |
80mm |
11 |
Foriming wheel |
bearing steel quenching |
12 |
Weight |
About 6.5t |
13 |
Voltage |
380V 50Hz, 3 phase |
14 |
Equipment parts:includes:roll forming system, hydraulic system, PLC frequency conversion control system, counter, cutting system,product supporter .
|
|
|
Terms: |
||
1. Delivery:within 30 days after getthing the deposit; | ||
2. Package:Exporte Standard package for container | ||
3. Payment:TT(30% by TT in advance ,70% by TT after inspect the machine before delivery ) | ||
2, Machine Components
No |
Item |
Qty |
Remark |
1 |
Sheet forming machine |
1 |
|
2 |
5 ton hydraulic decoiler |
1 |
|
3 |
12m automatic stacker |
1 |
|
4 |
Hydraulic station |
1 |
|
5 |
Electric cabinet |
1 |
|
6 |
Safety guarding |
2 |
|
7 |
Operation manual |
2 |
In English |
3, machine details
Material of main equipment:

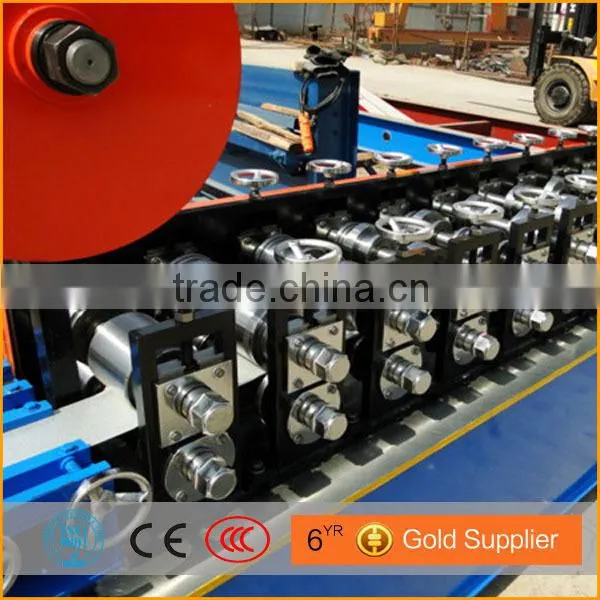

Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.

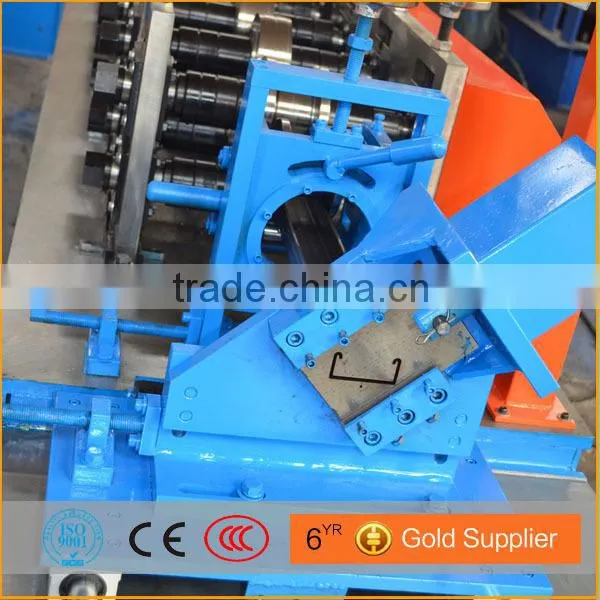

Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
6)One year warranty.
Free packaging for you: Standard export packing: GP container ;
main machine naked and fastened with iron wire in the container,
rollers were painted with oil and packed with plastic film,
control box will be packed with carton box
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket,
suitable accommodation and pay the service fee to the technician with $50/days
Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for
the machine that you are going to book with us
Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details For the slitting
line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line) For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range,
width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing) For the HVAC machine and
the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe Pls also provide
us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of
the machine before shipping. Considering that the buyer usually is not very familiar with the machine
assembling and debugging, so we send the technicians to the buyer`s factory for the installation of the
machine provided that the Price Term was conclude on ALL IN basis. In additon, We provide all of our
customers with the aftersales-service, its free of charge during the warranty period
Q: What do you mean by the ‘ALL IN PRICE’ as you stated in the quotation file?
A: The ALL IN Price means the quoted price including below items vaule The complete set of Machine
value which covers the spare parts and the moulds if any The machine packing and the container loading
charges The after-sales service charge for 5% of the machine value The charges for the machine installation at your factory,
we send the technician to your factory free of charge The ALL IN Price not including below items The flight
ticket back and forth from China to Your country for our engineer or technician to supply the installation
service at your factory, and the all of the transportation charges outside of China as well The expenses of
hotel room and foods for our engineer or technicians are not included in the ALL IN Price, which shall be
covered by your party The installation needed materials are belong to the buyer self arrangement items,
such as the power supply switch; electrical wire , cable and insulating strung wire piping; air-supply system, air origin Q=0.9stere meters/MIN, P=0.8MPa; gear oil, hydraulic oil; track steel(24kg light track); deep protective barrier.
Q: What is the process for working with the customerized machine?
A: We would encourage you to call or email us so we can explore how we can work together. The order
processing procedure usually could be like follows Inquiry offered by the buyer The sales representative
acquire the detailed machine technical info from the buyer the technical information is sent from the sales
dept. to the technical dept. for studying and work out the machine plan and value the sales representative
get the quotation from the technical dept and send to the buyer the buyer is welcomed to ask for some
amendments on the machine plan according to his best idea the machine plan keep improving until the buyer
is satisfied contract signing and the buyer is requested to make the deposit for 30% of the total value the
contracted machine starts
