  Angle roll forming machine For Light Steel Keel Roll Forming Line



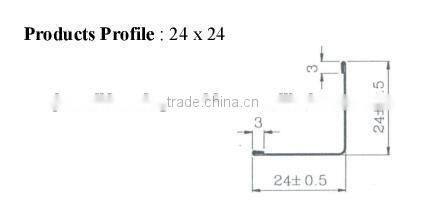

Main technical parameters:

1. Suitable material: color steel sheet or galvanized steel sheet
2.Thickness of raw material: 0.4-1.2mm

3. Yield strength of material: 235Mpa-345Mpa

4. Forming speed: about 20m/min

5. Power Requirement

    Main motor power: 5.5Kw (Depend on final design)

    Hydraulic station power: 2.2Kw (Depend on final design)

6. Uncoilers loading capacity    Max. Capacity: 3000kgs (can be increased to be 10T)

7. Controlling system: Mitsubishi PLC & Converter

8. Machines weight: about 3-4T for different profile machine.

9. Machines size: about 3.8m×1.5m× 1.4m (Depend on final design)


Material of Main Equipment

Roller Material:                     High grade No.45 forged steel, with digital-controlled procession,

                                             Plated with hard chrome.

Active Shaft Material:            High grade No.45 carbon wrought steel,which can improve the  integrated mechanic feature of the shaft. Shaft diameter is 50mm.

Electric Elements:                   PLC control panel, transducer imported from Mitsubishi of Japan.

                                              Other elements from famous suppliers in China

Cutter blade and punch dies: Cr12 mould steel with quenched treatment



- No. of Work Station..........................8stations

 - Max. Roll shafts Dia..........................40mm

 - Overall L x W x H (Approx.)...............3.8M*1.2M*1.6M

  - Roller material: GCR15 quenched 58°-62°,chromed

 - Outside is cast iron, surface needed polish and paint. Inside is 60# forge and press metal)

 - Transducer: Panasonic

 - Cages.......................... use the strong steel nets

 - Levelling screws on base ............with Thick metal paltes



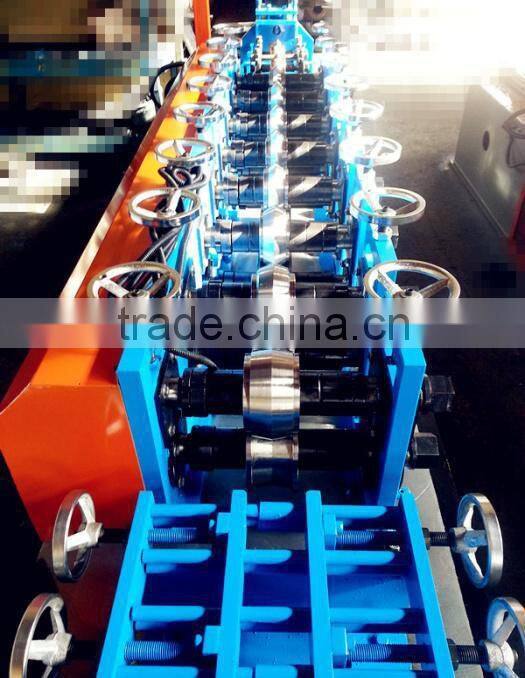

NEW TYPE  Angle roll forming machine  (Complete Machine Picture)

 Metal Stud Track Roll Forming MachineMetal Stud Track Roll Forming MachineMetal Stud Track Roll Forming MachineMetal Stud Track Roll Forming Machine

Metal Stud Track Roll Forming Machine



Metal Stud Track Roll Forming Machine



NEW TYPE   T gird roll forming machine  (the chart of process flow)



 Equipment Components :Man-Made Uncoiler-Roll Forming Machine-Computer Control System-Hydraulic Control System-Cutting



NEW TYPE  T gird roll forming machine  (The decoiler/uncoiler)



Usage: It is used to support the steel coil and uncoil it in a turntable way.



Passive uncoil pulled by roll forming system



Loading capacity: 1.5T



Uncoiling width: 300mm



Inner diameter: 450-550mm

Metal Stud Track Roll Forming Machine

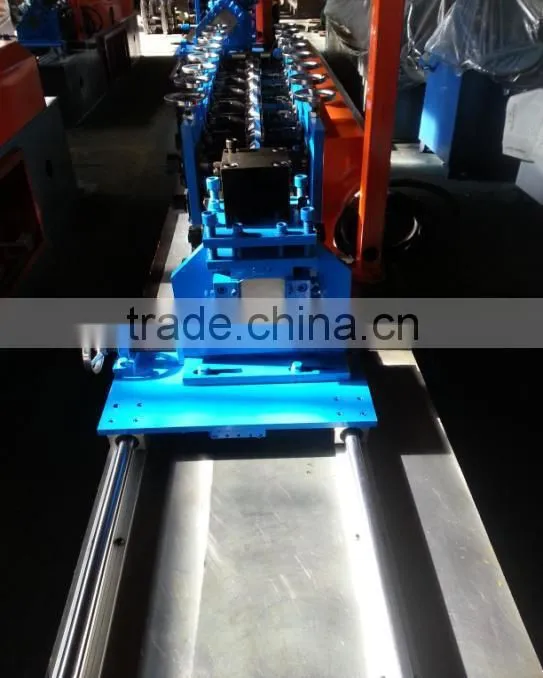

NEW TYPE   T gird roll forming machine  (Main Forming Machine)



Feature : Ensure stability , precision and lifetime.



Length of the main part: about 3800*1150*1400mm



Weight of main part: 3 tons



Voltage : 380V/50HZ3Phase (as customer’s request)



Roller fixer : Guide column



Frame : middle plate welded



Memorial arch frame type



Frame thickness:25mm



Drive mode: gear or chain



Material of rollers: GCr12MoV



Material of shafts: 45# steel with tempering



Diameter of shafts: φ50mm



Number of rollers : 12 rollers



Main power: 3kw(Cycloidal planetary gear speed reducer)



Metal Stud Track Roll Forming Machine

NEW TYPE    T gird roll forming machine   (Cutting Device)



1. Blade Material: Cr12 steel with quenched treated 60-62°C



2. Cutting system: Cut to length, full automatic



NEW TYPE   T gird roll forming machine (Controlling System)

1. Screen: text screen displayer

2. PLC: Taida DVP14ES from Taiwan

3. coder: ENC-1-1-1T-24 from South Korea

Metal Stud Track Roll Forming Machine

NEW TYPE  T gird roll forming machine   (Hydraulic oil pump)

Metal Stud Track Roll Forming Machine

NEW TYPE   T gird roll forming machine  (Spare Parts)

Metal Stud Track Roll Forming Machine
