Track Roll Forming Machine C/z/u Shape Stud Making Machine
- NEW PORT TIANJIN
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
Light Steel Profiles Metal Stud and Track Roll Forming Machine
-
Metal Drywall Tracks & Studs Production Machine For Light Steel Keel Roll Forming Line
-
Metal Stud and Track Cold Roll Forming Machine
-
Metal Stud and Track Roll Forming Machine /Stud & Track Roll Forming Machine / Drywall Stud and Track Roll Forming Machine
-
Metal Stud and Track Roll Forming Machine / Drywall Stud and Track Roll Forming Machine
-
Excellent Ceiling Grid Roll Forming Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 0-50m/min | Place of Origin | Hebei, China | |
| Brand Name | JCX | Model Number | JCX forming machine | |
| Power(W) | 4kw | Voltage | 380V 50HZ 3phase 1 phase voltage 220V | |
| Weight | 4.3T | Certification | TUV | |
| Warranty | One year warranty maintenance free life | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Welcome to view Automatic Roll Forming Machine metal c/z/u shape stud making machine .according to customers requirements ,costom roll forming machine
Stud & track roll forming machine | ||
1 |
Suitable to process |
Steel plate |
2 |
Rollers |
10 rows |
3 |
Dimensions |
5800*800*900 |
4 |
Power |
7.5KW+5.5KW |
5 |
Thickness of the plate |
1-3mm |
6 |
Productivity |
0-50m/min |
7 |
Frame |
400 H steel |
8 |
Middle plate thickness |
20mm |
9 |
Driving ways |
2.6 inch Chain wheels and link chain |
10 |
Diameter and material of the forming axis |
80mm |
11 |
Foriming wheel |
bearing steel quenching |
12 |
Weight |
About 6.5t |
13 |
Voltage |
380V 50Hz, 3 phase |
14 |
Equipment parts:includes:roll forming system, hydraulic system, PLC frequency conversion control system, counter, cutting system,product supporter .
| |
Terms: | ||
1. Delivery:within 30 days after getthing the deposit; | ||
2. Package:Exporte Standard package for container | ||
3. Payment:TT(30% by TT in advance ,70% by TT after inspect the machine before delivery ) | ||
NO | Name | Unit | Qty |

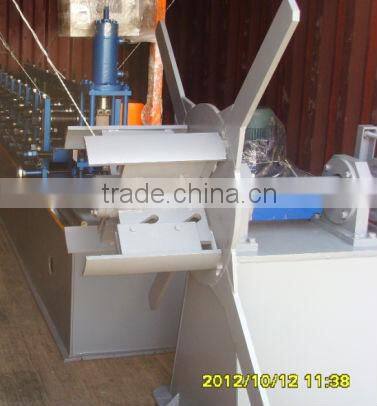

1 | Manual decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | PLC Control system | set | 1 |
4 | Hydraulic system | set | 1 |
5 | Post cut | set | 1 |
6 | Stackinig | set | 1 |
•Noted:all the parameters can be changed as the customer's requirement,and different machine.
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
6)One year warranty.

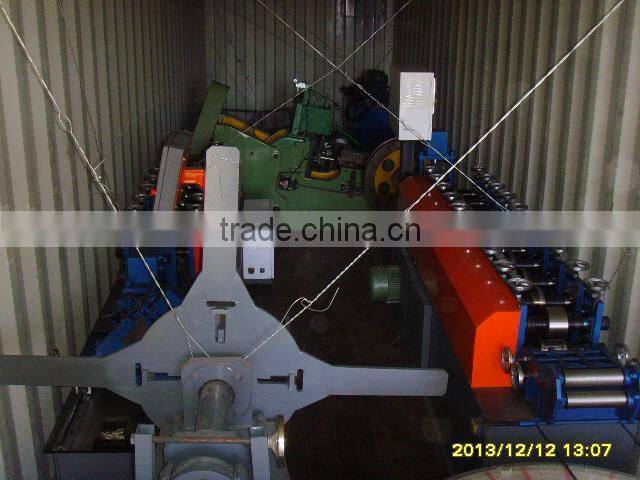

Free packaging for you: Standard export packing: GP container ;
main machine naked and fastened with iron wire in the container,
rollers were painted with oil and packed with plastic film,
control box will be packed with carton box

We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician. But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $100/days
We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China.
Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details For the slitting line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line) For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing) For the HVAC machine and the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe Pls also provide us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details For the slitting line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line) For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing) For the HVAC machine and the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe Pls also provide us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of the machine before shipping. Considering that the buyer usually is not very familiar with the machine assembling and debugging, so we send the technicians to the buyer`s factory for the installation of the machine provided that the Price Term was conclude on ALL IN basis. In additon, We provide all of our customers with the aftersales-service, its free of charge during the warranty period
