Metal Stud/Track/Furring Channel Roll Forming Machine
- 30 Set / Sets per Month
- NEW PORT TIANJIN
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Colored Steel |
Use: | Roof | Production Capacity: | 0-50m/min,2000pcs/day(8 hours work) | Place of Origin: | Hebei, China |
Brand Name: | JCX | Model Number: | JCX-Metal Stud/Track/ Roll Forming Machine | Power(W): | 4kw |
Voltage: | 380V 50HZ 3phase 1 phase voltage 220V | Dimension(L*W*H): | 5800mm*800mm*900mm | Weight: | 4.3T |
Certification: | TUV | Warranty: | One year warranty maintenance free life | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Metal Stud/Track/Furring Channel Roll Forming Machinewe are manufacture
save space
excellent quality
complete service
Welcome to view stud & track roll forming machine .according to customers requirements ,costom roll forming machine

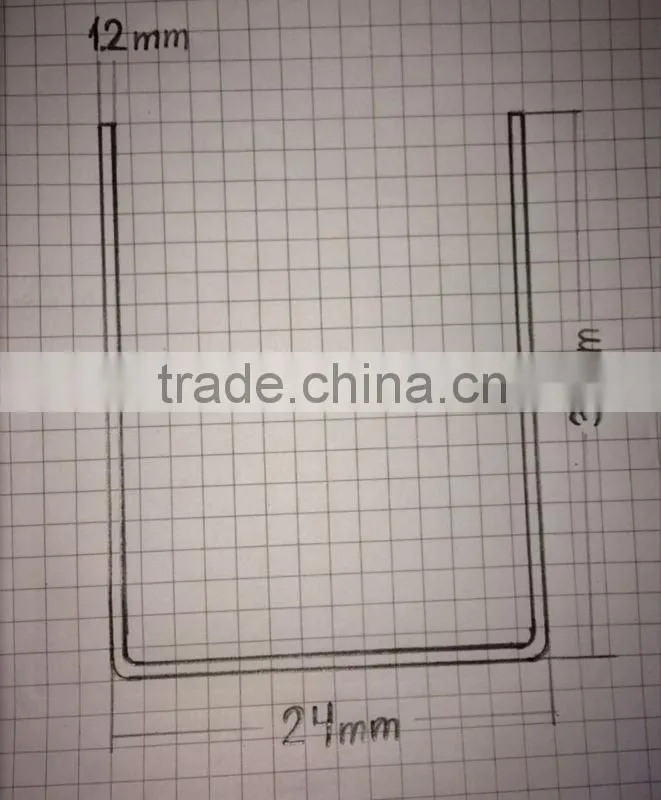

Panel picture
Stud & track roll forming machine | ||
1 |
Suitable to process |
Steel plate |
2 |
Rollers |
10 rows |
3 |
Dimensions |
5800*800*900 |
4 |
Power |
7.5KW+5.5KW |
5 |
Thickness of the plate |
1-3mm |
6 |
Productivity |
0-50m/min |
7 |
Frame |
400 H steel |
8 |
Middle plate thickness |
20mm |
9 |
Driving ways |
2.6 inch Chain wheels and link chain |
10 |
Diameter and material of the forming axis |
80mm |
11 |
Foriming wheel |
bearing steel quenching |
12 |
Weight |
About 6.5t |
13 |
Voltage |
380V 50Hz, 3 phase |
14 |
Equipment parts:includes:roll forming system, hydraulic system, PLC frequency conversion control system, counter, cutting system,product supporter .
| |
Terms: | ||
1. Delivery:within 30 days after getthing the deposit; | ||

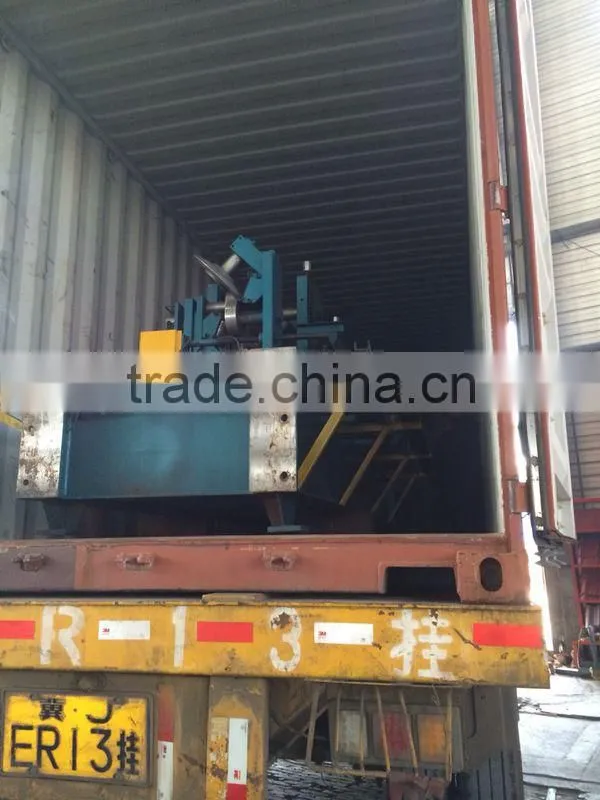

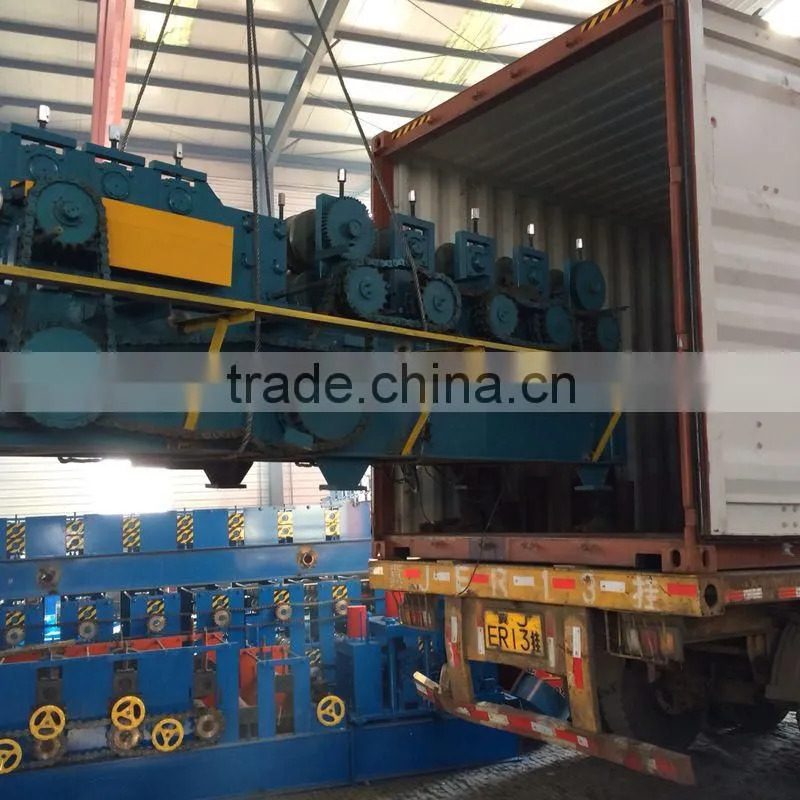

2. Package:Exporte Standard package for container | ||
3. Payment:TT(30% by TT in advance ,70% by TT after inspect the machine before delivery ) |
Components of line:
NO | Name | Unit | Qty |
1 | Manual decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | PLC Control system | set | 1 |
4 | Hydraulic system | set | 1 |

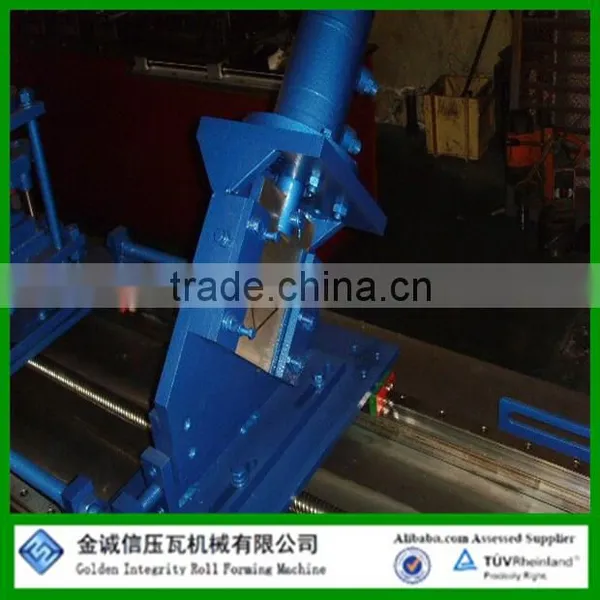

5 | Post cut | set | 1 |
6 | Stackinig | set | 1 |
•Noted:all the parameters can be changed as the customer's requirement,and different machine.
Technical specification of every parts
Production specification
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
6)One year warranty.
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket,
suitable accommodation and pay the service fee to the technician with $50/days
Our market distribution:
Our Certification:
We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China.
EXELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
