colorful stone coated metal roof tile machinery
1.Working process of colorful stone coated metal roof tile machinery :
2. colorful stone coated metal roof tile machinery Components of the line:
A)Auto bottom glue drying section.B)Auto stone chips dropping C)Blowing D)2nd glue spraying E)Drying oven F)Computer control G)Temperature control
I.Suitable material
1.Coil material:color steel sheets, galvanized plates,galvalume plates
2.Thickness of coil material:0.15~0.8mm
II.Producing Process
Manual decoiling----Slitting the plate----Cutting to length----Pressing the profile----Sand coated production line---Taking out the finished products
III.Components of the production line
1. Manual decoiler
2.Slitting device
3.Hydraulic cutting device
4.Press mould machine
5. Automatic bottom glue spraying equipment
6.Automatic Sandblasting Room
7.First drying room
8.Automatic surface glue spraying equipment
9.Second drying room equipment component
Application

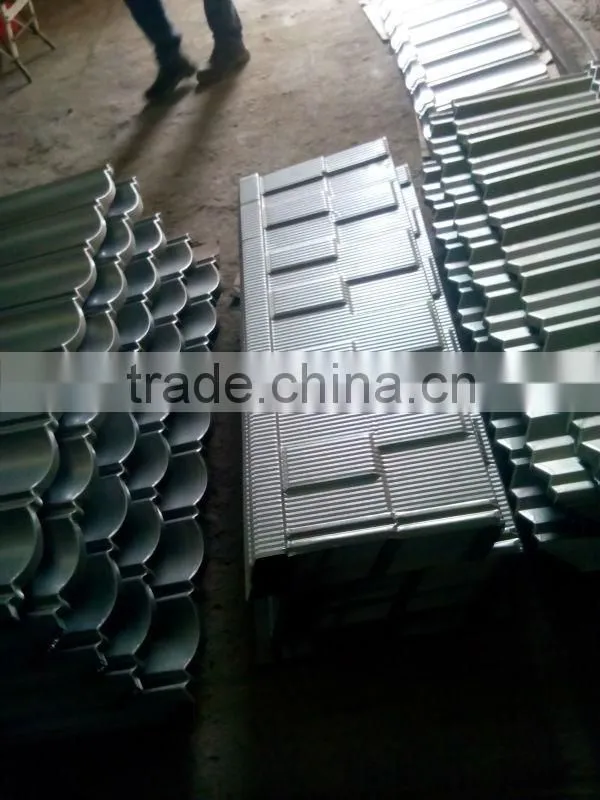

Stone coated sheet is formed by 0.4mm Al-Zn plating panel and color stones
It is modern,environmental and nice appearance.
We developed this stone coated production line based on long time running and improvement It is high-performance,stable, energy-efficient and easy operation.

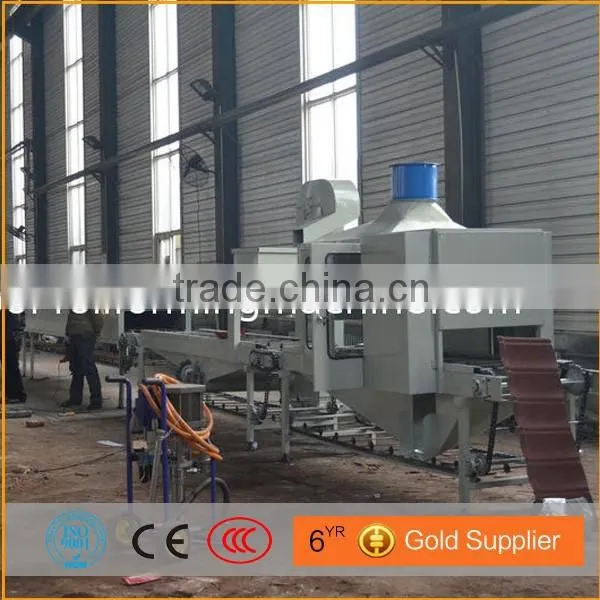

Colourful Stone Chip Coated Roof Tile Production Line (Sand Blast Part )
Automatic Bottom Glue Spraying Equipment
Outside Dimension :3000*1850*700mm(L*W*H) |
Structure:Channel steel ,angle steel ,welded |
Transmission:With glue spraying equipment compound chain transmit |
Conveying device:Compound chain transmit |
Air compressor: 1 set, 18.5kw, air output is 3m³/min |
High-pressure sand suction system: 1 set, sand suction is 1T/hour |

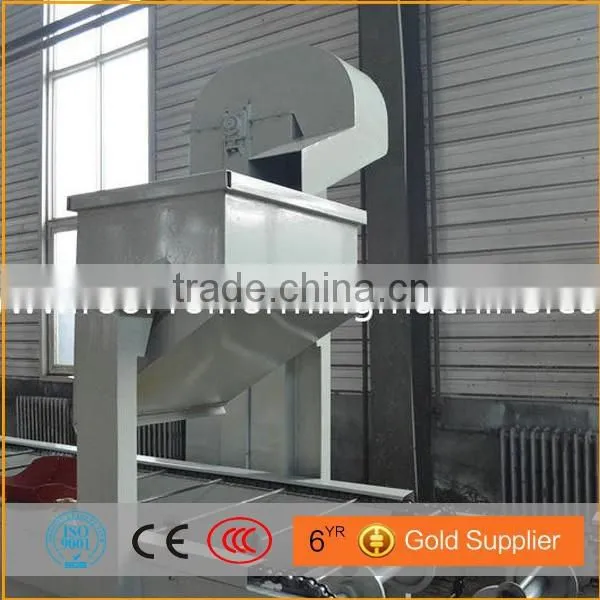

Sand hopper: 1 set, dimension:550*600*500 |
Automatic shaking sand system: one cylinder, the motor with 0.75kw, control: PLC |
First Drying Room
Outside Dimension:4000*1350*850mm(L*W*H) |
Structure:Channel steel ,welded |
Conveying device:Reciprocating chain conveys |
Adsorption of dust removal equipment:1 set |
Air compressor: 1 set, 7.5kw, air output is 1m³/min |
D46 high-pressure airless spraying system 1 set |
Automatic high-pressure airless spraying gun: 1 set |
High-pressure airless manual spraying gun:1 set |
Standard 15M German import high-pressure airless feed tube and it can support the maximum pressure is 20Mpa |
100L stainless charging basket 1 piece |
Automatic Surface Glue Spraying Equipment
Spare parts: Infrared fluorescent tube: 10 pieces, nozzle:2 pieces
