steel stone coated roof tile production line
I.Suitable material
1.Coil material:color steel sheets, galvanized plates,galvalume plates
2.Thickness of coil material:0.15~0.8mm
II.Producing Process
Manual decoiling----Slitting the plate----Cutting to length----Pressing the profile----Sand coated production line---Taking out the finished products
III.Components of the production line
1. Manual decoiler
2.Slitting device
3.Hydraulic cutting device
4.Press mould machine
5. Automatic bottom glue spraying equipment
6.Automatic Sandblasting Room
7.First drying room
8.Automatic surface glue spraying equipment
9.Second drying room equipment component
Application
Stone coated sheet is formed by 0.4mm Al-Zn plating panel and color stones
It is modern,environmental and nice appearance.
We developed this stone coated production line based on long time running and improvement It is high-performance,stable, energy-efficient and easy operation.

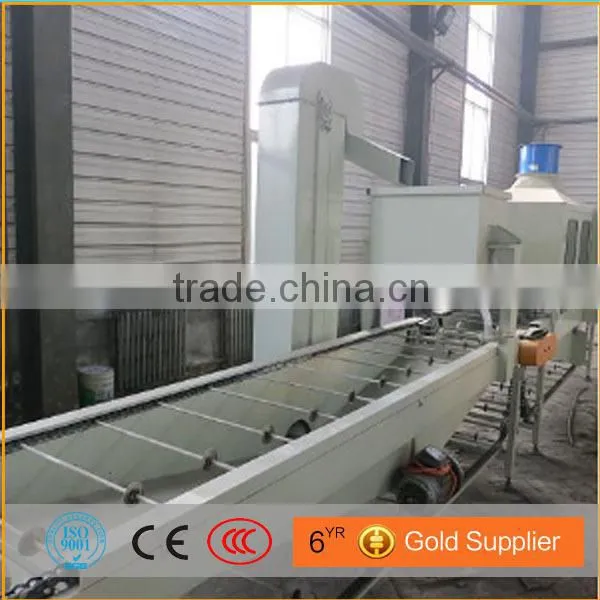

Colourful Stone Chip Coated Roof Tile Production Line (Sand Blast Part )

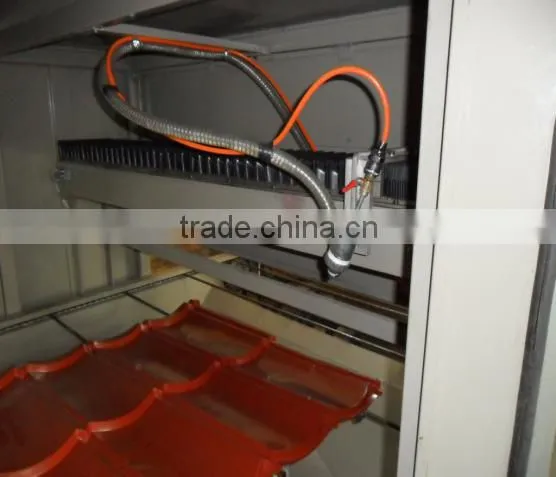

Automatic Bottom Glue Spraying Equipment
Outside Dimension :3000*1850*700mm(L*W*H) |
Structure:Channel steel ,angle steel ,welded |
Transmission:With glue spraying equipment compound chain transmit |
Conveying device:Compound chain transmit |
Air compressor: 1 set, 18.5kw, air output is 3m³/min |
High-pressure sand suction system: 1 set, sand suction is 1T/hour |
Sand hopper: 1 set, dimension:550*600*500 |
Automatic shaking sand system: one cylinder, the motor with 0.75kw, control: PLC |
First Drying Room
Outside Dimension:4000*1350*850mm(L*W*H) |
Structure:Channel steel ,welded |
Conveying device:Reciprocating chain conveys |
Adsorption of dust removal equipment:1 set |
Air compressor: 1 set, 7.5kw, air output is 1m³/min |
D46 high-pressure airless spraying system 1 set |
Automatic high-pressure airless spraying gun: 1 set |
High-pressure airless manual spraying gun:1 set |
Standard 15M German import high-pressure airless feed tube and it can support the maximum pressure is 20Mpa |
100L stainless charging basket 1 piece |
Automatic Surface Glue Spraying Equipment
Spare parts: Infrared fluorescent tube: 10 pieces, nozzle:2 pieces
Colourful Stone Chip Coated Roof Tile Production Line (Production Sample)

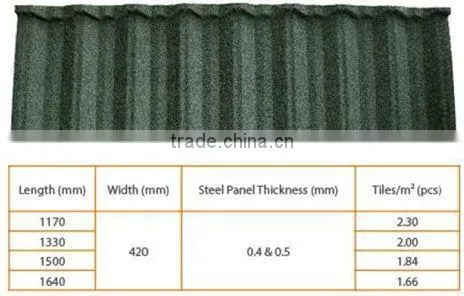

1)Roman type:

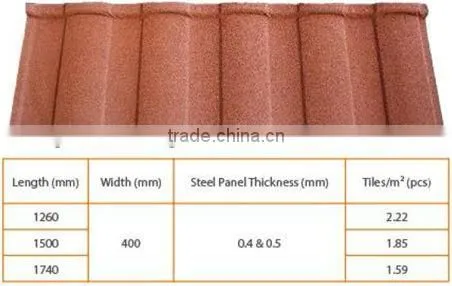

2)Classic type
3)Aspirant type:

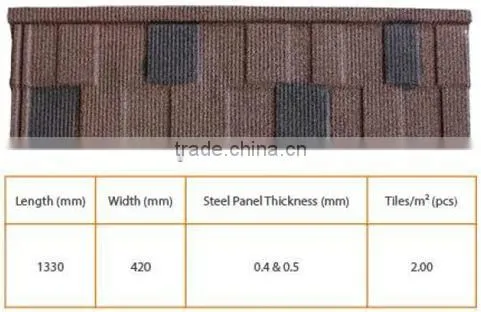

4)Wooden type
5)Flat metal type
3.Advantage of stone coated roof tile:
·Simplicity and lightness,no costly maintenance ·Variety of colors
·Outstand durability,fire proof,water proof,low temperature resistance,corrosion resistat
·High economic efficiency ·Easy installation.
·Drying technology make color never fade.
We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China.
Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for
the machine that you are going to book with us
Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details For the slitting
line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line) For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range,
width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing) For the HVAC machine and
the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe Pls also provide
us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of
the machine before shipping. Considering that the buyer usually is not very familiar with the machine
assembling and debugging, so we send the technicians to the buyer`s factory for the installation of the
machine provided that the Price Term was conclude on ALL IN basis. In additon, We provide all of our
customers with the aftersales-service, its free of charge during the warranty period
Q: What do you mean by the ‘ALL IN PRICE’ as you stated in the quotation file?
A: The ALL IN Price means the quoted price including below items vaule The complete set of Machine
value which covers the spare parts and the moulds if any The machine packing and the container loading
charges The after-sales service charge for 5% of the machine value The charges for the machine installation at your factory,
we send the technician to your factory free of charge The ALL IN Price not including below items The flight
ticket back and forth from China to Your country for our engineer or technician to supply the installation
service at your factory, and the all of the transportation charges outside of China as well The expenses of
hotel room and foods for our engineer or technicians are not included in the ALL IN Price, which shall be
covered by your party The installation needed materials are belong to the buyer self arrangement items,
such as the power supply switch; electrical wire , cable and insulating strung wire piping; air-supply system, air origin Q=0.9stere meters/MIN, P=0.8MPa; gear oil, hydraulic oil; track steel(24kg light track); deep protective barrier.
Q: What is the process for working with the customerized machine?
A: We would encourage you to call or email us so we can explore how we can work together. The order
processing procedure usually could be like follows Inquiry offered by the buyer The sales representative
acquire the detailed machine technical info from the buyer the technical information is sent from the sales
dept. to the technical dept. for studying and work out the machine plan and value the sales representative
get the quotation from the technical dept and send to the buyer the buyer is welcomed to ask for some
amendments on the machine plan according to his best idea the machine plan keep improving until the buyer
is satisfied contract signing and the buyer is requested to make the deposit for 30% of the total value the
contracted machine starts
