Specifications
Welcome to review our roll forming machineworld-class technology
Good looking
Duration
Exporter and manufacturer

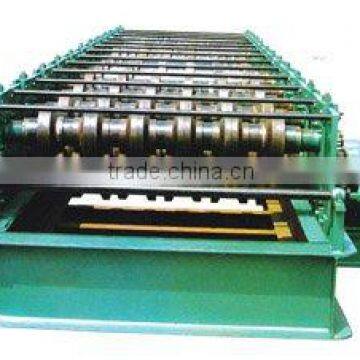

welcome to view metal car board roll forming machine
1.Specification:
Dimensions:
Technical Parameters:
Material Spec: colored steel sheet; galvanized steel sheet
Thickness of Coil Sheet: 0.3-1.2mm
Main Motor Power: 4 kw
Forming Speed: 10-12m/min
Hydraulic Station Power: 3kw
Quantity of Stand: about 14 or 16 stands
Hydraulic Pressure: 10-12mpa
Controlling System: PLC
Index Error of Length: 10m+2mm
Total Weight: about 6 tons
Voltage: 380V 3phase 60 HZ or upon buyer's requirement
Material:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness of 0.05mm
Active shaft material: high grade NO.45 carbon wrought steel at Φ 72mm
Cutting blade: Cr12 mold steel with quenched treatment.
2.Automatic system:(The PLC can be designed according to customers' requirement)
Pump station |
3kw |
PLC |
Panasonnic |
Transducer |
Twiwan"Delta" |
Encoder |
Wuxi's "REP"or "XINYA" |
Switch |
"CHINT" or "DELIXI" |
3.Component:
Uncoiler,platform,main machine body,station,cutting device,pressing device,PLC control |
4.The production process:
Decoiler→Flating→Feeding & punching→Forming→Cut to length→Colletion(finish goods) |
5.Service:
|
We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician. But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $150/days |
6.Payment:
|
T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery ) |
