Home > Products > Shearing machine/Bending Machine > Bending Machine Series

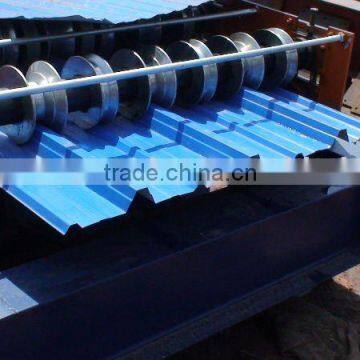

Bending Machine Series

FOB Price

US$ 10,000 - 20,000 / Set

1 Set(Min. Order)

Port Tianjin new port
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	jcx
Model Number	jcx

Product Description

Specifications

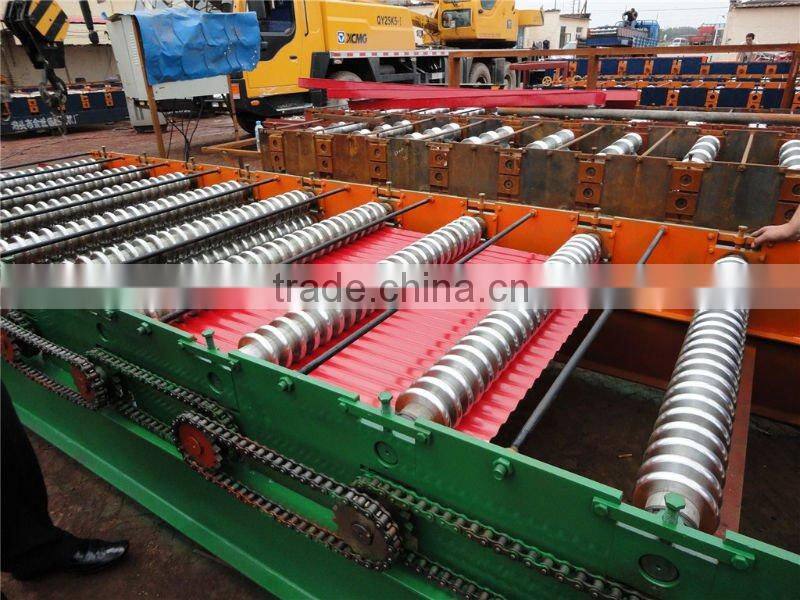

Man-made uncoiler-Roll forming machine-compture control system-hydraulic control system-form cutter

1.Leak frame load-bearing:4T

2. Rack: welding with 300H steel

3. The form of forming machine guiding filling: side skip

4.The form of forming machine: chain drive with wallboard type, the thickness of wallboard is 12mm.

5. Diameter of Shaft is: 72mm

6.Chain: 0.6 inch single row

7. Main motor power:3kw double pole reduction box

8. Forming Speed: 8m/min

9. Number of tracks: 11 tracks

10. Roller material: high grade 45#steel

11 Hydraulic station power: 3kw

12 Hydraulic station oil pump: gearpump

13 Cutting type: hydraulic cut

14 Forming Cutting blade: Cr12

15 Heat treatment on cutting blade: HRC58°-60°

16 Thickness of coil sheet: 0.3-0.8mm

17 Coil width of material: 1000mm

18 Index error of length: ±2mm

19 Controlling system: PLC

20 Voltage: 380V 3phase 60 HZ or at buyer’s requirement

Material of main equipment:

Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.

Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.

Cutting blade: Cr12 mould steel with quenched treatment.

They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
