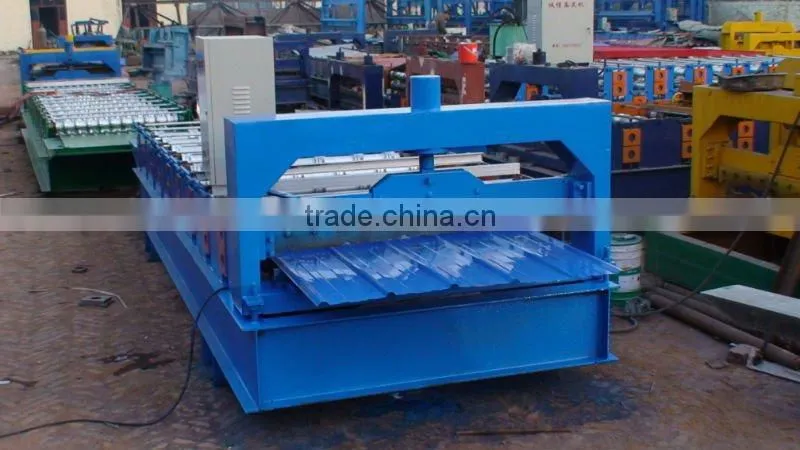

Help CenterColored Steel Roll Forming Machine
Related Products
Specifications
Our products not only saled very well inland, but also very popular in UK, Russia, Nigeria, itally, Croatia, Africa, and so on.(I). Plate model 1
Plate model 1
JCX-23-210-840

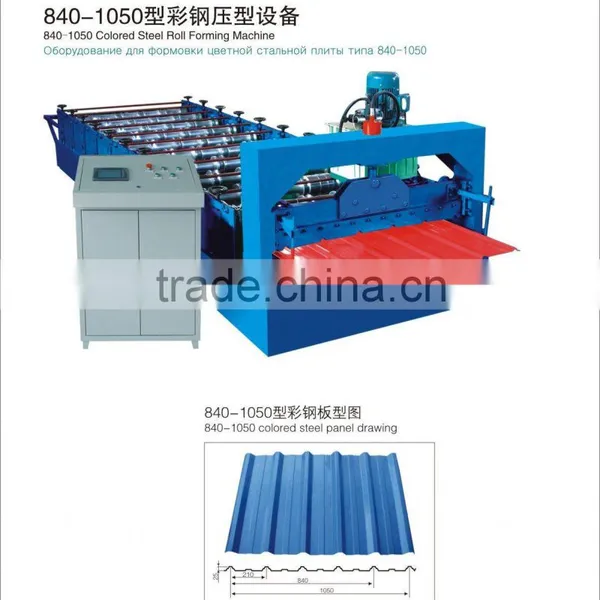

The machine also can produce normal 840 color plates, non-glazed, plate-type picture is as follows.
Cover width |
Coil width |
Wave height |
Wave length |
usage |
840(mm) |
1000(mm) |
23(mm) |
210(mm) |
Glazed steel tile |
The main technical parameters:
1. Passive leak: manual up tight, passive leak
2. Leak rack load: 5T
3. Rack: The wall thickness of 14mm steel welding 300H
4. Forming Machine-driven feeding frame forms: lateral slide-style
5. Forming Machine Type: wall-type chain drive
6. Shaft Diameter: 72 mm solid shaft
7. Chain: 0.6-inch single-row
8. Forming Motor Power: 3KW Speed Reducer
9. Forming Machine speed: 10m/min
10. Forming Machine Road Number: 11
11. Roll Material: high quality 45 # steel Duan playing pieces
12. Hydraulic station motor: 3kw
13. Hydraulic Pump Station: Gear pump
14. Cutting method: hydraulic shear
15. Scissors film forming material: Cr12
16. Shearing blade Heat treatment: HRC58 ° -60 °
17. Rolling thickness :0.3-0 .8 mm
18. Material Expand Width: 1000mm
19. Length Length Accuracy: ± 2mm
20. The computer use of PLC, Japan's Panasonic
