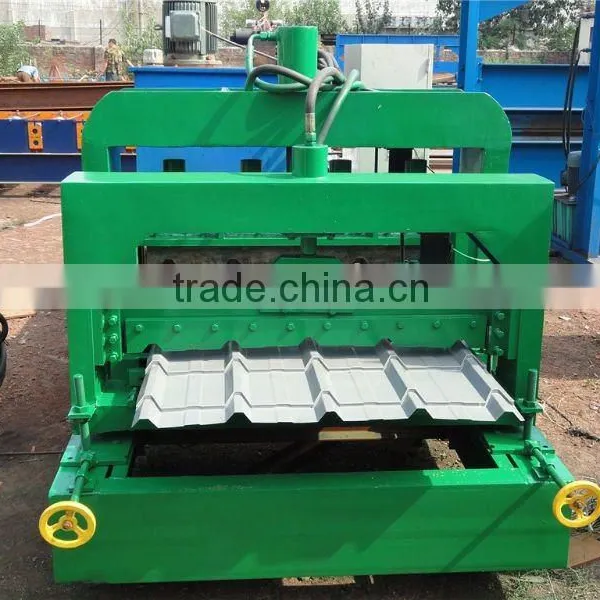

Help CenterCircular Arc Glazed Tile Roll Forming Machine
Related Products
-
Automatic DecoilerUS$ 10,000 - 18,000MOQ: 1 Set -
Hydraulic DecoilerUS$ 10,000 - 18,000MOQ: 1 Set
-
Glazed Metal Sheet Roof Tile Forming MachineUS$ 10,000 - 18,000MOQ: 1 Set
-
Sandwich Panel Roof Producing LineUS$ 25,000 - 45,000MOQ: 1 Set
-
Sandwich Panel Forming MachineUS$ 25,000 - 45,000MOQ: 1 Set
Specifications
Our Glazed Tile Roll Forming Machine has characters of high speed ,high production, good performance, low labor and save cost.The Glazed Tile Roll Forming Machine tecnical parameters:
(1) Suitable material to process: color/galvanized sheet
(2) Thickness of the plate :0.3-1.0mm
(3) Roller: steps: 13 (change as per different machine); material : 45# forged steel, Rolling chromium thickness:0.05 mm
(4) Diameter of active shaft: 70-95mm
(5) Productivity :8-12m/min
(6) Wall thickness of the main forming machine: 12/16/18mm steel plate
(7) Main forming machine body : Groove , H or shape steel (250mm-400mm)
(8) Transmission chain is25.4mm,;
Reducer is 5.5kw, Cycloid which works stably and no noise.
(9) Cutting hydraulic systerm adepts CDF-10 gear pump,the motor power is 4kw, no noise, work stably, long life expectancy.
Cutting tool material: GCr12 with quenched treatment 60-62
(10) PLC control systerm, easy to operate, high precision and work stably.
Note: all the parameters can be changed according to customer’s requirement and different machines.
Our company technical force is abundant. Advanced production equipment and complete detection means perfect. Professional production of various types of pressure-watt machine equipment, and the other development and production of a fully automatic intelligent control pressure-watt machine equipment production line, C-shaped steel, dust collector anode plate and other equipment. In the traditional pressure-watt machine basis, the new computer fully automatic tile press machine production line, roof, wall panel forming machine series, the glazed tile forming machine series, the floor bearing plate forming machine series, high-speed barrier devices, double color steel tile molding machine series.
