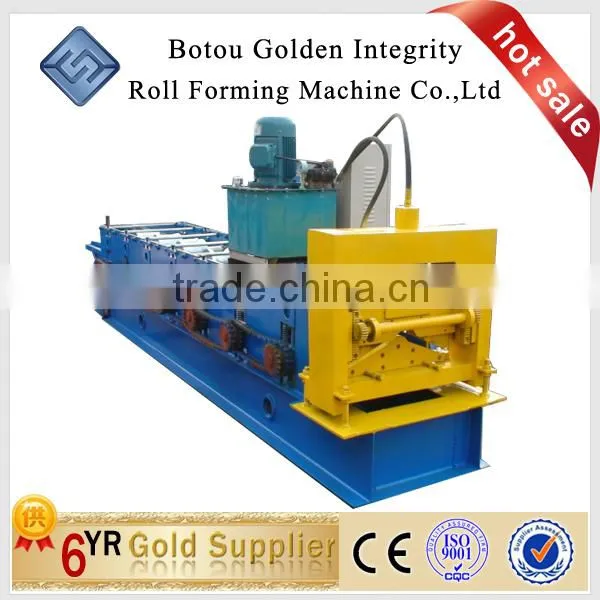

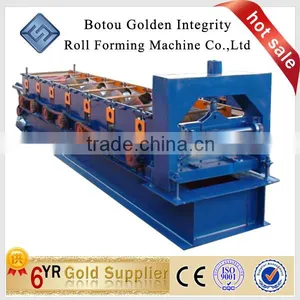

450 Ridge tile Forming Machine for constructiongalvanized roofing sheet roll forming machine
Big promotion in December for New Year and Christmas Day.Ask me for derails.
It is producted continuously as roll forming machine instead using bending
machine to make angel tile saving human resources e
parameters
1.Suitable to process:Colored Steel plate,
galvanized board
2.Width of the plate:500mm
3.Rollers:12rows
GOLDEN INTEGRITY ROLL FORMING MACHINE
Our company specializes on producing cold roll forming machine making roof tiles, wall panels and sandwich panels. The ridge cap/tile machine matching the glazed tile machine will forming the traditional ridge tile which is noble and nice.
live shooting in our production workshop:
Components of line:
NO |
Name |
Unit |
Qty |
1 |
Decoiler |
set |
1 |
2 |
Main machine for roll forming |
set |
1 |
3 |
PLC Control system |
set |
1 |
4 |
Hydraulic system |
set |
1 |
5 |
Automatic shearing machine |
set |
1 |
6 |
automatic control system |
set |
1 |
It is producted continuously as roll forming machine instead
using bending machine to make angel tile saving human resources etc
parameters
1.Suitable to process:Colored Steel plate, galvanized board
2.Width of the plate:500mm
3.Rollers:12rows
4.Rolling material: Forging Steel 45#
5.Rolling galvanization thickness:0.05 mm
6.Material of the cutting blade :Cr12
7.Hydraulic oil :40#
8.Dimensions:6.4*0.9*1.51m
9.Power:4+3kw
10.Thickness of the plate:0.3-1mm
11.Productivity:8-10m/min
12.Diameter of the roller:70mm
13.Weight:About 2.6 T
14.Voltage:380V 50Hz
15.Processing precision : within 1.00mm
16.Transportation:one complete equipment need one 40feet container to hold
17.Orders & Payment Term :30%deposit,and balance before delivery
18.Equipment components: Man-made uncoiler--Roll forming machine--computer
control system,hydraulic control system--cutting
19.Standard components: Chain 1 pc, Hydraulic oil pipes: 2 pcs, electromagnetism
valves 1 pcs. limit switch:2 pcs,counter: 1 pcs relay: 2 pcs
20.This product is widely used in many kinds of industrial factory, civilian buildings,
and wall board for attached part product. It has advantage of pretty appearance, durable using and so on.
It is produced continuously as roll forming machine instead using bending machine to
make angel tile saving human resources, lower labor cost.
About our factory:
At recent years,large of products were sold to Russia, India, England, Australia, America, Kazakhstan, Malaysia,Nigeria, Rumamia and Albania etc,more than 50 countries and regious.our machine has win high reputation .
because of HIGH QUALITY AND REASONABLE PRICE.
Ceritification:
After service:
Loading:
Any questions can contact with me freely.
Paige
Skype: misspaigedu
Mob: +86-18333708952(WhatsApp)
