Home > Products > JCH Roll Forming Machine > Best Join -hedden roll forming machine
Best Join -hedden roll forming machine
- 30 Set / Sets per Month
- TIANJIN XINGANG CHINA
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Glazed |
Use: | Roof | Production Capacity: | 8m--10m /min | Place of Origin: | Hebei, China |
Brand Name: | JCX | Model Number: | 113--90--666 | Power(W): | 3kw |
Voltage: | 380v | Dimension(L*W*H): | 6200mm*1400mm*1500mm | Weight: | 4 tons |
Certification: | TUV | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
JCX-470Join-hedden forming machine1.High Effciency
2,Little error
3,Quality is stable
Our company focus on production and sales of tile press, employ senior technical designers customized for each to come to ordering customers. My company tile press has to the world market platform, received good customer feedback and the second batch of purchase.
Specifications
Hidden roof panel roll forming machine:
1.favorable price;
2. easy to operate ;
3.hight quality;
4.long service time
joint rolling machine manufacturers
Technical Parameter:
1. Profile | 1.1 Feeding width: 1000mm 1.2 Effective width:820mm 1.3 Material thickness: 0.3-0.8mm |
2. Process flow |
Decoiling--feeding---forming---cutting---production
|
3.Manual Decoiler | 3.1 Material coil inner diameter: 450mm-700mm 3.2 Max coil width: 1200mm 3.3 Carrying capacity: 5T
|

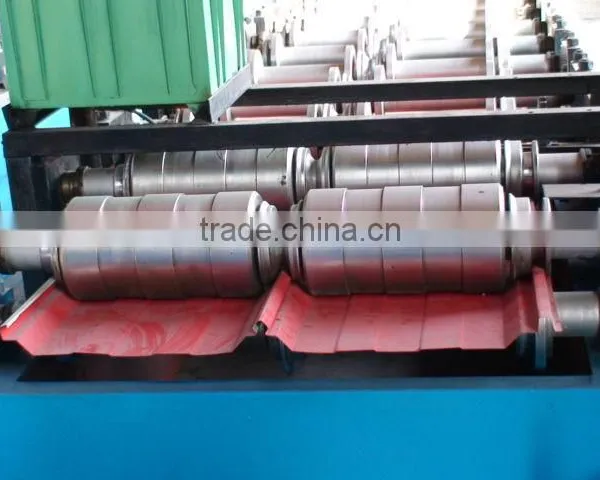

4.Forming Device | 4.1 Number of forming steps:15 steps 4.2 Shaft material: 45# steel with harden treatment, outer diameter 75mm 4.3 Roller material: 45# steel 4.4 Main motor power: 7.5kw 4.5 Forming speed: 8-10m/min(So year production is about 520000 pieces generally) 4.6 Voltage:380V/50Hz/3 phrase |
5.Cutting Device | 5.1 hydraulic cutter 5.2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62°C 5.3 cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.
|
6.Controlling Device | 6.1 screen: 5.7 inch Taida screen from Taiwan 6.2 PLC: Taida DVP14ES from Taiwan 6.3 coder: Japanese Omron E6C2
|
7. Hydraulic | 7.1 Advanced hydraulic system from Taiwan 7.2 Power: 5.5kw
|
8.Simple output frame | simple frame weld bu #8 U bar, 1 pcs of 3m
|
9.Payment and terms |
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
|
10.Warranty | One year, and we will provide the technical support for the whole life. |
11. Packing | Container packing of the line suitable for overseas shipping The subject can be loaded in one 40’ GP container. Packing style: Naked and covered by plastic film, spare parts and some small parts packed in wooden box. |
12.Assemble, train the machine | It is free to assemble and train the machine, but the buyer must pay for the round-trip airplane ticket, and arrange accommodation during that time |
13. Maintain | It is free to maintain the machine the first year after you buying, include changing the main components. The first year hence, you will pay for our technician $50/day to maintain the machine. And its component is not free, if you need to get it from us. (The buyer should supply airplane ticket and accommodation, if he need maintain). |
Welcome to our factory to see more equipment, we will be warm and thoughtful quality products and services await your presence!
Specifications
Hidden roof panel roll forming machine:
1.favorable price;
2. easy to operate ;
3.hight quality;
4.long service time
joint rolling machine manufacturers
Technical Parameter:
1. Profile | 1.1 Feeding width: 1000mm 1.2 Effective width:820mm 1.3 Material thickness: 0.3-0.8mm |
2. Process flow |
Decoiling--feeding---forming---cutting---production
|
3.Manual Decoiler | 3.1 Material coil inner diameter: 450mm-700mm 3.2 Max coil width: 1200mm 3.3 Carrying capacity: 5T
|
4.Forming Device | 4.1 Number of forming steps:15 steps 4.2 Shaft material: 45# steel with harden treatment, outer diameter 75mm 4.3 Roller material: 45# steel 4.4 Main motor power: 7.5kw 4.5 Forming speed: 8-10m/min(So year production is about 520000 pieces generally) 4.6 Voltage:380V/50Hz/3 phrase |
5.Cutting Device | 5.1 hydraulic cutter 5.2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62°C 5.3 cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.
|
6.Controlling Device | 6.1 screen: 5.7 inch Taida screen from Taiwan 6.2 PLC: Taida DVP14ES from Taiwan 6.3 coder: Japanese Omron E6C2
|
7. Hydraulic | 7.1 Advanced hydraulic system from Taiwan 7.2 Power: 5.5kw
|
8.Simple output frame | simple frame weld bu #8 U bar, 1 pcs of 3m
|
9.Payment and terms |
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
|
10.Warranty | One year, and we will provide the technical support for the whole life. |
11. Packing | Container packing of the line suitable for overseas shipping The subject can be loaded in one 40’ GP container. Packing style: Naked and covered by plastic film, spare parts and some small parts packed in wooden box. |
12.Assemble, train the machine | It is free to assemble and train the machine, but the buyer must pay for the round-trip airplane ticket, and arrange accommodation during that time |
13. Maintain | It is free to maintain the machine the first year after you buying, include changing the main components. The first year hence, you will pay for our technician $50/day to maintain the machine. And its component is not free, if you need to get it from us. (The buyer should supply airplane ticket and accommodation, if he need maintain). |
Welcome to our factory to see more equipment, we will be warm and thoughtful quality products and services await your presence!
My company welcome you to come to discuss all the way, your trust is our greatest prestige.
In product sales, we will be ready for new and old customers to unexpected benefits.
Looking forward to receiving your early inquiries !
