Specifications
Wall and panel galvanized roll forming machinewe are manufacture
latest technology
excellent quality

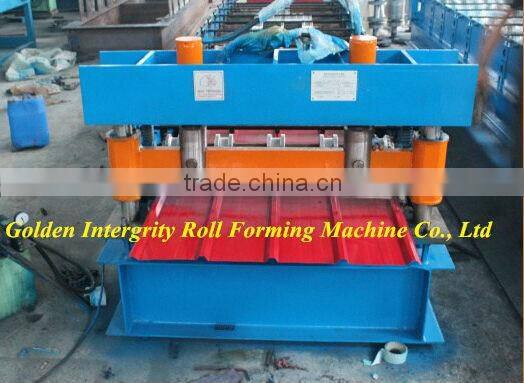

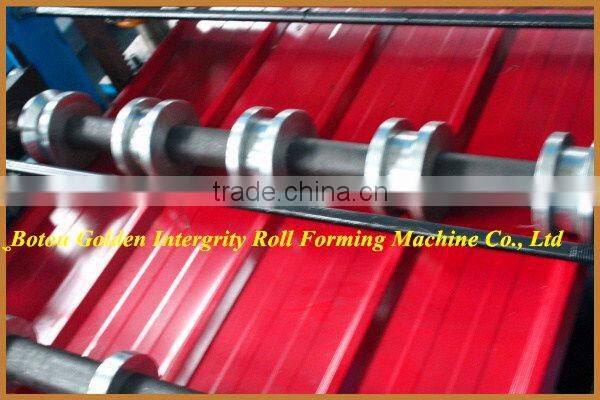

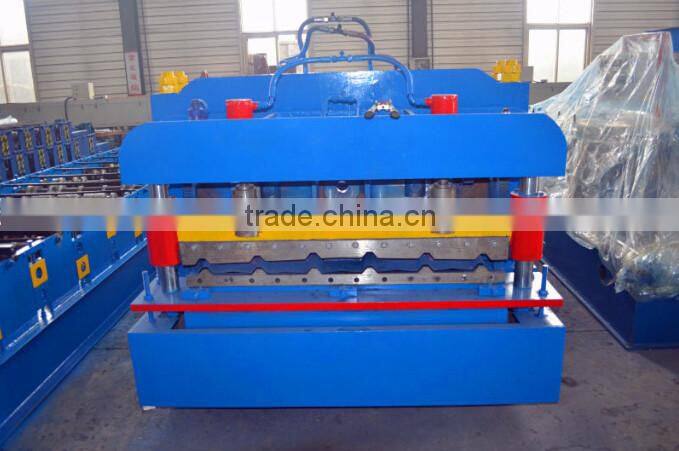

Welcome to view Wall and panel galvanized roll forming machine
Product Details:
Place of Origin | Hebei, China (Mainland) |
|
Brand Name | JCX |
|
Model Number | 23-215-860 |
|
Type | Roll Forming Machine |
|
Tile Type | Colored Steel |
|
Use | Roof |
|
Dimensions | 6500*1500*1500mm |
|
Large frame | 350H steel |
|
Middle plate | 14 mm |
|
Diameter of roller | 72mm |
|
Kind of drive | Driving with 1 inch chain |
|
Rolling wheel | Forging 45# steel |
|
Main power | 3kw with reducer |
|
Pump station | 3kw |
|
Rolling thickness | 0.15-0.8mm |
|
Rolling speed | 8-12m/min |
|
Minimum Order Quantity: | 1 Set/Sets nothing | |
Port: | Tianjin new port | |
Packaging Details: | Put it in the container or as the client's order | |
Delivery Time: | 30 days after getting advanced payment | |
Payment Terms: | T/T | |
Supply Ability: | 30 Set/Sets per Month nothing |
2.Automatic system
Pump station | 3kw |
PLC | Panasonnic |
Transducer | Twiwan"Delta" |
Encoder | Wuxi's "REP"or "XINYA" |
Switch | "CHINT" or "DELIXI" |
3.Component:
NO | Name | Unit | Qty |
1 | Man-made decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | Control system | set | 1 |
4 | Hydraulic system | set | 1 |
JCX 15-225-900 steel roofing panel making machine
Our customer make house
Loading container
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket,
suitable accommodation and pay the service fee to the technician with $50/days
Our company:
We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China.
We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.
Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details
For the slitting line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line)
For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing)
For the HVAC machine and the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe
Pls also provide us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of the machine before shipping. Considering that the buyer usually is not very familiar with the machine assembling and debugging, so we send the technicians to the buyer`s factory for the installation of the machine provided that the Price Term was conclude on ALL IN basis. In additon, We provide all of our customers with the aftersales-service, its free of charge during the warranty period
Ada yang
weichat:adayang6929
Skype:adayang6929
whatsApp: 0086-15130759266
line ID:roofmachine
Waiting your contact !
