Specifications
Welcome to review our roll forming machinewe are manufacture
latest technology
excellent quality
complete service

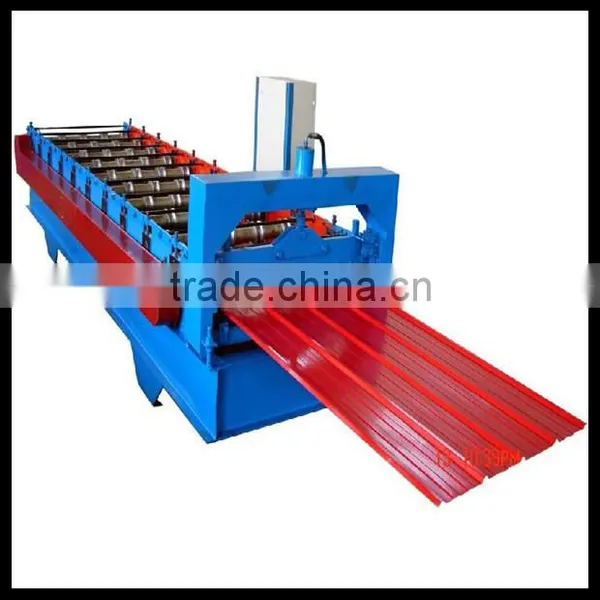

Welcome to view JCX 860 colored steel roll forming machine
according to customers requirements ,costom roll forming machine
Plate picture
1.Specification:
Thickness of coil sheet |
0.15-0.8mm |
Main Motor Power |
3kw |
Forming Speed |
2-3m/min |
Hydraulic station power |
3kw |
Quantity of stand |
about 11 stands |
Hydraulic pressure |
10-12mpa |
controlling system |
PLC |
Index error of length |
10m+2mm |
Total weight |
2.8tons |
Voltage |
380V 3phase 60 HZ or at buyer's requirement |
Processing precision |
Within 1mm |
Suitable to process |
Color steel plate |
Width of the plate |
1000mm |
dimensions |
5.5*1.4*1.5m |
Diameter of the roller |
70mm |
Material of the cutting plate |
Cr12 |
Hydraulic |
40# |
2.Automatic system(The PLC can be designed according to customers' requirement)
Pump station |
3kw |
PLC |
Panasonnic |
Transducer |
Twiwan"Delta" |
Encoder |
Wuxi's "REP"or "XINYA" |
Switch |
"CHINT" or "DELIXI" |
3.Component line
NO |
Name |
Unit |
Qty |
1 |
Man-made decoiler |
set |
1 |
2 |
Main machine for roll forming |
set |
1 |
3 |
Control system |
set |
1 |
4 |
Hydraulic system |
set |
1 |
4.The production process:
Decoiler→Flating→Feeding & punching→Forming→Cut to length→Colletion
(finish goods)
5.Technical specification of every parts
Trapezoid Cold Roll Forming Machine
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
Material of main equipment:
Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
6)One year warranty.
The machine can make Aluminum coil,steel coil
5.Service:
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket,
suitable accommodation and pay the service fee to the technician with $150/days
6.Payment:
T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery )
7.Our certification
Our company
We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China.
We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.
Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details
For the slitting line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line)
For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing)
For the HVAC machine and the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe
Pls also provide us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of the machine before shipping. Considering that the buyer usually is not very familiar with the machine assembling and debugging, so we send the technicians to the buyer`s factory for the installation of the machine provided that the Price Term was conclude on ALL IN basis. In additon, We provide all of our customers with the aftersales-service, its free of charge during the warranty period
