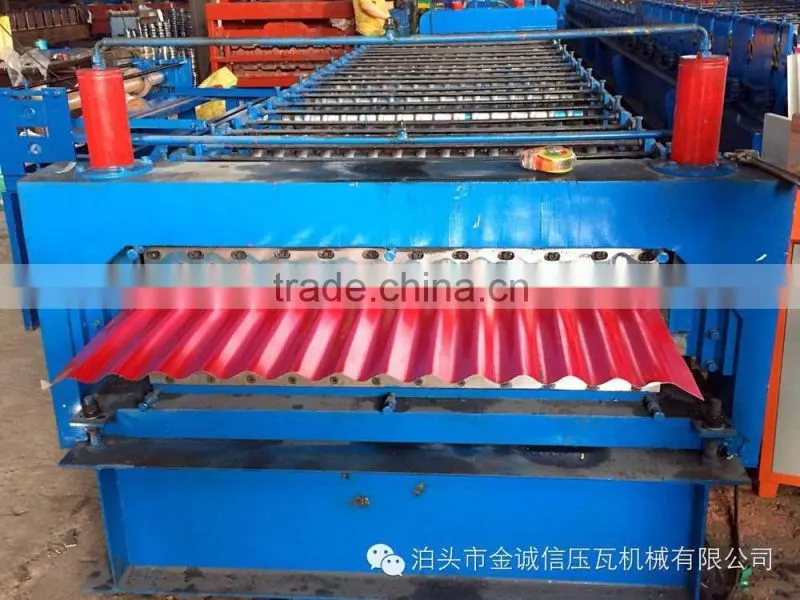

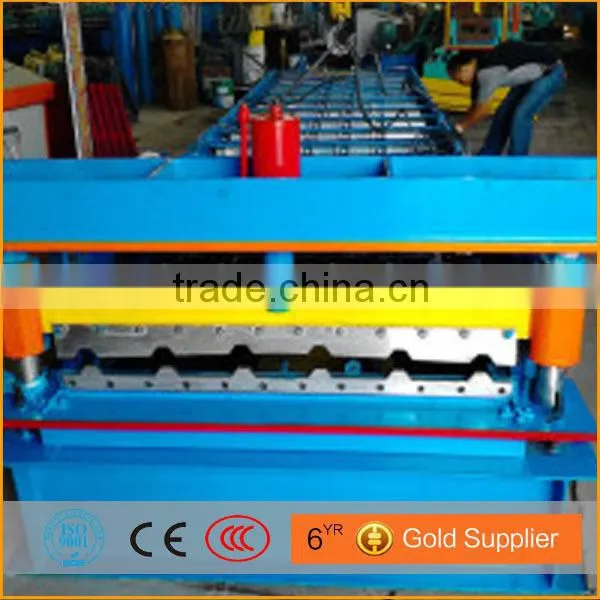

roof sheet roll forming machine ,
1, Machine specification
No. |
Item |
Description |
1 |
Coil |
Width:1000mm |
2 |
Forming speed |
8-15 m/min (not including cutting time) |
3 |

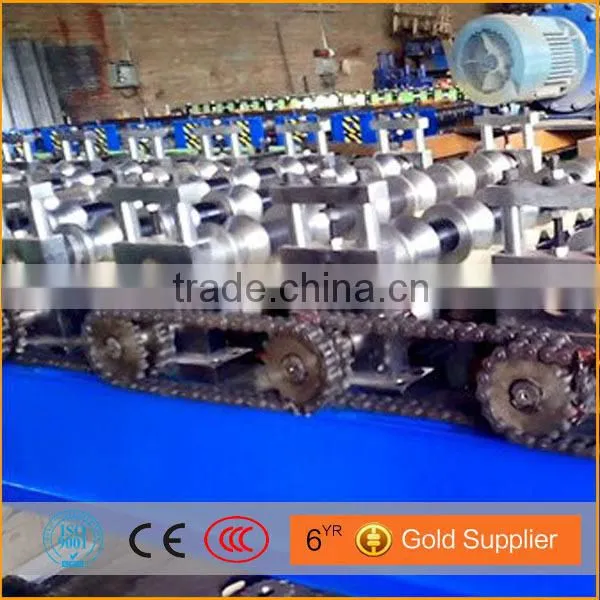

Roller Stations |
13 satations(or as customer request) |
4 |
Material of Roller |
45# steel finish machining, plated hard chromium surface |
5 |
Material of Main Shaft |
45# steel finishing machining and then slack quench processed |
6 |
Material of Shaft |
70 mm 45#steel forged |
7 |
Driven Motor Power |
5.5KW
|
8 |
Hydraulic Station Power |
3kw |
9 |
Hydraulic Station Pressure |
12.0 Mpa |
10 |
Electrical Control System |
Panasonic PLC |
11 |
Dimension (L*W*H) |
6500mm*1550mm*1500mm |
2, Machine Components
No |
Item |
Qty |
Remark |
1 |
Sheet forming machine |
1 |
|
2 |
5 ton hydraulic decoiler |
1 |
|
3 |
12m automatic stacker |
1 |
|
4 |
Hydraulic station |
1 |
|
5 |
Electric cabinet |
1 |
|
6 |
Safety guarding |
2 |
|
7 |
Operation manual |
2 |
In English |

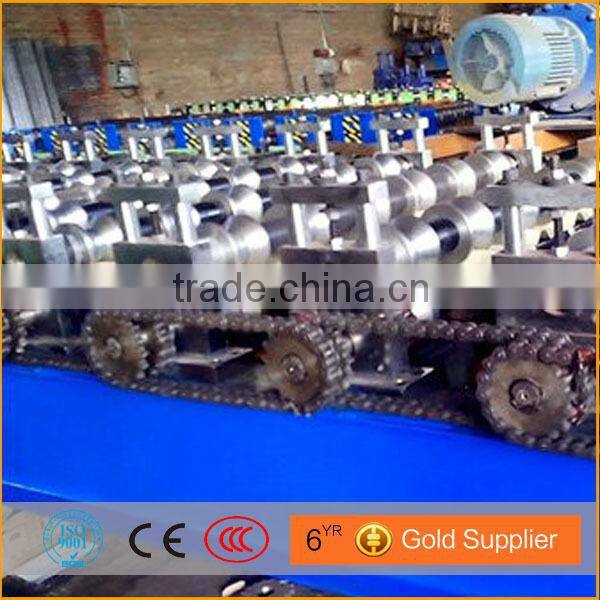

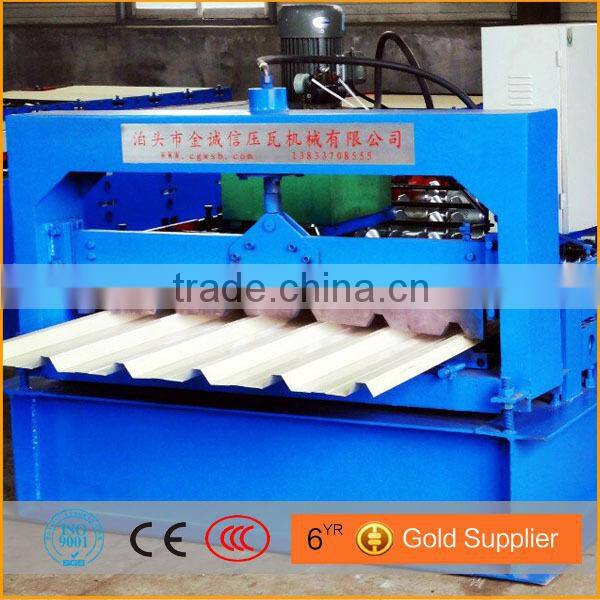

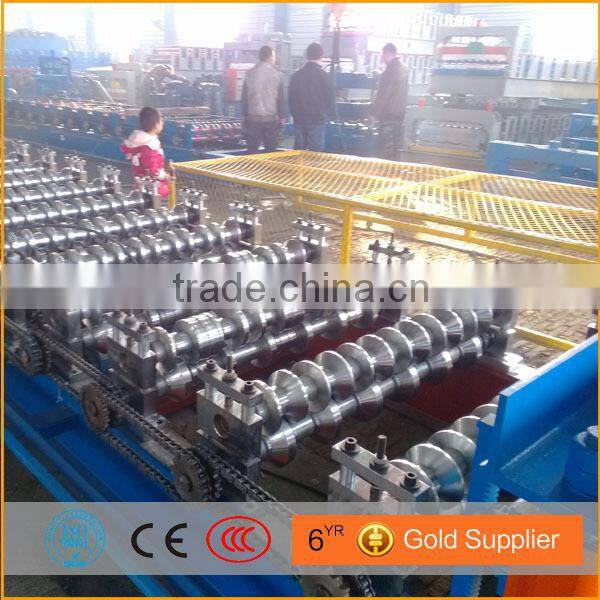

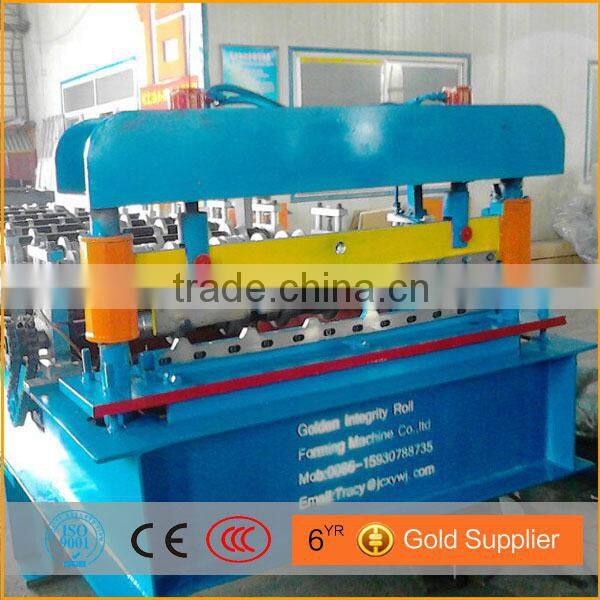

3, machine details

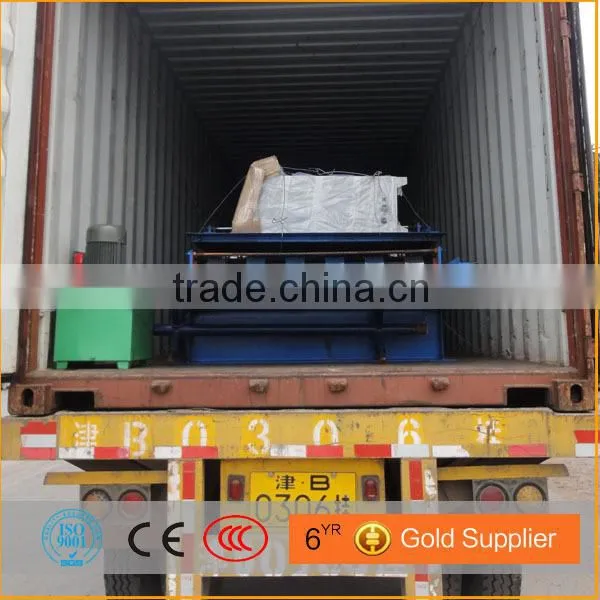

Free packaging for you: Standard export packing: GP container ; main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, control box will be packed with carton box
We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician. But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $50/days
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket,
suitable accommodation and pay the service fee to the technician with $50/days
Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details
For the slitting line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line)
For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing)
For the HVAC machine and the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe
Pls also provide us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of the machine before shipping. Considering that the buyer usually is not very familiar with the machine assembling and debugging, so we send the technicians to the buyer`s factory for the installation of the machine provided that the Price Term was conclude on ALL IN basis. In additon, We provide all of our customers with the aftersales-service, its free of charge during the warranty period
