Welcome to view JCX Indian type color coated roll forming machine
according to customers requirements ,customize roll forming machine
1. Commonly Used Drawings
| Wave height | 28.5mm |
| Wave length | 203mm |
| Cover width | 1015mm |
| Coil width | 1220mm |
| Thickness of material plate | 0.25-0.8mm |
We are not only offer customers a wonderful machine for making, but also the abundant experience, precision making, stable automatic manufacture by hydraulic power, hi-tech control system, and our enthusiasm.
2.Machine parameters
Thickness of Forming Sheet: 0.25-0.8 mm.
Forming Speed:10-15 M/min.
Roll Shaft Diameter: 80 mm .
Main Motor:5.5kw
Hydraulic Motor: 4kw
Roll stands: 18 rows
Material of cutting:cr12
Hydraulic:40#
Control system: Panasonic PLC
Dimension:8.5*1.45*1.5
Complete with uncoiler, hydraulic cutting device and including run-out table.
This machine is controlled by computer system with touch screen.
3.Components of the processing line
Manual Decoiler------------------------------1 set(free)
Roll Forming Main Station----------------1 set(customer designed)
Oil Pump----------------------------------------1 set(customer designed)
Control Box-------------------------------------1 set(Panasonic PLC or customer designed)
Simple Receiving Table--------------------2 sets(free)
4.Working Process
5.Pictures Show
<1>. Manual un-coiler
2) Feeding device:

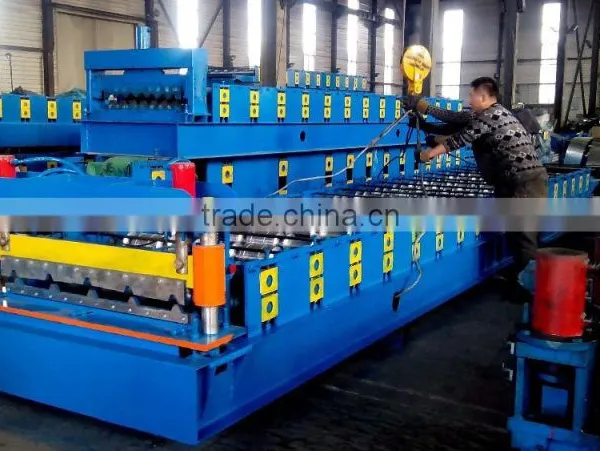

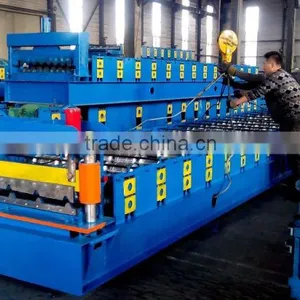

3)photo of machine
4) Electric control system:
5.Hydraulic system
6. Our Advantage
7.Packing&Shipping
8. Customer Feedback
12.FAQ
♣ Payment:T/T,L/C,cash.
♣ Payment terms:EXW,C&F,CIF are available.
♣ warranty:one year,we will provide technical support for the machine.
♣ Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
♣ Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details
For the slitting line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line)
For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing)
♣ Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of the machine before shipping. Considering that the buyer usually is not very familiar with the machine assembling and debugging, so we send the technicians to the buyer`s factory for the installation of the machine provided that the Price Term was conclude on ALL IN basis. In additon, We provide all of our customers with the aftersales-service, its free of charge during the warranty period
