IBR roll forming machine,Customer designed metal forming machine
1. Steel IBR roofing profile drawing
2. Steel IBR roofing profile machine parameters | IBR roll forming machine parameters
A. Components of the machine
Manual decoiler/uncoiler-----------------------one set(free)
Main forming station----------------------------one set
Run-out table---------------------------------------two sets(free)
Controlling Box------------------------------------one set(customer required)
Spare parts-------------------------------------------one box(free)
B. Details of the each component:
♥ Decoiler:

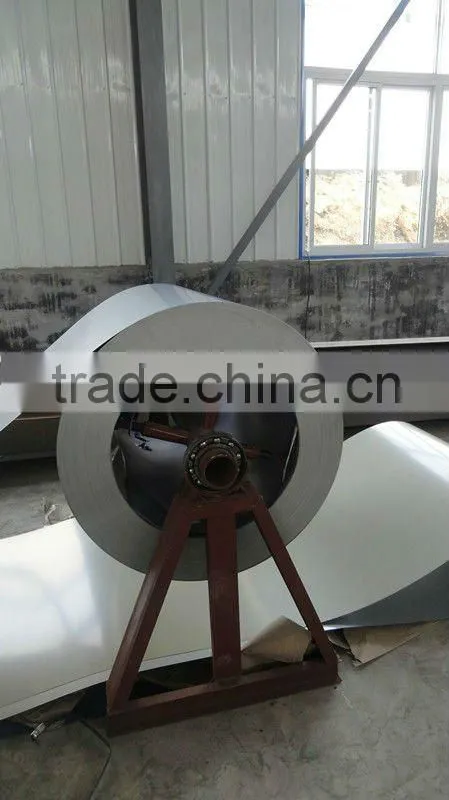

It is used to support the steel coil and realize the uncoiling by means of rotatory movement.The steel coil is uncoiled manually. The capacity of this uncoiler is 5 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.
♥ Main froming station:
1.Forming speed: 8-15m/min(not including the cutting time)
2.Roller stations: 13 passes
3.Material of roller: 45# steel finishing machining, plate hard
4.Shaft material: 70mm 45# steel forged
5.Driven motor power: 5.5kw
6.Hydraulic station power: 4kw
7.Hydraulic station pressure: 12.0Pa
8.Electric control system: Panasonic PLC
9.Dimension: 6500*1500*1200
10.Material of cutter: Gcr12
11.Driving mode: single chain 1 inch
12.Material thickness: 0.3-0.8mm
13.Voltage: 380V 50HZ 3Phase
14.Cutting accurancy: 2mm
♥ Equipment arrange drawing:
♥ Hydraulic system:
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Power of The Pump: 4kw
Hydraulic oil :40#

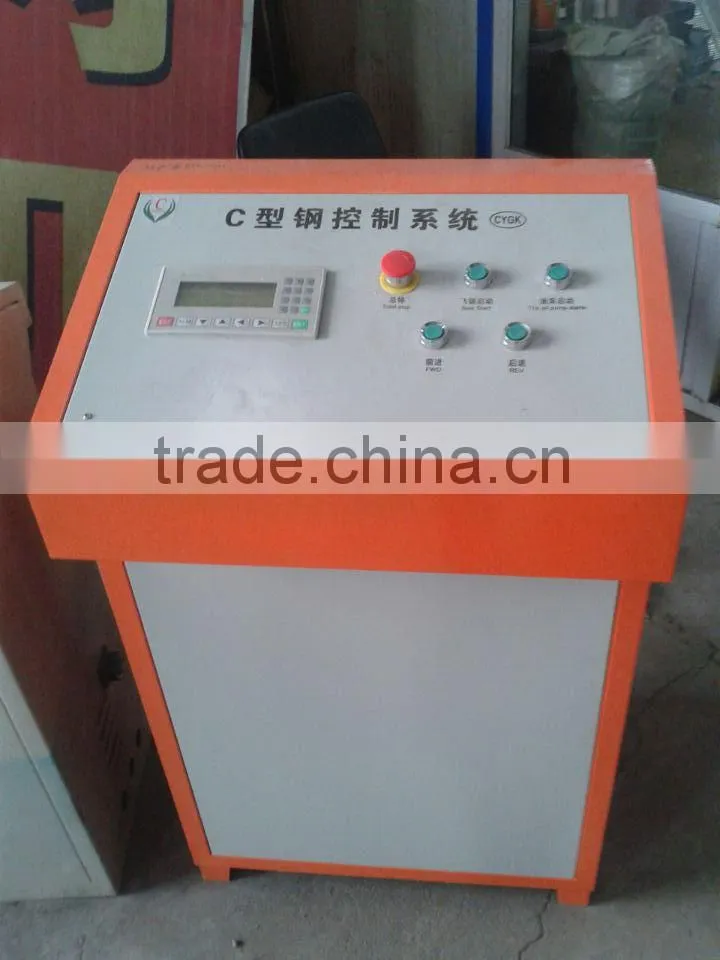

♥ Controlling system:
Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.

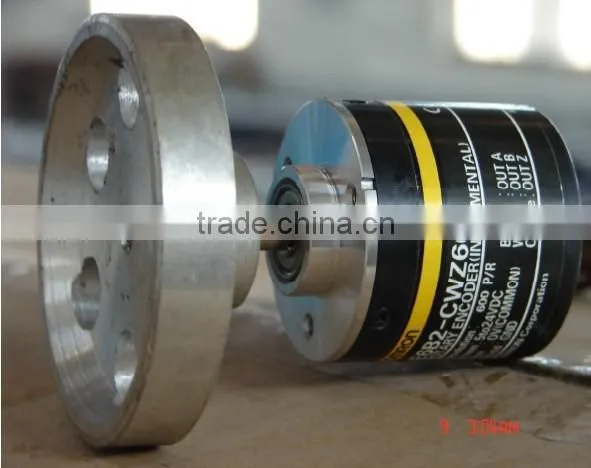

♥ Encoder:
We understand that the encoder is a very important part of the cutting to length system, so we only adopt the best quality from OMRON Japen. And we offer enough matching couplings to make the machine will never shut off due to the encoder problem
