Help Center7.5KW Arc Glazed Tile Roll Forming Machine , 0.15mm-0.8mm Metal Forming Equipment
Related Products
-
IBR Roll Forming Machine , 0.15mm - 0.8mm Roll Forming Equipment Made in ChinaUS$ 9,000 - 13,000MOQ: 1 Set -
South Africa Popular IBR Roll Forming Machine Made in ChinaUS$ 9,000 - 13,000MOQ: 1 Set
-
JCX Automatic Roof Tile Making Machine ManufacturterUS$ 9,000 - 13,000MOQ: 1 Set
-
JCX Galvalume Roof Sheet Roll Forming Machine SupplierUS$ 9,000 - 13,000MOQ: 1 Set
-
840 IBR Trapezoidal Profile Metal Roofing Sheet Cold Roll Forming MachineUS$ 9,000 - 13,000MOQ: 1 Set
Specifications
Welcome to review our roll forming machinewe are manufacture
Customers decide
Saving time and cost
free complete service
Welcome to view CHINA cnc JCX 828 glazed tile colored steel metal roof and wall panel roll forming machine
according to customers requirements ,costom roll forming machine
1.Technical parameters:
| Name | Value |
| Brand | JCX |
| Model | JCX-4KW CNC 828 glazed tile machine |
| Production Capacity | 4-6M/MIN |
| Automatic Grade | FULLY AUTOMATIC |
| Voltage | 220V/380/410/440V |
| Power | 7.5KW depend on different profile |
| Place of Origin | Botou,China |
| Year | 2013 |
| Certification | N/A |
| Dimension(L*W*H) | 12200mm*1650mm*1510mm |
| Weight | 7-9ton |
| Warranty | One year warranty maintenance free life |
Suitable material |
GI,PPGI,AL |
|
Thickness of raw material |
0.15—0.8mm |
|
Yield strength of material |
235-550Mpa |
|
Working Speed |
about 4-6m/min |
|
Step distance |
adjustable according to requirement (>=250mm) |
|
Power Requirement |
Main motor power: |
11Kw (Depend on final design) |
Hydraulic station power: |
11Kw (Depend on final design) |
|
Uncoiler's loading capacity |
Max. Capacity: 5000kgs (can be increased to be 10T) |
|
Controlling system |
Mitsubishi PLC & converter |
|
Machine's size |
about 12200mm*1650mm*1510mm (Depend on final design) |
|
2.Components of line:
NO |
Name |
Unit |
Qty |
1 |
Man-made decoiler |
set |
1 |
2 |
Main machine for roll forming |
set |
1 |
3 |
Control system |
set |
1 |
4 |
Hydraulic system |
set |
1 |
•Noted:all the parameters can be changed as the customer's requirement,and different machine.
specialized manufacturer of roll forming machine,any requests just mail me.
Technical specification of every parts
|
|
|
|

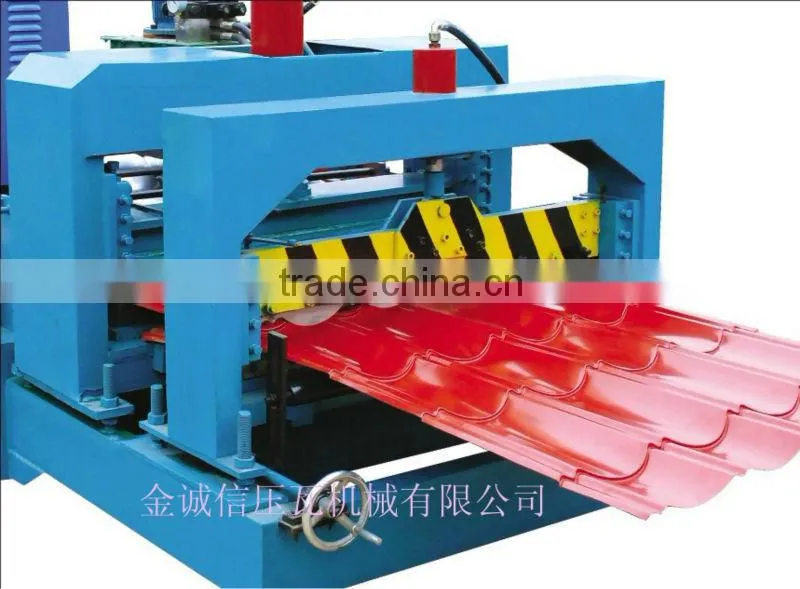

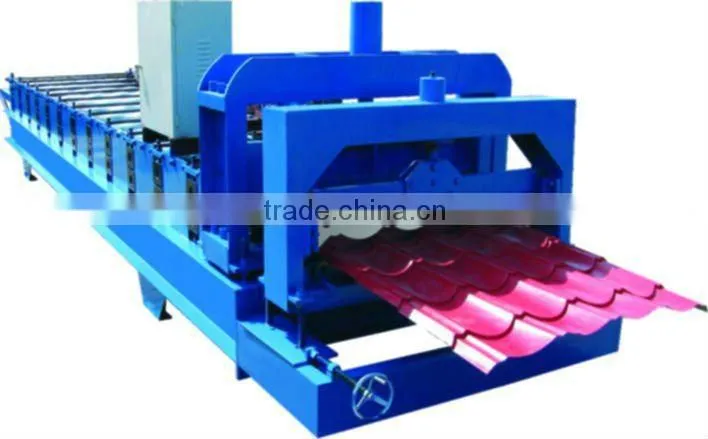

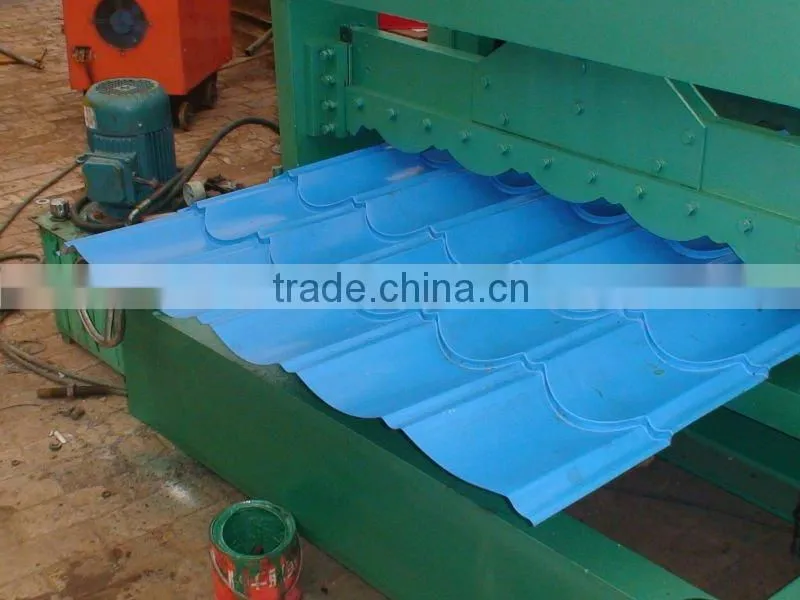

Real photo of machine:
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
Material of main equipment:
Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
6)One year warranty.
Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details
For the slitting line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line)
For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing)
For the HVAC machine and the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe
Pls also provide us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of the machine before shipping. Considering that the buyer usually is not very familiar with the machine assembling and debugging, so we send the technicians to the buyer`s factory for the installation of the machine provided that the Price Term was conclude on ALL IN basis. In additon, We provide all of our customers with the aftersales-service, its free of charge during the warranty period
Q: What do you mean by the ‘ALL IN PRICE’ as you stated in the quotation file?
A: The ALL IN Price means the quoted price including below items vaule
The complete set of Machine value which covers the spare parts and the moulds if any
The machine packing and the container loading charges
The after-sales service charge for 5% of the machine value
The charges for the machine installation at your factory, we send the technician to your factory free of charge
The ALL IN Price not including below items
The flight ticket back and forth from China to Your country for our engineer or technician to supply the installation service at your factory, and the all of the transportation charges outside of China as well
The expenses of hotel room and foods for our engineer or technicians are not included in the ALL IN Price, which shall be covered by your party
The installation needed materials are belong to the buyer self arrangement items, such as the power supply switch; electrical wire , cable and insulating strung wire piping; air-supply system, air origin Q=0.9stere meters/MIN, P=0.8MPa; gear oil, hydraulic oil; track steel(24kg light track); deep protective barrier.
EXELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!
