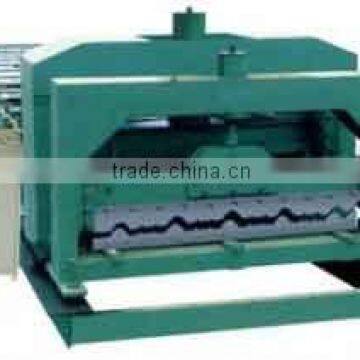

Glazed tile sheet rol forming machine

Specifications

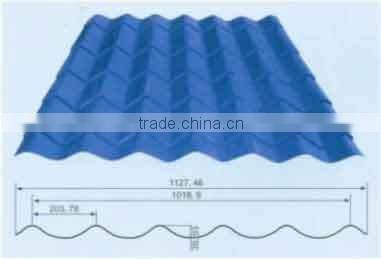

Our roll forming machine can produce different kinds of steel panel tiles for roof and wall. The tiles is mainly used in temporary building site, steel constrcuture workshop,and other public building with fast building speed. It has advantage of pretty appearance, durable using and so on.

The metal sheet cold roll forming of us has characters of high spped ,high production, good performance, low labor and save cost. All the above characters are the best selectons for producing the metal sheet cold rollform products.

The forming rollers is the key of roll forming machine. We use CAD to design and manufacture the rollers. After CNC lathe, the forming rollers will be harden by vacuum heat treatment and finished the profiles again. These processes make the more accurate forming rollers ,avoid the deformation during heat treatment and ensure the rollers’ preciseness and wear-resisting ability

Main Technical Specification:

1. Passive leak: manual up tight, passive leak
2. The bearing of decoiler: 5T
3. Rack: The thickness of  middle plate is 18mm which adopting 350H steel welding
4. The form of Forming Machine-driven feeding frame: sidewise roller

5. Forming Machine Shape: wall-type chain drive

6. Shaft Diameter: 72 mm solid shaft

7. Chain: 0.6 inch single row

8. Forming Machine Motor Reducing Qear drive

9. Forming Machine line speed: 1.5m/min

10. Forming Machine Tracks Number: 11roller

11. Roll Material: bearing steel

12. Roll heat treament : HRC58°-60

13. Hydraulic station motor: 3kw

14. Hydraulic Oil Pump: Tailwan JinYong Gear pump

15. Cutting method: Flying saw cut, mesopore is set freely

16. Flying saw motor : 11KW

17. Rolling thickness :0.3-0,8 mm

18. Accuracy of fixing length: ± 2mm

19. The computer is adopted with PLC, Japan's Panasonic

Note: all the parameters can be changed as per the custumers’ requirement and different machines.

        Components of line:

4. Technical Specification

(1)   Manual decoiler

Un-powered;       single head;

max.capacity:      5000kg;
Coil inner-diameter: 508mm

(2) Roll-Forming M/C:
Steps:13              Roller Material: 45# steel

Voltage:380V/50Hz.    line speed:3-6m/min;

Rolling chromium thickness:0.05 mm

(3) Cutting Mechanism

It adopts hydraulic drive and automatic location to decide the dimention and cut the target products.

Match equipment : one set of cutting tool, one hydraulic tank ,one cutter machine.

Stop to cut , Post cut      cutting length tolerance: ±2mm

Cutting tool material: GCr12 with quenched treatment 60-62°C

(4) Hydraulic System

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

Match equipment: a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.

Power of the oil pump: 3kw    Hydraulic oil :40#

(5)Computer control cabinet :

It adopts Taida PLC to control. The target piece length is adjustable and digit of it can be adjusted

Computed mode has two modes: automatic and manual one.

(6)Counter :

One counter gauges length, pulses, and decides length

(7) Output table

It used to load the forming plate
