Glazed tile roll forming machine

Name: Glazed tile roll forming machine
Brand: JCX
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Type:	Tile Forming Machine	Tile Type:	Colored Glaze	Use:	Roof
Place of Origin:	Hebei, China	Brand Name:	JCX	Model Number:	840

The glazed tile machinery can also produce normal 840 color plates, non-glazed, plate-type picture is as follows.

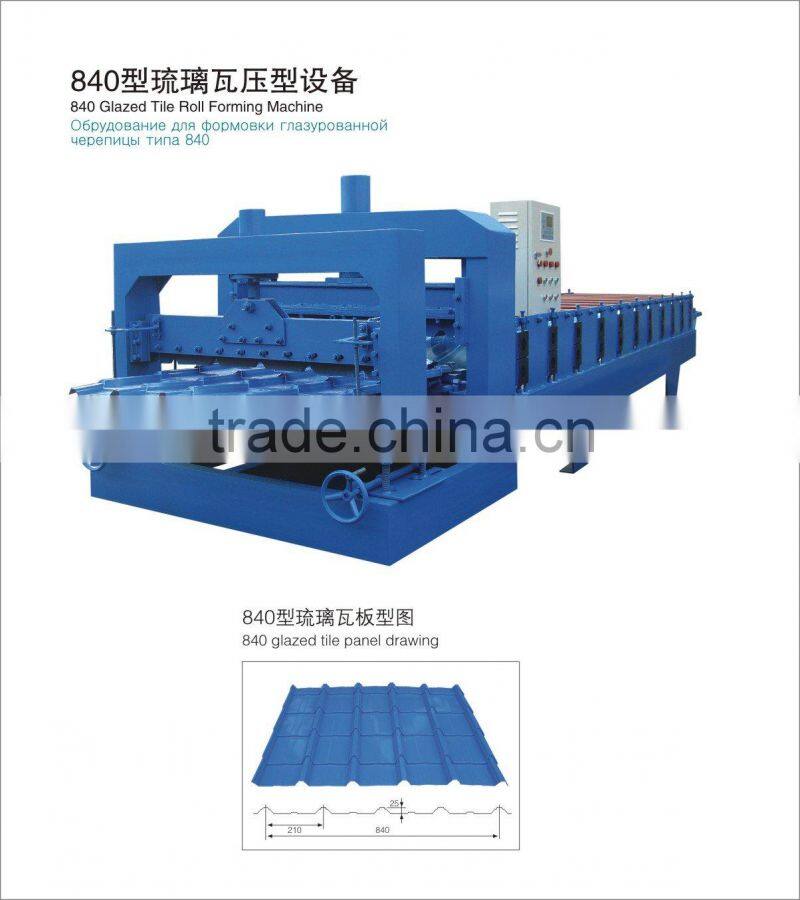

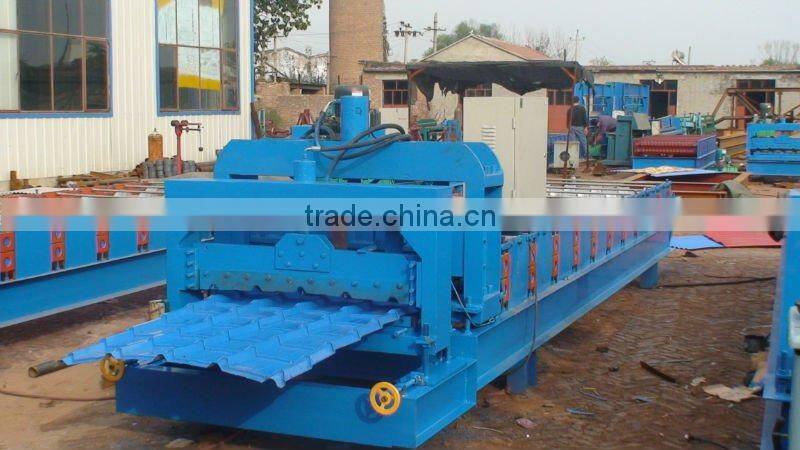

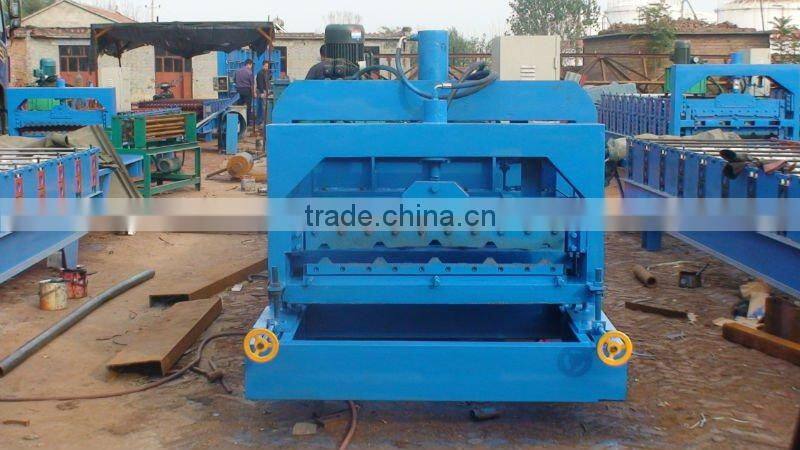

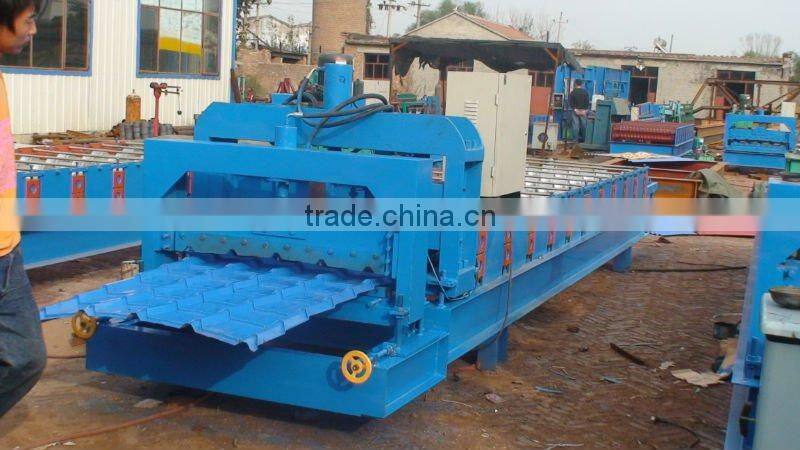

Our glazed tile machinery:

Main technical parameters:

1, host large frame using 300H steel welding.

2, wall-type chain drive, wall thickness of 14mm.

3, shaft: 72mm solid shaft.

4, the host 12, row shaping.

5, the main motor power 4KW.

6, hydraulic station motor power 4kw (large tank).

7, the computer a "Delta" system control error of ± 2mm.

8, pressure-based depth of 12mm.

9 Touch screen control panel.

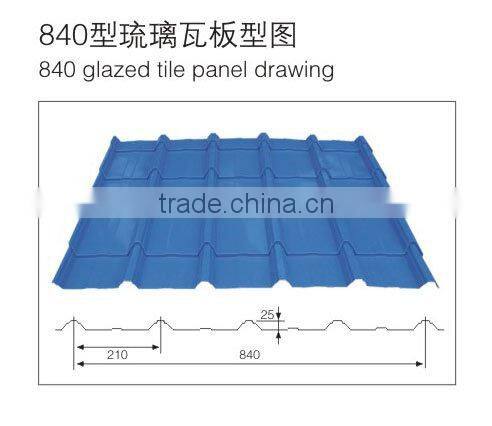

Cover width	Coil width	Wave height	Wave length	usage
840(mm)	1000(mm)	23(mm)	210(mm)	Glazed steel tile

Botou Golden Integrity Roll Forming Machine Co., Ltd.: Contact nameJie Yang; Phone86-317-8269160; AddressDevelopment Area, Botou
